Bourn & Koch CNC Guideless Horizontal Gear shapers , 62" diameter, for External Helical, Herringbone , Double Helical & Spur Gearing on long shafts New 2012

Bourn & Koch CNC Guideless Horizontal Gear shapers , External herringbone
Double Helical open and closed gap , Spur and single helical Gears new 2012

B & K (9-Axis) CNC Guideless horizontal gear shaper

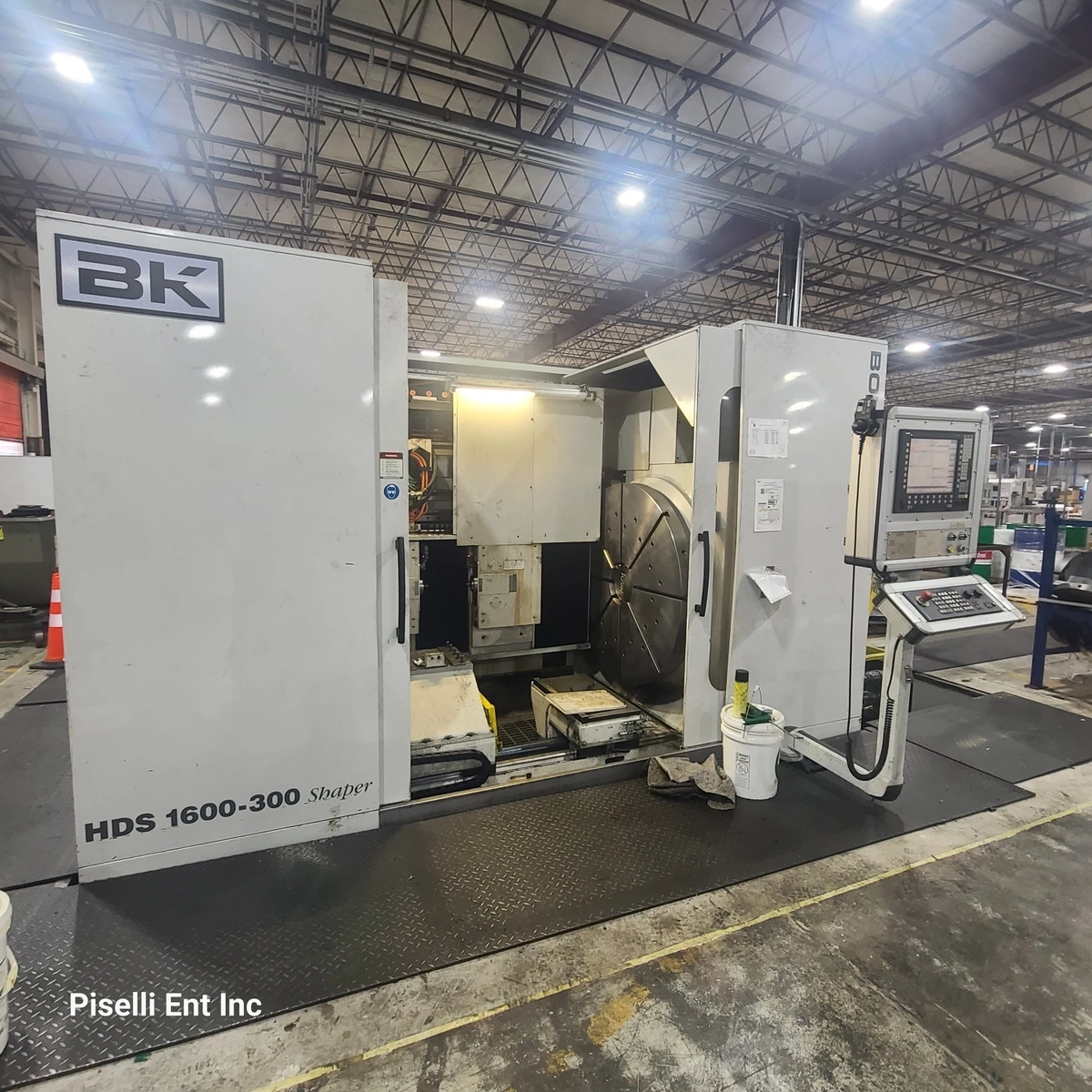

Model HDS 1600/300
s/n 64045
Installed New 2012
"CNC Guideless from 0-40 degrees"

These Heavy Duty machines were designed to MFG herringbone
closed & open Gap gap pump gears & Pinions as well as open gap
double helical Gears, Spur gears, Helical gears , at a cost of
over 1.8 million each

designed using the Siemens 840D CNC Torque motors and Drives
The software allows these machines to cut & manufacture , Spur &
Helical gears, which can be programmed and cut from 0-40 degrees
for both open and closed gap double helical gearing, As well as
single helical, Spur gears , on External Applications. Single Gears
or Multiple gears on shafts of up 104" length with the skip feed feature!
These Machines can be put in pits or floor mounted machines as well

control FEATURES:
SIEMENS 9-AXIS 840 D CNC CONTROLS MOTORS & DRIVES for full GUIDELESS
Angles from 0-40 Degrees by utilizing simple conversational programming

CAPACITIES:
NOMINAL PITCH DIAMETER, EXTERNAL 62.99"
MAXIMUM FACE WIDTH, W/ BOTH HEADS 23.62"
MAXIMUM FACE WIDTH, SINGLE FACE 11.81"
MAXIMUM DIAMETRAL PITCH, SPUR 2 DP
MAXIMUM DIAMETRAL PITCH, HELICAL 2 DP
MINIMUM GEAR PITCH 8 DP
MAXIMUM HELIX ANGLE RANGE (Guideless) 0-40 DEGREES
WORKTABLE DIAMETER 44.09"
WORKTABLE BORE 9.975"
WORK SPINDLE SPEEDS 1-25 RPM
X-AXIS TRAVEL 34"
Z-AXIS TRAVEL 13"
CUTTER SPINDLE STROKING RANGE 12-150 SPM
CUTTER SPINDLE DIAMETER 4.72"
CUTTER PITCH DIAMETER, MAX 8.26"
CUTTER PITCH DIAMETER, MIN 5.9"
CUTTER FIT, MAX 3.54"
CUTTER FIT, MIN 2.755"
MIN CENTER DISt. Cutter table center 4.0"
MAX shaft length head stock to tailstock 104"
OVERALL DIMENSIONS 191" L X 144" W X 132" H
MACHINE WEIGHT 125,000 LBS.

EQUIPPED WITH:
SIEMENS 9-AXIS CNC CONTROL MOTORS & DRIVES
FULL SOFTWARE, User Friendly PROGRAMMING for GEARING
INCH/METRIC OPERATION
CNC Helical , CROWNING, TAPER , skip feed FOR EXTERNAL GEARS
LUBRICATION SYSTEM
CHILLING SYSTEMS for Oil & Hydraulics
COOLANT SYSTEM
CHIP CONVEYOR
FULL ENCLOSURE
FULL MACHINE PLATFORMS
MIST COLLECTOR
TRANSFORMER
BOOKS & MANUALS
Tooling & cutters
Back up software!!

Note: Steel platforms and structure available as well for machine.
if floor mounted, then steel can be used & adapted to mfg platforms
** We also have photos of the machines set up in previous plant location
cutting gears if interested in viewing these , let us know and we can send!!

Machine has been recently removed from customers location . machine
shipping brackets have been installed as well as metal surfaces
preserved with lithium grease as machine Has been moved to a
warehouse location in Tulsa OK.

please contact rich Piselli to inspect these machine in plant
Prior to removal. Visit our website at WWW.PISELLIENT.COM for more
info and photos or email rich at Rich@PiselliEnt.com to discuss package
pricing and removal costs for a formal quote and pricing .
