Liebherr L-901 vertical gear hobber , 36" diameter capacity , 2 DP , 2-cut , crowning , excellent condition excelllent condition !

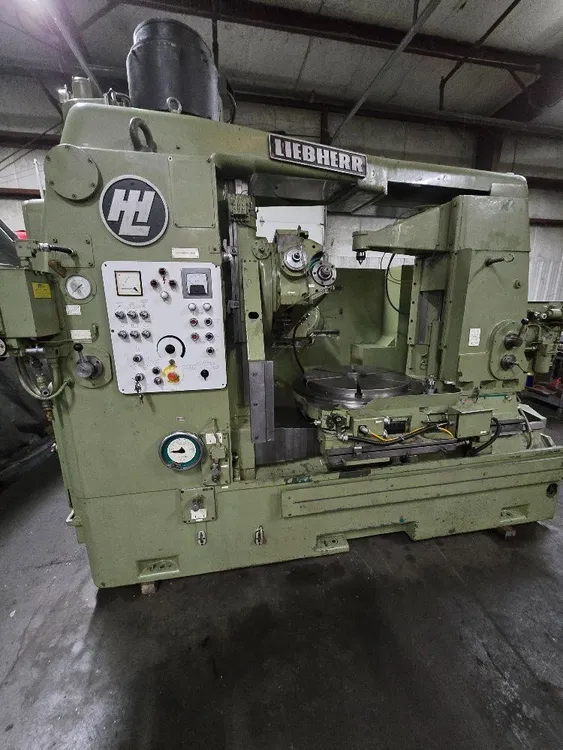

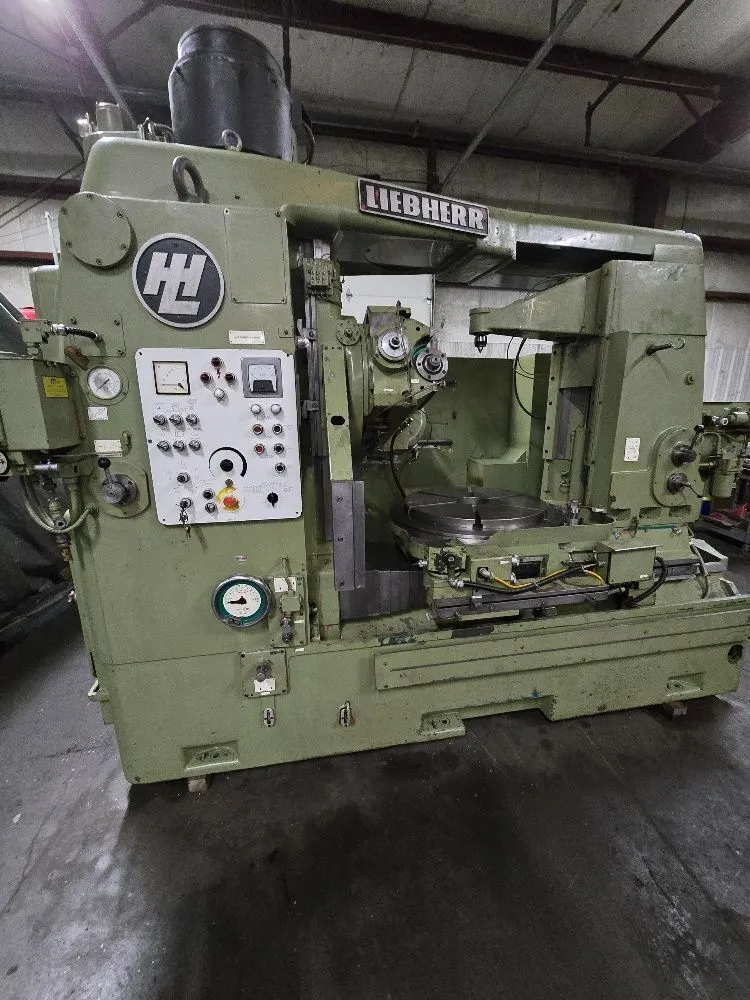

Liebherr Vertical gear hobbing machine
Model L-901
s/n 0913-2
condition : excellent under power

this machine is equipped with all the latest features from Liebherr
it has 2-cut , crowning, tangential, differential and other items
not found in many gear cutting machines and its condition is exceptional

Specifications:

Max Gear Diameter 36”
Module 10
Max Pitch For Hobbing Steel 2.54 DP
Gear Width 14.56”
Rotary Table Size 27.95”
Max Wheel Diameter 35.43”
Work Piece Length 32.28”
Bore Of Work Table 6.29”
Max Hob Diameter 7.56”
Max Hob Length 7.87”
Max Shifting 5.31”
Max Hob Spindle Speed 240 RPM
Hob Turning Speed 30 U/MIN
Main Motor 20 KW
Approximate Weight 35,500 LBS
Overall Dimension 140”L x 85”W x 110”H

Equipped With:

Hob Shift
Hob Arbors
Hyd Table Clamping
Tailstock With Center,
2- Cut cycle
Crowning
Tangential
Differential
Coolant System
Splash Guards,
Chip Conveyor
Enclosure
Change gears
Tooling
manuals

Machine looks to be in excellent condition coming from running service in
customers plant in the southern midwest. Contact rich at Rish@Pisellient.com
to inquire about inspection as well as pricing or a formal quote or go online
at www.piselliEnt.com to see more photos and info or other machines available !

thank you

Richard Piselli
Rich@Pisellient.com
704 -609-0766
