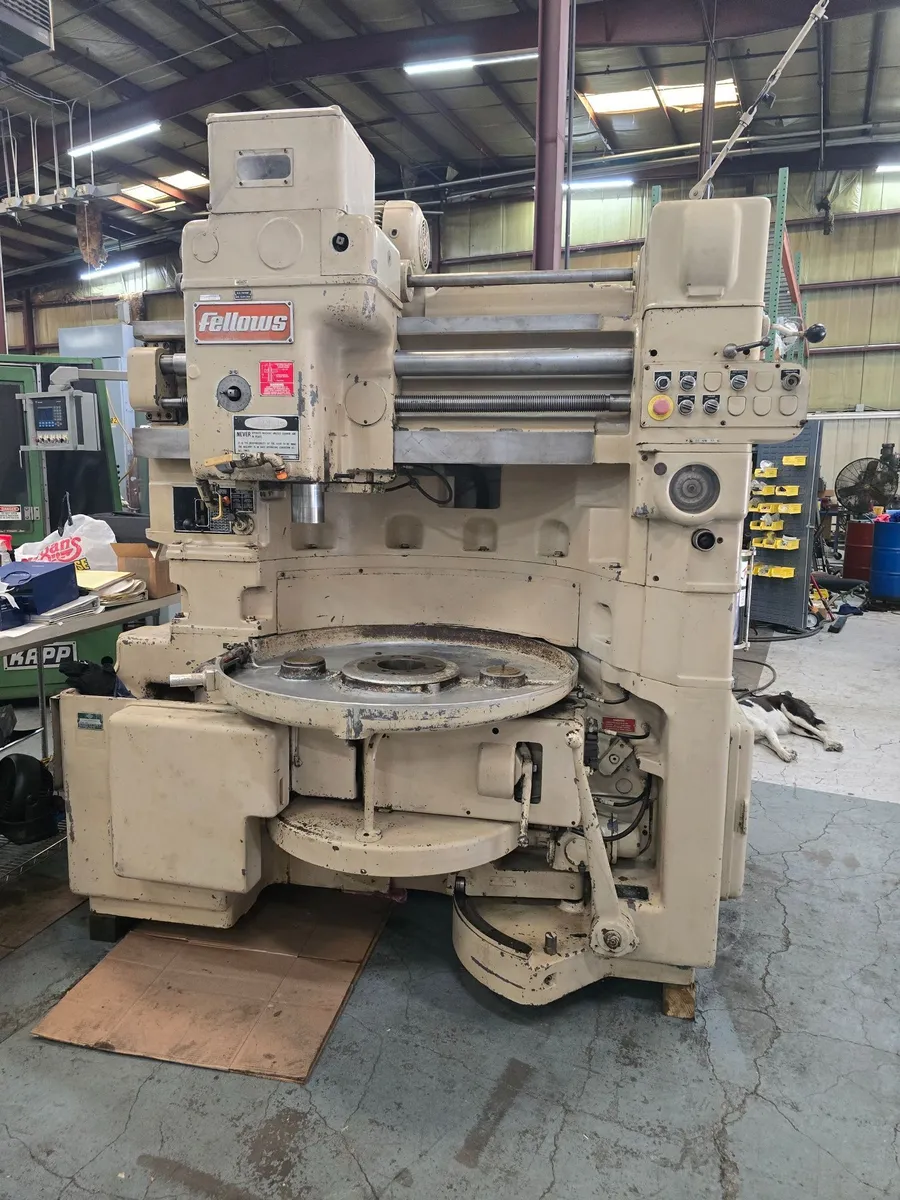

Fellows model 36-6 Gear shaper , 40" diameter capacity w/ 10" riser from aerospace company . s/n 34611

Fellows Gear shaping Machine
Model 36-6, S/N 34611
Equipped with 10" riser

This machine is equipped with a 10" riser w 4" spindle the
machines are capable of shaping both Internal and External
spur gears with present spur Guides. machine is from aerospace

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External........................................40"
* Maximum Pitch Diameter Internal........................................36"
* Maximum Workpiece & Fixture Diameter...................................44"
* Maximum Face Width......................................................6"
* Stroke Length...........................................................6"
* Maximum Helix Angle................................................45 deg
* Maximum Diametral Pitch
-For Spur Gears........................................................3 DP
-For Helical.........................................................4/5 DP
* Work Spindle Bore Diameter..........................................5.875"
* Twelve (12) Stroking Speeds, w/ranges..........................18-300 spm
* Machine Dimensions......................................92" x 60" x 110"H
* Machine Weight, Approx.........................................19,000 Lbs

Machine Is Equipped With:
10" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
updated electrics
books and manuals

Machine can be inspected under power with proper notice. Additional adaptors
can be purchased. Send us your part prints to confirm what you require on
this machine. visit our website at www.PiselliEnt.com to request formal quote
and pricing . Contact rich piselli at Rich@Pisellient.com to set up an inspection
