Gould & Eberhardt Model 48H high column, 32" diameter , 2 DP , Differential, Infeed , excellent condition, inspect under power in our plant

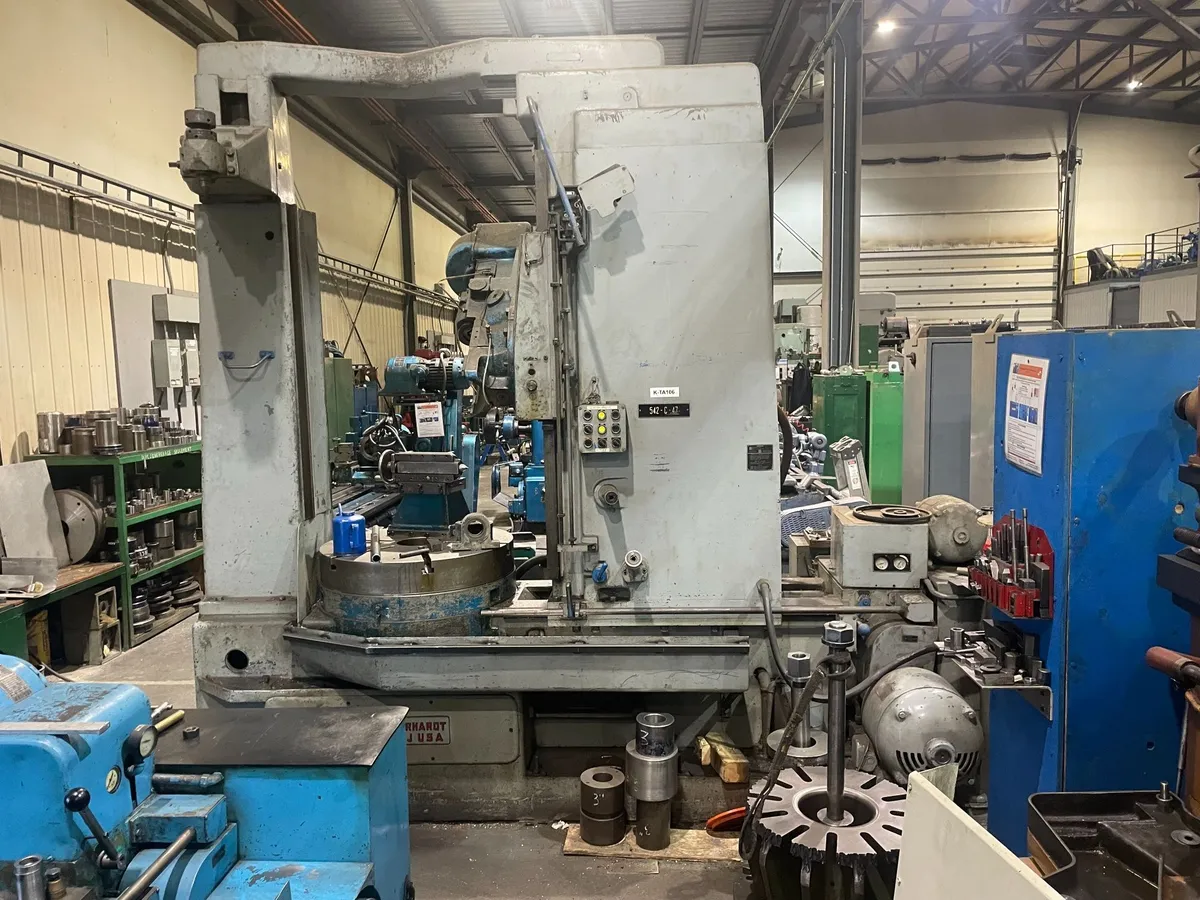

Gould & Eberhardt vertical Gear Hobbing Machine
Model 48H High Column
s/n 6250A4

This Universal G&E High Column Gear hobbing machine is an excellent Job Shop
machine.It is equipped with differential, tailstock and standard Universal
hob head. It is a high column machine for large shafts and pinions with
Extended column travel & features

Machine Specifications are as follows
 *Max Rated Diametral Pitch 2 DP
*Face Capacity-Spur and Pinion Gears 38"
*Face Capacity-45 Deg Helical Gear 34"
*Max Diameter-Spur Gear with Support 32"
*Max Diameter-spur Gear with no Support 34"
*Min Centers Work and Hob Arbors 4"
*Max Diameter Hob 8"
*Max height under the tailstock 54"
*Hob Speed 37-235
*Diameter Work Table 32"
*Diameter work table bore 7.5"
*Net Weight (Full Equipment) 21,925 lbs

MACHINE EQUIPPED WITH:
*Universal Model H Bevel Drive Hob Head
*Special high column machine w/ 38" cut length
*High column tailstock
*Differential
*Infeed
*30/N
*250 teeth in worm wheel
*(1) Hob Arbor
*Change Gears
*Pushbutton Controls
*Tailstock swing away style w/ ty-bar
*Operators Manual

Machine can be inspected under power in good running condition in our
Statesville, NC shop with proper notice. the machine will be gone through
tested and cycled while adjusted as needed . contact us today to set up
your under power inspection . contact rich at Rich@Pisellient.com of call
704 609-0766 for more information about this machine or others in stock!!
