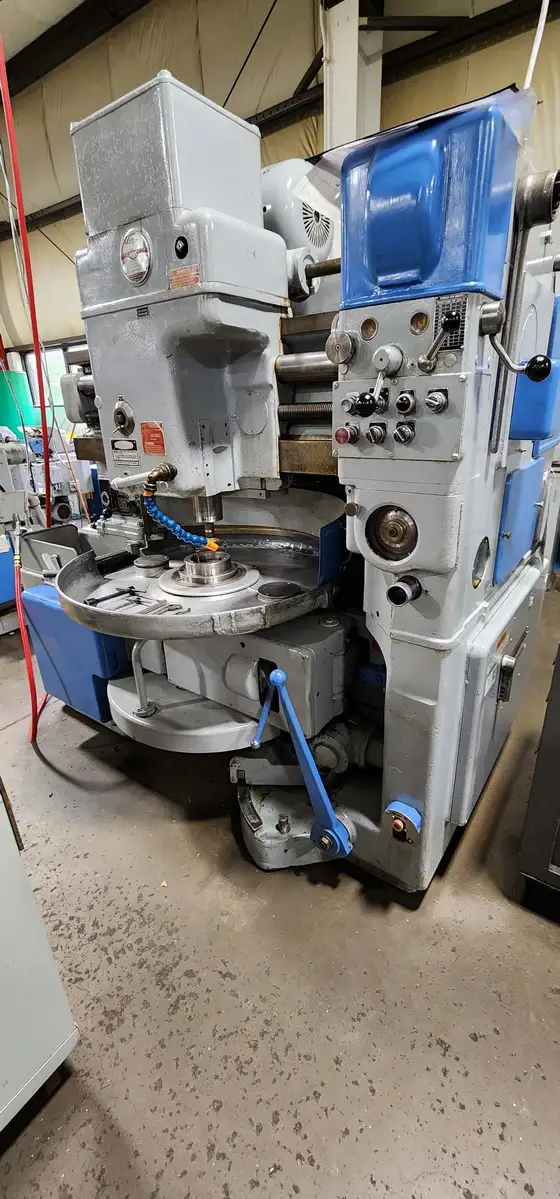

Fellows model 36-6 Gear shaper , 40" diameter , 6" stroke , nice condition , inspect under power in plant s/n 30798
fellows gear shaping machines
model 36-6
s/n 30798
machines coming off shop floor !!!!!
machine is in excellent running condition in NY plant location
machine specs as follows
MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External 40"
* Maximum Pitch Diameter Internal 36"
* Maximum Workpiece & Fixture Diameter 42"
* Maximum Face Width 6"
* Stroke Length 6"
* Maximum Helix Angle w/ proper guide 45 deg
* Maximum Diametral Pitch
-For Spur Gears 3 DP
-For Helical 4/5 DP
* Work Spindle Bore Diameter 5.875"
* Twelve (12) Stroking Speeds, w/ranges 18-300 spm
* Machine Dimensions 92" x 60" x 100"H
* Machine Weight, Approx. 16,000 Lbs
Machine Is Equipped With:
0" Riser Assembly
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter
misc tooling as photographed
operators Manual
Machine can be inspected under power with proper notice. call for
special pre removal prices . special deal prior to removal only
from customers location prior to removal vist www.pisellient.com
and request formal quote and pricing on line or contact Rich Piselli
at Rich@Pisellient.com
thank you !!!
