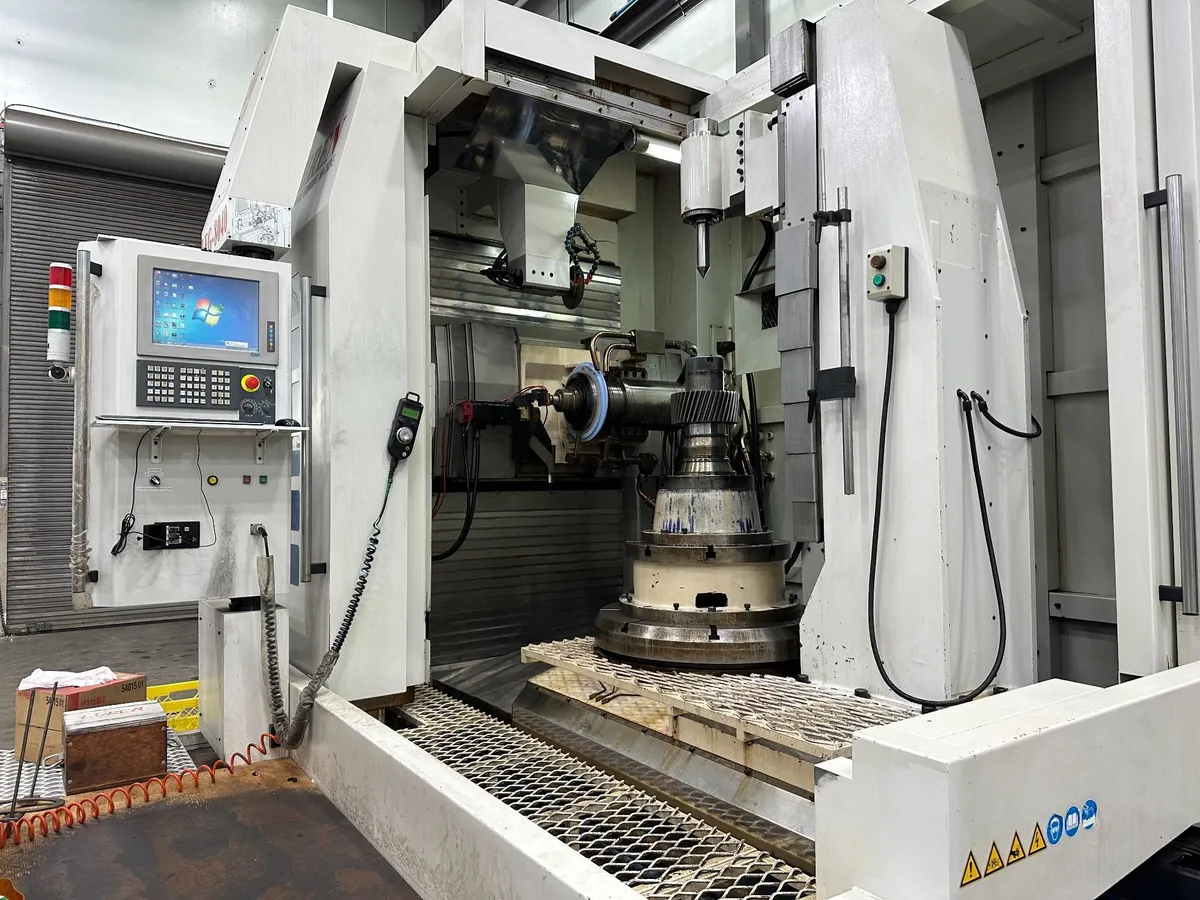

Luren Model LFG-8040 CNC Form Gear grinder with cnc dressing 800mm (31.4") Diameter Fanuc controls , 580mm (22") Max Grinding face, On-Board Inspection, Excellent, delivered in 2013, under power!!!
Luren Vetical CNC Profile Form wheel Gear grinding Machine
Model LFG-8040
MFG Date: 2012 Delivered 2013
Machine Condition: Excellent Mechanical condition
This machine can be inspected under power in our customers facility
Sample test grind is available with demonstration under power
contact us today to discuss the machine purchase
Machine capacities are as follows
Max diameter gear with tailstock in place 800mm / 31.4"
Max diameter w/o tailstock 1000mm/ 40"
Min workpiece Diameter 50mm / 1.9"
Max Modul/ DP M20 / 1.27 DP
Max grinding wheel slide distance 580mm / 22"
Max Grinding wheel diameter 405mm / 15.7"
Min Grinding wheel diameter 260mm / 10.2"
Max grinding spindle speed 4000 RPM
Table Diameter 740mm / 29.1"
Max table load 2500 kg / 5500 lb
Tailstock height above table 1250mm / 49"
machine weight Approx. 37,000 lbs
Machine is equipped with the following
Fanuc 31 cnc controls for 8 axis
CNC dressing unit
On-Board inspection
wheel flanges
tailstock , with swing away center
probe unit
full retractable guarding
filtration unit
chart recording unit
books and manuals
this machine is available for immediate delivery , Inspect under power
it will be loaded from customers facility to warehouse or packers
location if purchased by overseas buyer . machine is late model
and will not last , good size machine and flexible for any job
shop. contact us today if serious about purchasing. special
pre-removal pricing available , see full specs attached visit
www.pisellient.com for more photos and formal quotation
contact Rich Piselli at Rich@Pisellient.com or call his cell at
(704) 609-0766 to inquire further on this machine or set up an
inspection !
