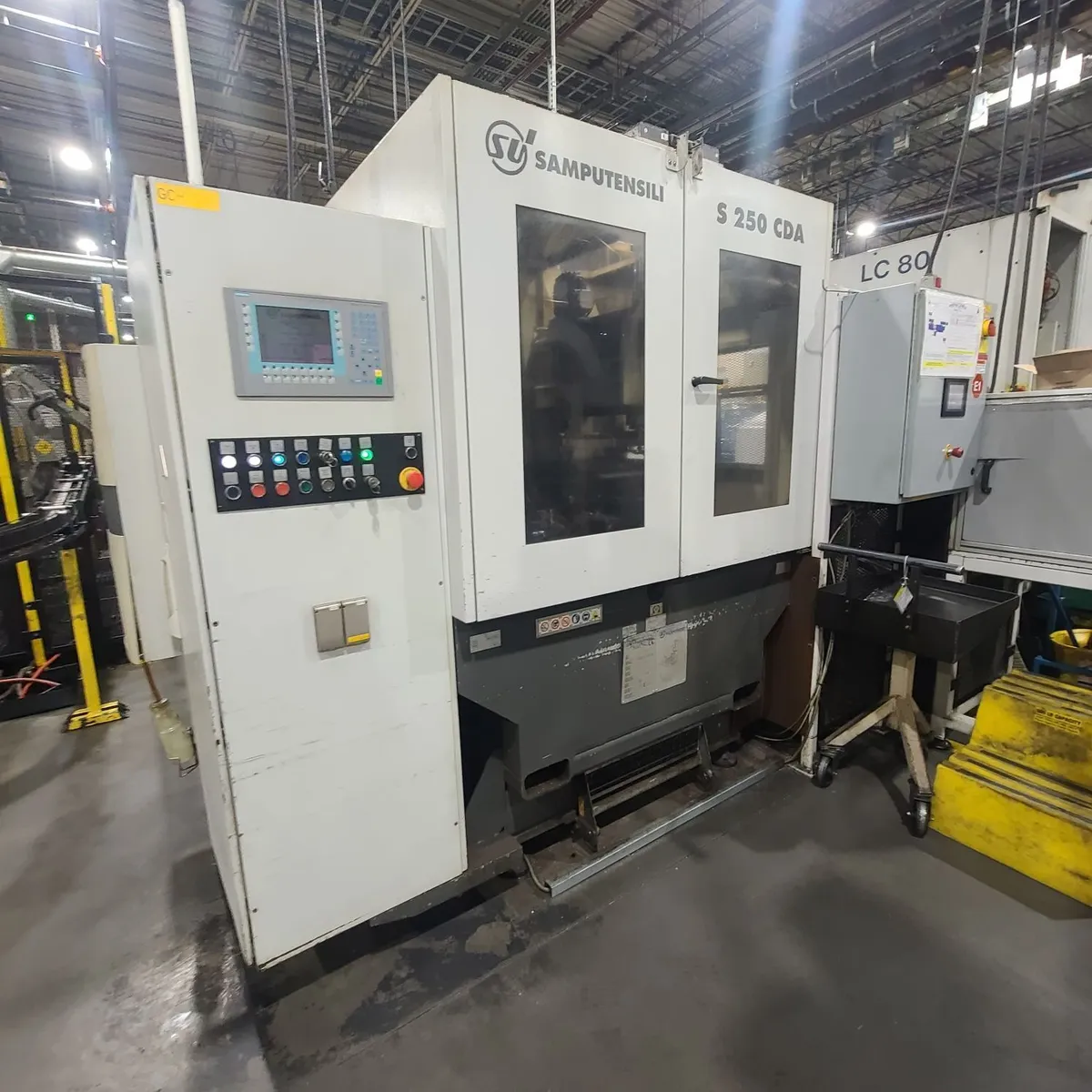

Samputensili SU model S250 CDA Gear deburring / chamferring machine, 10" diameter capacity , deburr done by rolling new 2005

Samputensili - Modul CNC chamfer / deburring machine
Model S 250 CDA-
New 2005/2006
s/n will advise
with Gantry swivel loading system for pick and place

Machine is coming off of a line which produced transmission pinions.
the pinions were put on conveyors and placed into machine By the swivel
gantry loader of the machine. it was then deburred and placed back on
conveyor or on pan. machine uses a rolling tool to remove burrs and
chamfers on gears and shafts

Diameter capacity 10" diameter
shaft length 15"
uses samputensili 1000R tools
machine dimensions 2,20 m X 1.65 m deep
external application
Pick and place automation
PLC controls
quick change tooling
one solution of gears and Shafts
simple stand alone machine for medium lots or mass production
easy integration into existing lines
siemens controls
condition very good

Machine is coming out of shop running gears today.
contact us to learn more about this machine . contact us for
video for additional information
