fellows model 10-2 , 10 " diameter , 2" stroke capacity , just from running service

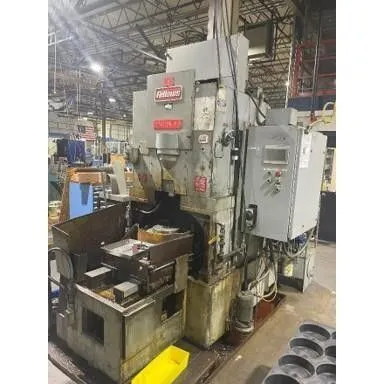

fellows vertical gear shaper
model 10-2
s/n will advise
good mechanical gear shaper

Machines are to be gone through by Piselli Enterprises and delivered in
good working condition contact us regarding the work to be done on
these machines and checked for accuracy.

Machine specifications are as follows:
Max. External & Internal Pitch Dia.......................................10"
Max. Face Width, External.................................................2"
Max. Diametral Pitch, Spur.............................................4 DP
Max. Diametral Pitch, Helical..........................................5 DP
Bore through work spindle.............................................5.875"
Spindle Diameter......................................................3.543"
Distance between work table and cutter spindle...........................10"
Max. Helix Angle with Standard Guides............................45 degrees
Max. OD of Fixture.......................................................19"
Dimensions..............................................119"L x 97"H x 53"D
Approx. weight...................................................11,000 lbs.

MACHINE IS EQUIPPED WITH:
0" Riser
2" Stroke Capacity
Cutter at Top
Hydraulic Tank
1 Cutter Adapter
Misc. Change Gears

Machine can be inspected in excellent condition with proper notice.
Give us a call today for more info and to learn about our refurbishing
program. visit www.pisellient.com or contact rich Piselli at
rich@pisellient.com to request formal quote and pricing
