Mitsubishi model ST40 CNC Guideless vertical gear shaper , 16" diameter , 4.5" stroke , column stroke positioning , new 2000

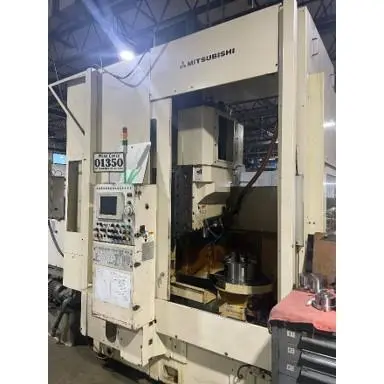

MITSUBISHI GUIDELESS CNC GEAR SHAPER
Model ST40
s/n will advise
Condition; good running condition
Machine installed in 2000

This Machine is a unique guideless CNC vertical Gear Shaper
This machine can be inspected under power with proper notice
in our Statesville NC Plant . contact us to discuss this machine

Machine specifications for follow shortly:
-Maximum diameter capacity 18" / 450 mm Option (TBD)
-Maximum DP/ module 3.175 DP / 8 mod
-Maximum work width 4.52" / 115 mm
-Maximum cutter stroke 5.31" / 135 mm
-Maximum helix angle + 45 deg
-Cutter stroke 30-600 SPM
-number of cuts 1-4
-Center distance from cutter Max/ Min 16.73" / -4.92"
-Maximum radial travel 21.65"
-Height of work table to spindle cutter 11.65" - 23.26"
-Table diameter 20.47"
-cutter spindle OD 4.33"
-saddle stroke length 7.87"
-Main spindle Motor 23 Hp (30 KW)
Machine dimensions 98" x 130" x 124" tall

machine is equipped with additional options to include:
Fanuc controls
guideless cnc cutting feature
z- axis stroke positioning (7.8")
crowning and taper cutting
additional tooling , adaptors etc,
Manuals & documentation

contact us today to set up inspection . deposit required to
hold machine if inspection can not be done immediately.

this is a unique offering of a Guideless Gear Shaping machine.
contact Rich Piselli to set up an inspection and request a formal
quote and pricing. Machine is priced to sell!!
contact rich at Rich@pisellient.com or call (704) 609-0766 for any
further info , pictures or videos required .
