Gleason Pfauter Model P60 cnc auto loading Gear hobber, siemens 840D controls, shuttle loader, w/ hard skiving sensing option , excellent condition 2008
Gleason Pfauter CNC Horizontal Hobber
Model P 60
s/n will advise
New 2008
Condition : Excellent

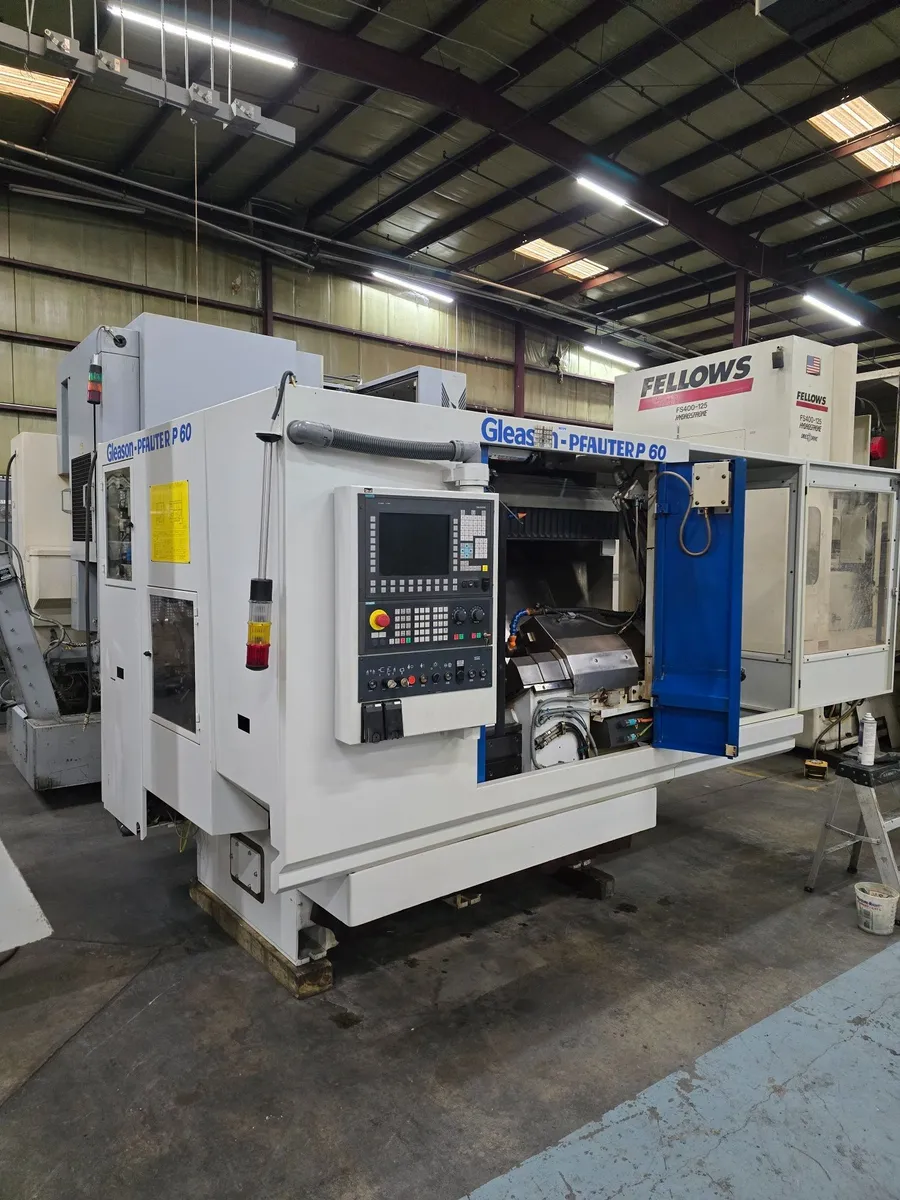

This is a Gleason Pfauter CNC model P 60 cnc Horizontal 7 axis gear
hobber for shafts & Pinions w/ auto loading, with siemens 840D control
Low Hours:-Actual Machine run hours:11,024:15:32
Special autoload cnc gear hobber with conveyor
Hard skiving (Re-hobbing) capabilities
Machine specifications :
Max part cutting diameter 2.36"
Wheel diameter max. 65 mm
Wheel width 140 mm
Modul max. 3 mm
Clamping length 320 mm
Swivel angel max. +45°/-115°
X-Way 80 mm
Y-Way 100 mm
Z-Way 220 mm
Milling speed infinitely variable 300-5000 U/min
Workpiece spindle variable 0-3000 U/min
Total power requirement 12 kW
Machine weight ca. 4.8 ton
Space requirements ca. 3.3 × 3.3 × 2.1 m
power 400 volt 50/60 cycle
load 10 KvA
Machine is equipped with the following
Siemens 840D controller
recut w/ hard skiving option
conveyor style In and Out loading system w/ gantry load & unload
programmable Tailstock & center
full enclosure
chip conveyor
Misc. tooling
Books and manuals
this machine can be inspected in our Statesville NC warehouse with
proper notice. contact us for more detailed specifications or info.
contact Rich Piselli at Rich@Pisellient.com to receive a formal quote
and pricing or to set up an inspection at our location .
sincerely,
Richard Piselli
704 609-0766
