Barber Colman model 16-16 Multicycle 16" diameter cap, C-frame style , lots of features, inquire. very nice machines/n 4519

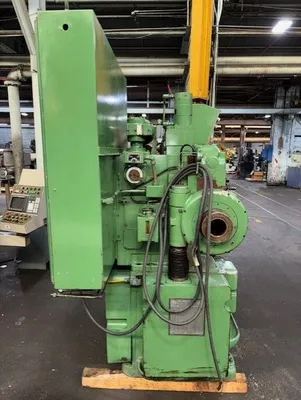

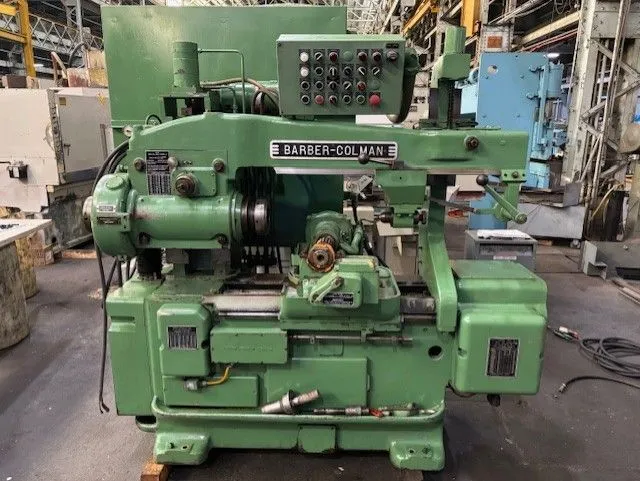

Barber colman horizontal Gear Hobber
MOdel 16-16 Multicycle
s/n 5149
condition : Good

This Barber Colman multi-cycle machine seems to be in good operating
condition . it is a late model c-frame style machine with good options

Machine catalog specifications:
* Max. DP in Steel 6 DP-10 DP
* Max. Work O.D. 16"
* Max. Hob Slide Travel 16"
* Diameter of Hole Through Work Spindle 4-1/8"
* Max. Hob Diameter 5"
* Max. Vertical Adjustment of Work Spindle 8"
* Dist. C/L of Work Spindle to Underside of Overarm 8"
* Dist. C/L of Work Spindle to C/L of Hob Spindle,
Max./Min 8.75"/0.75"
* Dist. Face of Work Spindle to C/L of Hob Spindle,
Max./Min 19.5"/3.5"
* Max dist of shaft from spindle face - tailstock 42"
* Max. Hob Slide Swivel Angle Setting 45 Degrees

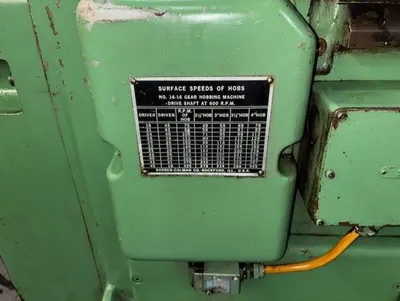

* 9 Hob Speeds (when equipped with suitable gears) 59-246 RPM

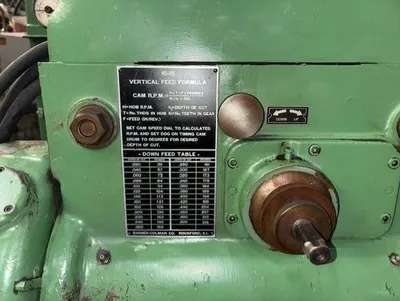

* Hob Feeds (when equipped with suitable gears) .0075-.1125"
* Floor Space (approx.) L x W x H 82" x 38" x 76"
* Weight (approx.) 7500 lbs

Machine Equipped With:
* C-frame style machine w/ timken spindle bearings
* 2-Start index worm and Gear

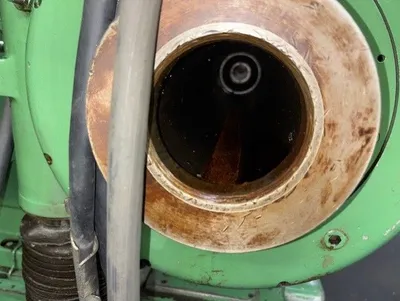

* Large Bore in work spindle (4-1/8")

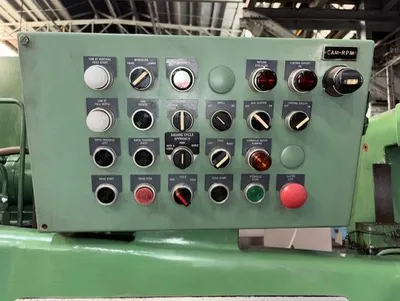

* Automatic cycle control (Downfeed , Square, and Plunge)

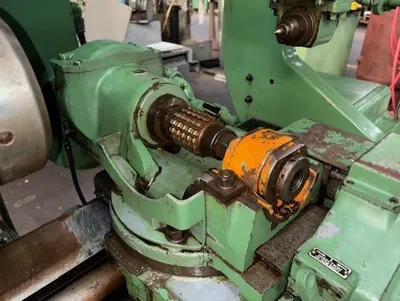

* 1 Hob Arbor
* Hob shift
* Max hob RPM is 425
* Tailstock- special Adjustable style
* Power 460 volt 3/phase
* 25-30 Change Gears
* Manual

Note: Machine can be inspected under power with Proper Notice.
Contact Rich Piselli at Rich@PiselliEnt.com to set up an inspection
or Visit our website at WWW.PiselliEnt.com to view this and other
Gear machinery! Machine is presently located in Harrison NJ location

thank you
Rich Piselli
