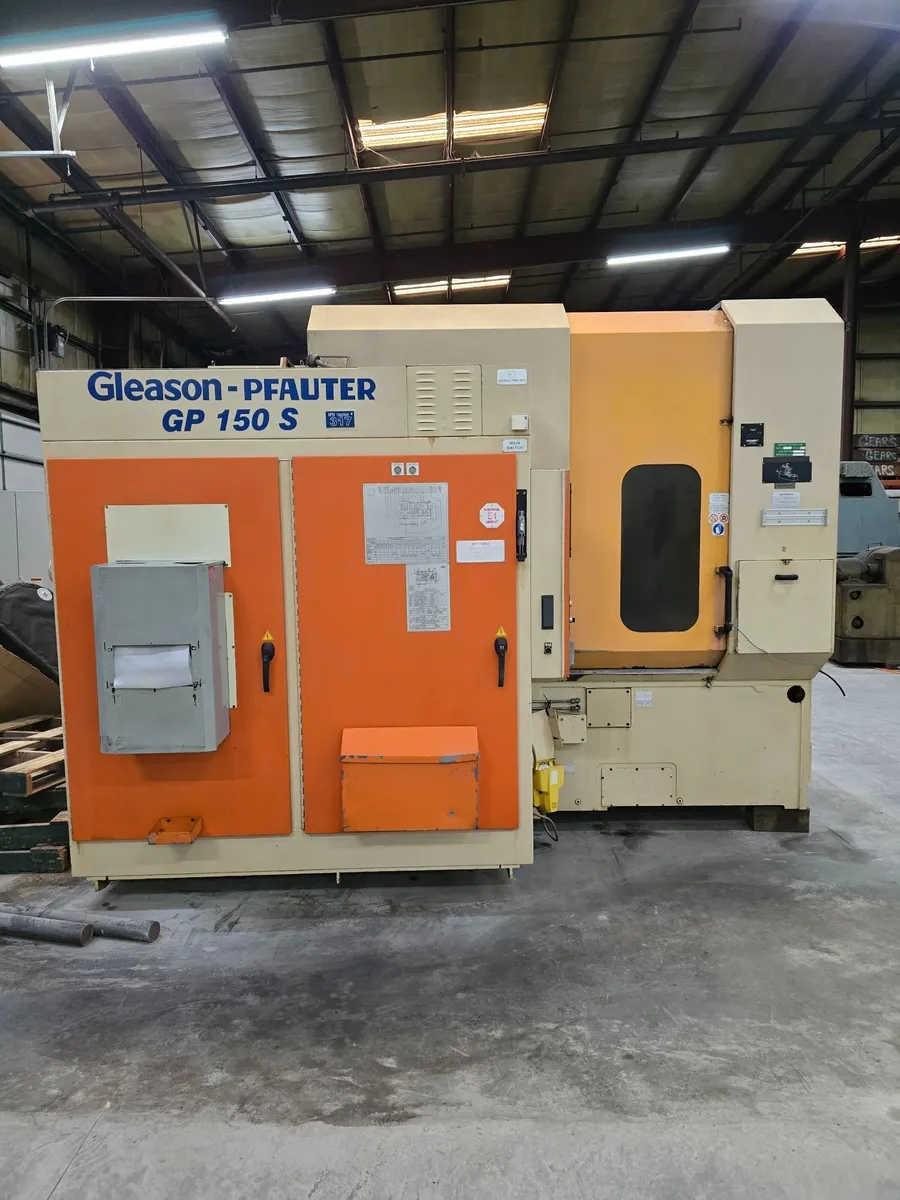

Gleason Pfauter Model GP 150S CNC guideless Gear shaper , with 10" stroke position, 180 loader, new 2005

Gleason Pfauter CNC Guideless Gear Shaper
Model GP-150S
s/n 13272
New 2005
Machine was installed at customers location in 2011

These Gleason Pfauter (GP Series)Gear shaper models are some of the
finest machines ever produced and extremely versatile. Large part swing
Capacity and Extended stroke positioning enabling these machines to cut
a large array different size parts with different configurations.

Machine specifications :
Max workpiece diam for external & Internal Gears 150 mm
Max workpiece swing diameter 400 mm
Max Face width 52 mm
Nominal Module 6.0 mm
Max helical angle w/ cutter diam of 125mm +/- 45 deg
Standard spindle stroke range (A-Axis) 180 - 1800 min.-1
Center dist (cutter spindle - work table (X-axis)) -50/ +200 mm
Axial slide positioning range  (Z-Axis) 250 mm
Max distance from cutter spindle to work table 450 mm
Min distance from cutter spindle to work table 200 mm
column lateral offset +/- 25 mm
Machine floor space 12' W x 14' deep x 9' High
Machine weight 13,000 Kg

Machine is equipped with the following:
Helical Option (guideless cutting option & software)
Siemens 840D controller motors and drives
180 degree style position loader & loading station
Stroke positioning (250mm)
hydraulic clamping
Hyd Tailstock
chip conveyor
full enclosure
misc tooling

Please contact us to inspect machines in our statesville NC plant under
power in very good operating condition. please see our photos to confirm
and review catalog specifications. This machine is a very good machine
for many production requirements with these capacities & added features.
Visit WWW.PiselliEnt.com to view these and other CNC Gear shapers in stock!

contact Rich Piselli at Rich@Pisellient.com to receive a formal price quote
or to set up an under power Inspection with proper notice !!
