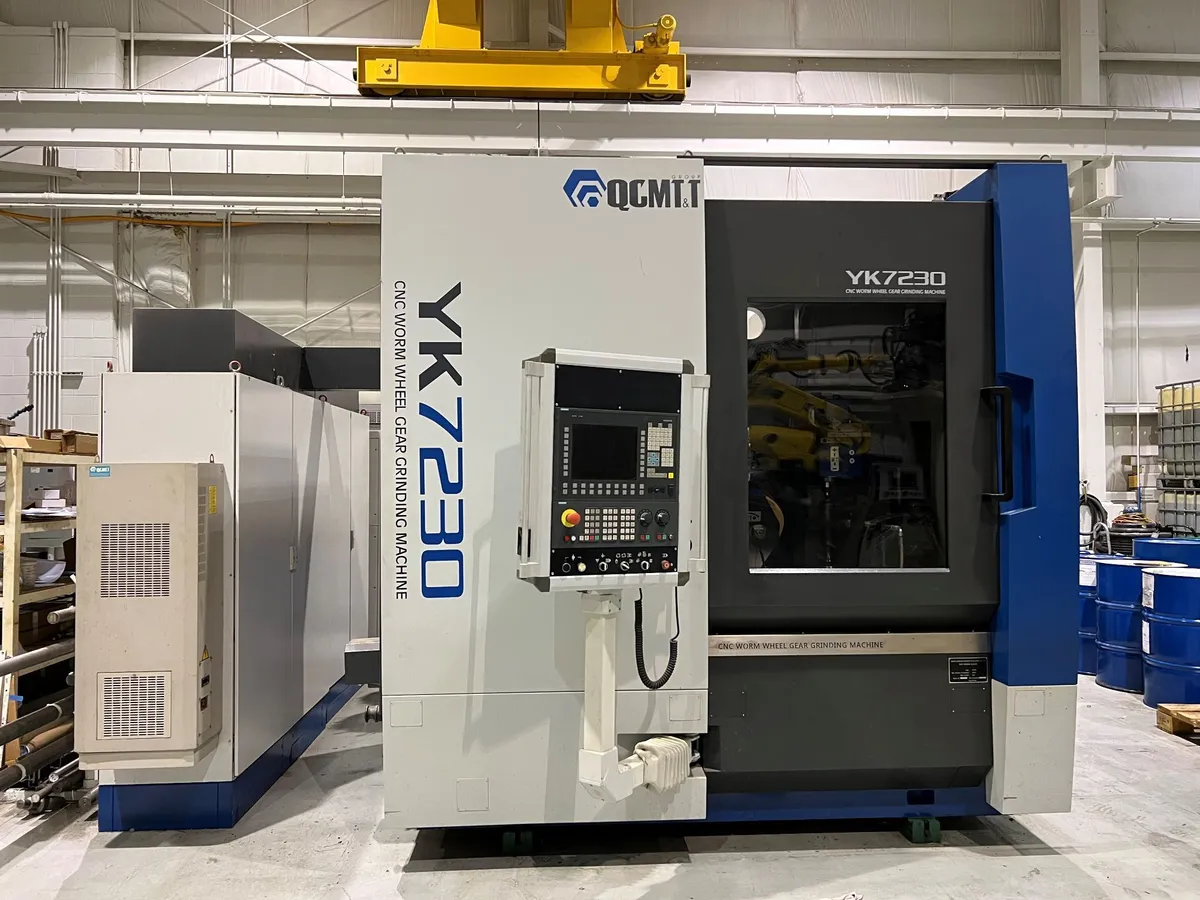

QCMT CNC Generating worm wheel Gear grinding machine Model # YK7230 w/ Siemens 840D controller, w/ 11 cnc axis , good tooling assortment new 2013 DEMO Machine, Like New condition!!!
QC American CNC GENERATING Gear Grinding Machine
Model YK7230
s/n 019
new 2103
Demo Machine
condition " Like New "
This Machine was used by Mfg for demonstration at shows . it is in
"Like New" Condition. the machine utilizes the Siemens 840D cnc controls
and diamond disc cnc dresser. this Generating style gear grinder is
available for immediate sale with a good assortment of tooling. it operates
and is tooled similarly to that of the older Reishauer style machines
Machine specifications are as follows from the catalog:
Outside Diameter 20-300 mm
No of teeth 5- 600
Module 1-6 mm
Max face width 300 mm
Max Helix angle +/- 45
Radial stroke of column (X1 axis) 400 mm
Tangential stroke of carriage (Y1 axis) 220 mm
Axial stroke of slide (Z1 axis) 430 mm
Distance from workpiece spindle end face
to tailstock center 230-870 mm
Max grinding wheel diameter 300 mm x 160 mm x 125
grinding wheel spindle motor 15.5 KW
speed range of grinding wheel 2200- 4000 RPM
Machine is equipped with the following:
Siemens 840D (11 cnc axis controlled)
5 axis controlled simultaneously
pendant swivel control
auto tool alignment technology
auto tool clamping
continuous shift grinding
automatic dressing cycles
manual and automatic grinding selections
Direct drive technology
profile and longitudinal modification by cnc
auto door feature
cnc dressing
filtration unit
chiller system
machine manuals
misc tooling and dressing discs assortment as photographed
machine can be inspected in our customers factory for a short
time only . this is an excellent opportunity to get into gear
grinding for a relatively low cost . this machine sells new for
over $600,000.oo USD today but can be purchased for the special
price quoted today.
contact rich Piselli at Rich@Pisellient.com for more information
and to discuss further this opportunity . visit our website at
WWW.PiselliEnt.com for more information or request a formal
quote on line .
thank you
Richard Piselli
704 609-0766
