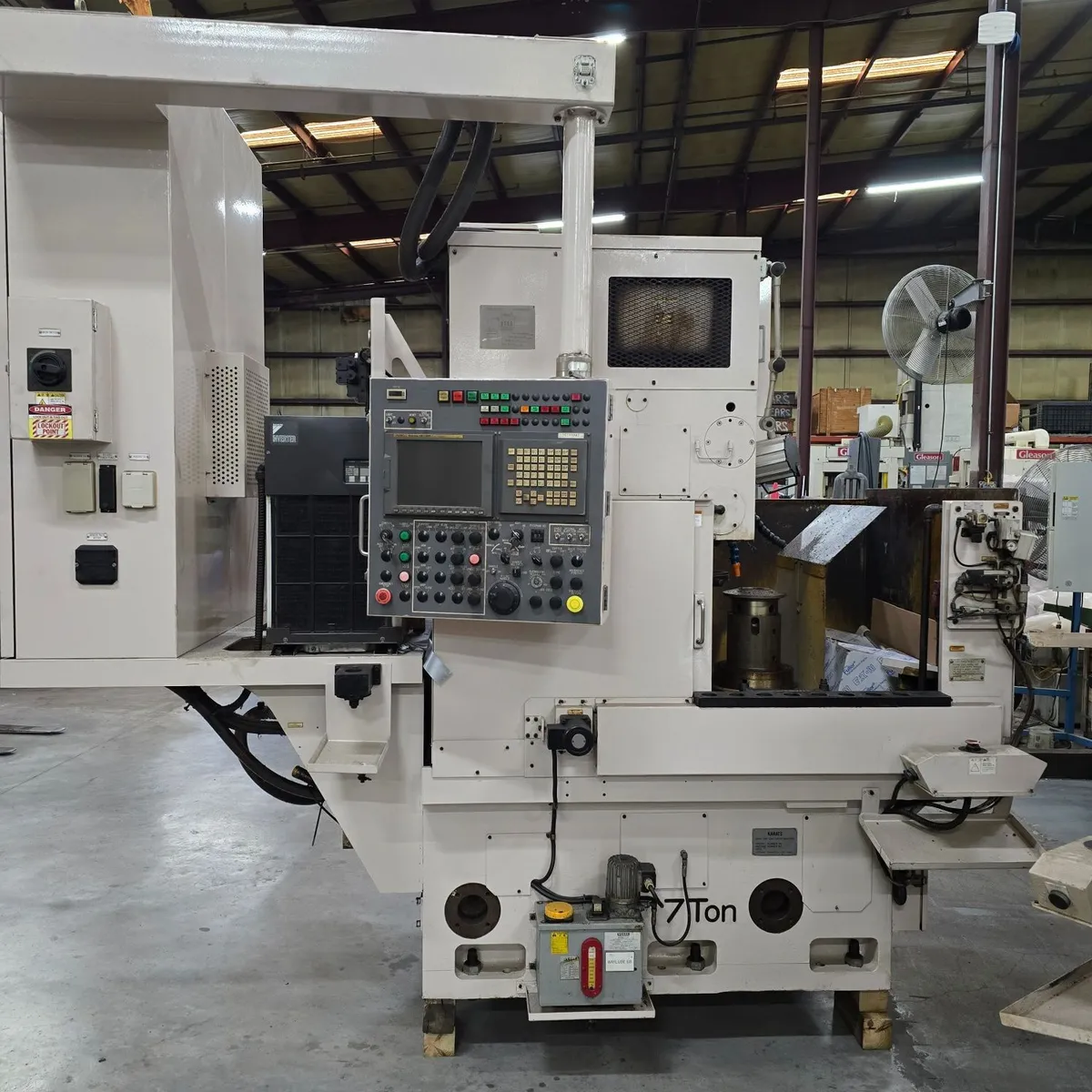

Karats Model GSM 12 CNC gear shaper , 4 axis cnc controlled with fanuc 18 controls 8" diameter x 2" stroke new 2006

Karats cnc gear shapers
model GSM 12
new 2003- 2006
3 available s/n 23417, 23661, 23858

Machines are equipped with a hydrostatic spindles for small and
large production runs for both automotive and aerospace work
The Machines are equipped with many features

Machine specifications are as follows :
Maximum Modul 4
Max Diametral pitch 6.35
Maximum width of gear face 50 mm 1.9685"
Max diameter pitch circle (External Gear) 180 mm 7.087"
Max diameter pitch circle (Internal Gear) 120 mm 4.7" + cutter diam
Max Helical angle (with optional guides) 45 degrees +/-
Minimum Helical lead of cutter 400 mm 15.748"
Max/Min center distance (spindle -Table ) 205 mm/ -60 mm
Max clearance height above table 310 mm/ 12.2" (TBD)
Max Clearance Height above table w/ riser 400 mm/ 16.2" (TBD)
Min clearance height above table 260 mm/ 10.236"

Max diameter of work table 250 mm/ 9.8425"
Max diameter of hole through work table 70 mm/ 2.7559"
Diameter of cutter spindle 90 mm/ 3.5433"
taper hole in cutter spindle 45 mm(1/12 taper)
1.7717"
strokes per min max 1500
number of cuts as required
main drive (cutter stroke) motors AC 5.5 kW
main power 220 Volt
machine dimensions (120" Length x 75" width x 108" height)

Machine is equipped with the following "
Fanuc 18 IM 4 axis cnc controls
Pendant control
Riser heights vary. (inquire)
Hydrostatic spindle
Oil chilling system
hydraulic table clamping
Magnetic chip conveyor in coolant tank
Half cabin enclosure
Chip bin
Manuals

These machines can be inspected in our NC warehouse with proper notice
its small footprint machine makes is an excellent production or job
shop gear cutting machine.

Contact us today to or visit www.piselliEnt.com for more information
and or request a formal quote on line .

thank you
