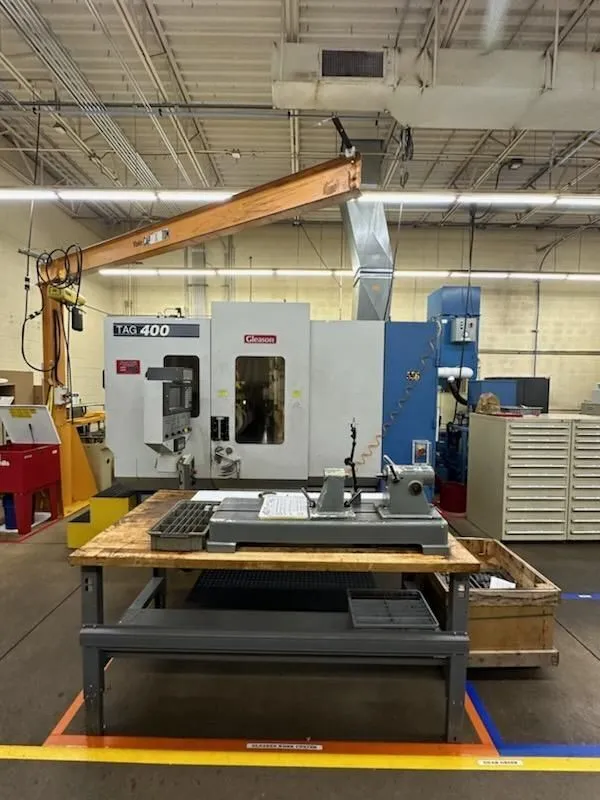

Gleason Model Tag 400 CNC Generating Style Gear Grinder 400mm Cap. w/ filtration New 1997 s/n 1041 " PRICE BLOW OUT "

Gleason CNC Gear Grinding Machine Generating style
Model TAG 400
s/n 1041
New 1997 delivered 1998

This Gleason model Tag 400 utilizes the Generating style grinding
feature. the Machine dresses the wheel automatically during cycles.
this machine can be used for small or large run production jobs and
parts can be viewed with high quality charts to reference.
contact us today to inspect in our warehouse in North Carolina !!

machine specifications are as follows:

Max Diameter Gear 15.7"
Max pitch 3.0 DP

- 15.75" Max Tip Diameter
- .400" Min Root Diameter
- 8.00" Max Face Width
- 50.0-3.0 Diametral Pitch Range
- 0.5-8.0 Modular Range
- 6-600 Number of Teeth
- 8"-31.5" Distance Between Centers
- +/- 45 Degrees Max
- 14.5-30 Degree Pressure Angle
- Lead Relieving
- Lead Crowning
- Special Relieving
- Special Crowning
- Conical Taper Gear
- Concave Crowning
- 150 Lb. Max Workpiece Weight
- 19,550 Lbs Weight of Machine

Machine is equipped with the following
GE-Fanuc 15 M control
Pendant controller
Full enclosure
CNC Dressing unit
filtration unit
full tooling assortment & extra grinding wheels
chiller and mist collection
books and manuals

Machine can be inspected with proper notice in our Statesville NC
warehouse . the machine has been removed from power so it can not be
seen operational , however we have charts for the machines parts prior
to removal . contact us today to visit and inspect accordingly. contact
rich Piselli @ rich@pisellient.com to receive a formal quote and pricing
or visit www.piselliEnt.com to see our other machines we are offering
