koepfer Model 153 B horizontal automatic gear hobber , 142mm diameter x 300mm max workpiece length s/n will advise shortly

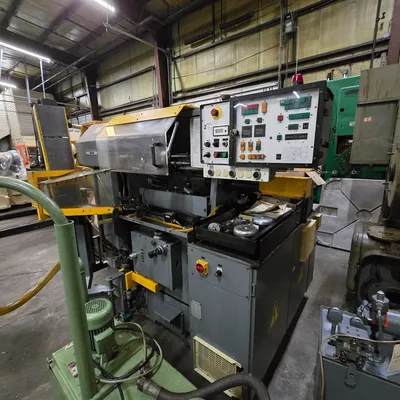

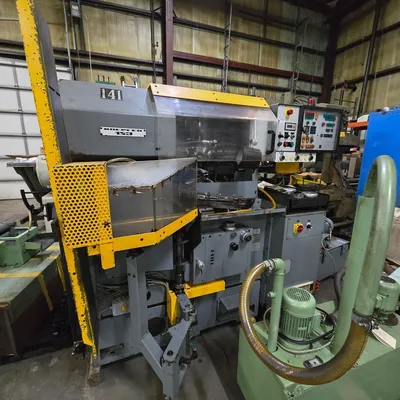

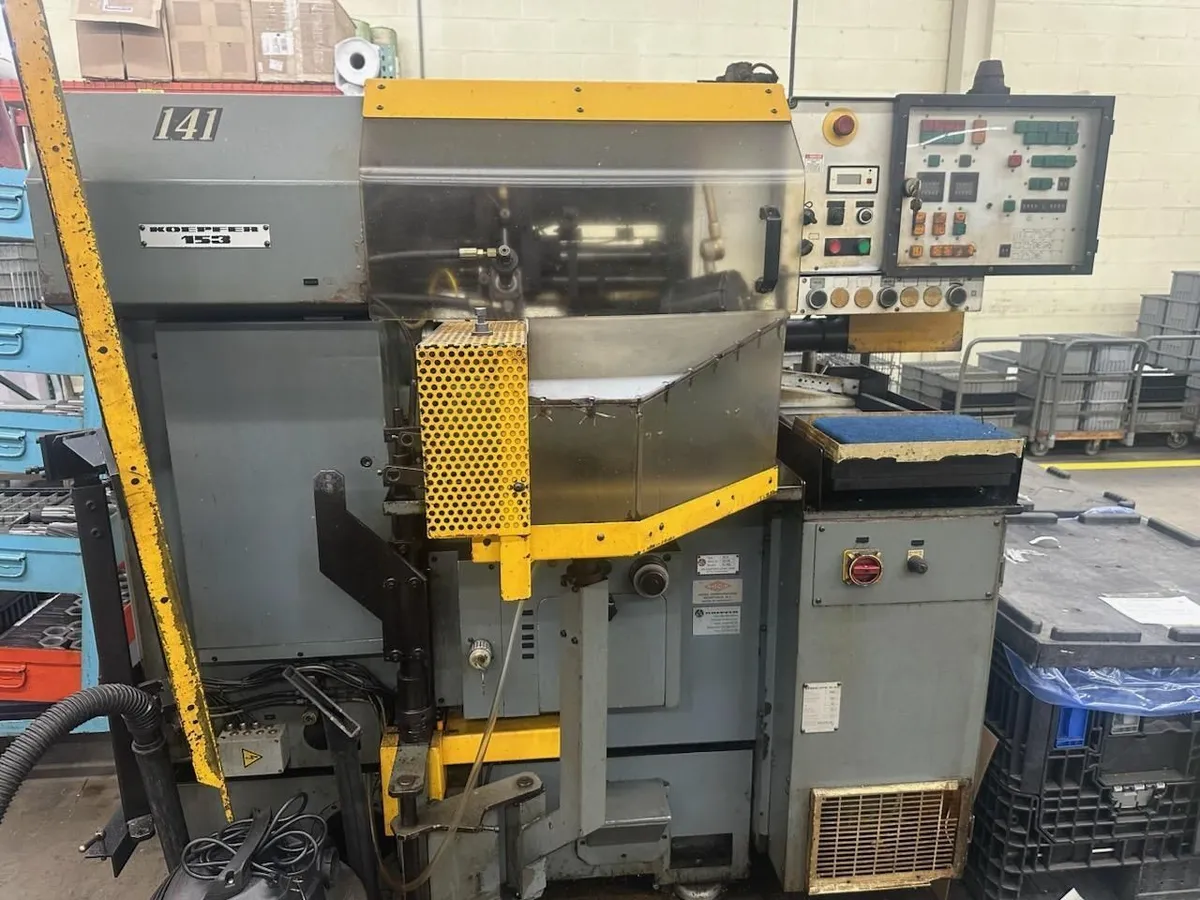

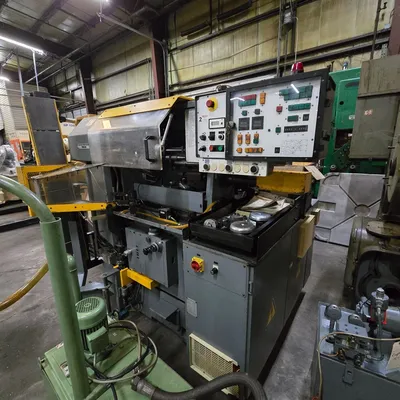

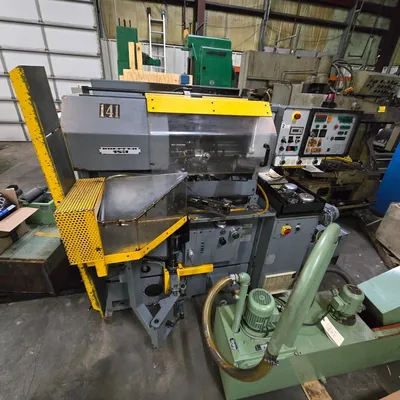

Koepfer Horizontal hobbing machine

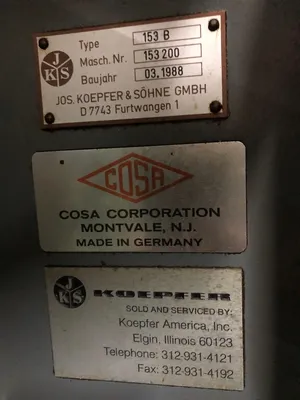

Model 153 B
s/n 153 200
New 1988
good mechanical condition

the koepfer model 153B is a very nice, sturdy, compact horizontal gear hobber
it can be set up to run in manual or automatic mode .

Machine catalog specs:

Max workpiece diameter: 142 mm
Max workpiece length 300 mm
main spindle bore 100 mm
Max hob diameter 70 mm
hob arbor diameter range 8-27 mm
hob head speed range 80/230
hob head swivel angle 45 deg
work spindle through hole diam 40 mm
tailstock travel 160/340 mm

Machine is equipped with the following:
Auto loading
power 220/60/ 3phase power
Books & manuals

will advise upon receipt of machine
just general info and photos if you aren't familiar with this type machine
