Monnier & Zahner model M544 CNC thread and worm milling machine 100mm x 300mm length, fanuc 21M controls , with auto loading , new 2004

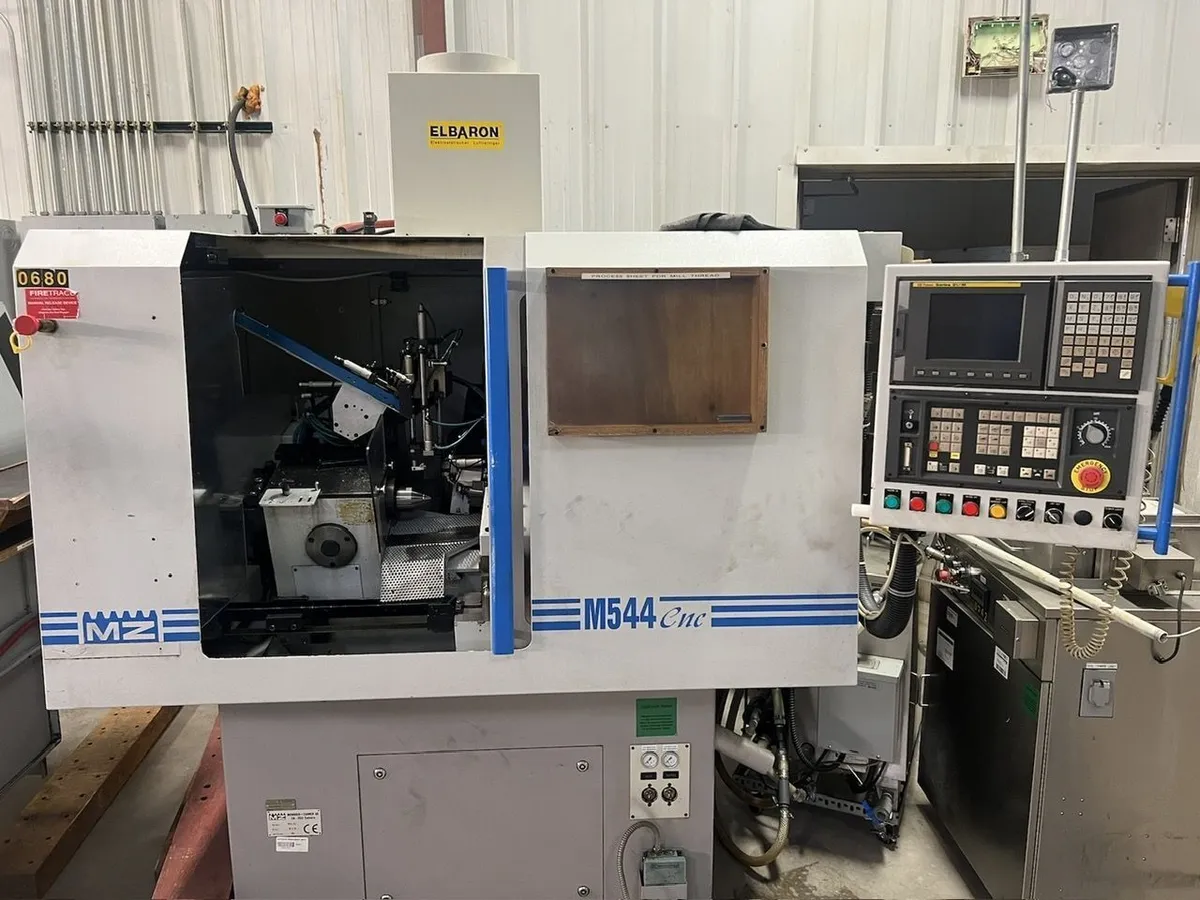

Monnier & Zahner CNC thread milling machine (MZ)
model M544
new 2004
this machine is perfect for milling worms and bone screws with high accuracy
machine is equipped with auto loading as well
MACHINE SPECIFICATIONS:
Workpiece diam..................................................1.5-100 mm
Max. workpiece length...............................................300 mm
Max. cutting length.................................................180 mm
Tool:
Max. Cutter diameter.................................................70 mm
Machine:
Setting angle......................................................+30 deg.
Clamping system................................................W25/carrier
Milling motor.....................................................P=1.1 kW
Cutting speed.................................................500-6000 RPM
Hydraulic aggregate................................................0.37 kW
Coolant system.....................................................60i/min
X-Axis = longitudinal axis, max way.................................200 mm
Y-Axis = punging axis, max way.......................................70 mm
X-Axis = workpiece spindle
Rapid advance:
X-Axis.............................................................6 m/min
Y-Axis.............................................................6 m/min
Z-Axis..................................................................50
MACHINE IS EQUIPPED WITH:
Fanuc 21-MB 4-axis CNC Control
Tailstock
Misc. Tooling
Foot Pedal
loading shoot and conveyor
Books and Manuals
Machine can be inspected under power in our Statesville, NC plant.
visit WWW.PiselliEnt.com to view this machine and others in our stock
The machine is in excellent condition and looks to be in "excellent" condition!
Call to set up an inspection today or request best price loaded in container
FOB Statesville, NC. visit our site to see this machine and others offered at
reasonable prices
thank you
richard piselli
704 609-0766
