Tos Model OFA 32A automatic Vertical Gear hobbing machine, 320 MM diameter, 250 mm face width , max mod 7mm (3.6 dp) , excellent condition, new 1992

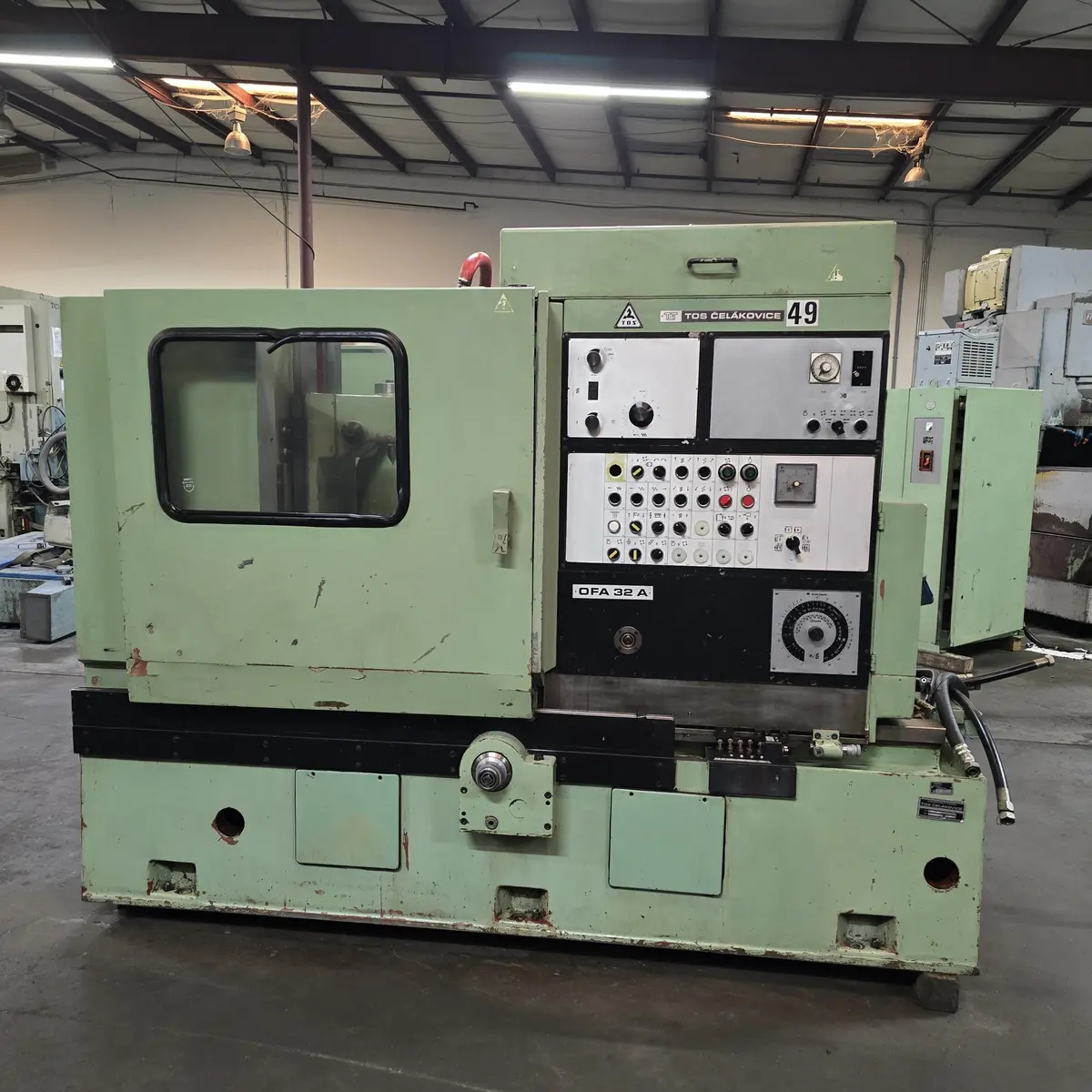

Tos Automatic Vertical Gear Hobbing Machine
Model OFA 32 A
S/N 0445439
YOM: 1992
This machine came from a small aerosapce plant in canada . the
Machine is a very rigid designed machine with many automatic cycles
& Features. Late model, Very good mechanical condition, well equipped
Machine specs below
Max. Gear diameter: 320 mm
Max. Module To Be Hobbed: 7mm
Max.helix angle of teeth: 45°
Hob Head Travel: 250mm
Distance Hob Axis To Table Axis: 40mm - 300mm
Max. Diameter Of Hob: 150mm
Max. Length Of Hob: 200mm
Hob Speeds In Steps: (17) 71-450 RPM
Diameter Of Work Table: 300mm
Axial Feeds: 1-220mm/min
Radial Feeds: 0.5-25mm/min
Tangetial Feeds: 0.26-50mm/min
Approx Dimensions 2.5M L-R x 2.4M F-B
Approx Height 1.8M
Approx Weight 6,200 kg
Machine is equipped with the following:
Differential
Infeed
Automatic cycles
Hob shift
Mag Chip conveyor
Hob arbor
Change gears
Manuals , etc.
This machine can be inspected in our NC facility under power!
Visit our website at WWW.pisellient.com for more
information & photos , or request a formal quote on line .
if you need more info contact richard piselli at rich@PiselliEnt.com
to set up an inspection or to learn more abouth this machine and
others in our extensive Gear Machine inventory
thank you
Richard Piselli
704 -609-0766 Whats App
