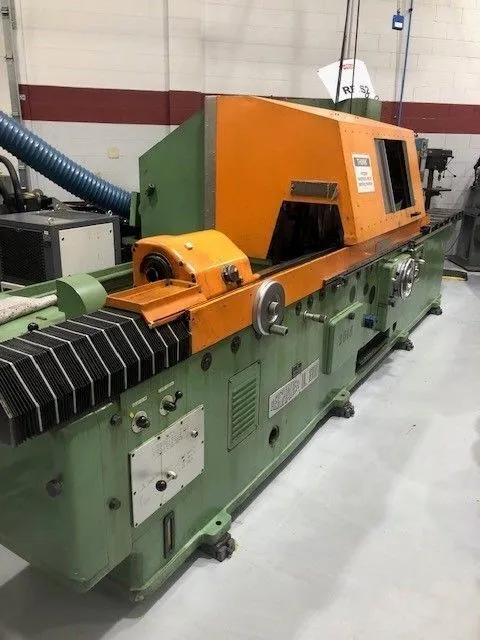

Reishauer model UL 1800 thread grinder , 1800 mm length of grind , aerospace facility , excellent condition new 1981 Machine ways re-scraped in 2014 and gone through , excellent condition s/n 52550-3
REISHAUER LONG BED THREAD GRINDERR
Model UL-1800
s/n will advise
remanufactuered with ways re-scraped in 2014
machine is in excellent mechanical condition with lots of additional
tooling , steadies , and gears . contact us today to learn more about
this unique machine.
achine specs are as follows
Max grinding length 70.5"
Max distance between centers 80.75"
possible displacement of workhead to the left 8.25"
takes between centers with work head displaced 55"
smallest workpiece diameter 3/8"
greatest workpiece diameter 9.75"
greatest workpiece weight 110 lbs
smallest pitch when using single ribbed wheels 80 TPI
- multi ribbed wheels 48 TPI
Largest pitch when using single-ribbed wheels 4"
- multi ribbed wheels 4 TPI
greatest helix angle left and right hand 40 degrees
greatest grinding wheel diameter 13.75"
smallest grinding wheel diameter 10.75"
width of multi-ribbed whels for plunge grinding 3/4", 1-3/16", 1-5/8"
width of multi-ribbed wheels for longitudinal grinding 5/16", 1/2", 5/8", 3/4",
1", 1-3/16"
Grinding wheel speeds
when grinding 30 ++ 45 m/s
when profiling w/ diamond cutter 30 + 45 m/s
when profiling with crushing roll 70 min
Auto wheel withdrawal 0/.08/.8"
number of work speeds 27
Speed range 0.4-160 RPM
bore through work spindle 2.599"
relief is steplessly variable adjusted between .0012-.32
number of flutes 1-10, 12,14,16
Machine is equipped with the following
several type dressers
machine steadies
tailstock & steadies
grinding wheels & Flanges
misc tooling and workholding
mist collection
full books and manuals
excellent care taken of the machine over the years
note: shared coolant tank and filtration w/ another UL 900 Machine
coolant tank and filtration system is available with this machine
call to confirm .
Contact us for more information on exact tooling or to set up a
quick inspection before removal from plant. contact richard at
www.pisellient.com or Rich Piselli at Rich@piselliEnr.com
thank you
Rich Piselli
704 609 0766 or whats app
