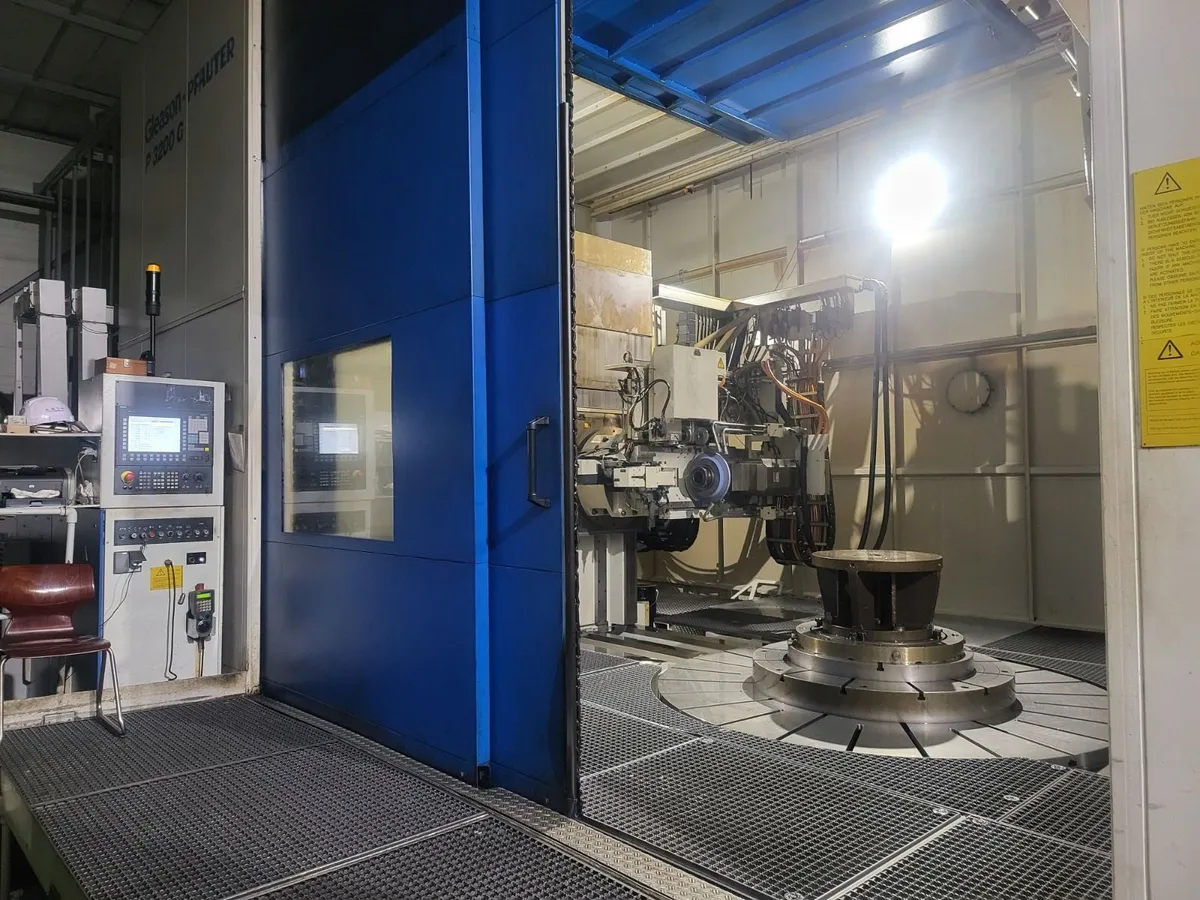

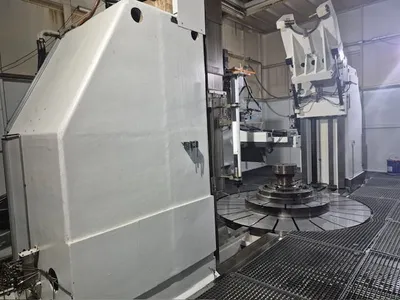

Gleason Pfauter Model P3200 G CNC form wheel gear grinder , with Siemens 840D controls , tailstock , excellent under power new 2005

2004 GLEASON PFAUTER CNC Gear Grinding Machine
Manufacturer GLEASON PFAUTER
Model: P3200G
New in 2005
Control System: Siemens 840D

WORKPIECE:

max. grindable profile depth: 100 mm
max. diameter: 3200 mm

TOOL:

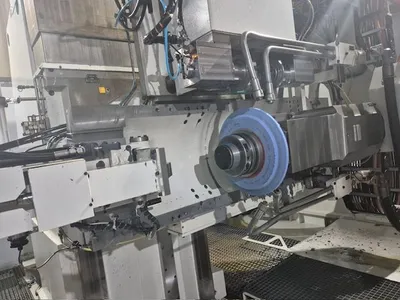

Form-grinding wheel;
max. diamter: 450 mm
max. width: 100 mm
diameter of the spindle journal for retaining: 80 mm
length of spindle journal for retaining: 132 mm

MACHINE:

Travel distance;
radial (X-axis): 1630 mm
tangential (Y-axis): 330 mm
axial (Z-axis): 1300 mm

Maximum grinding head pivoting angle;
direction +A: 45 degree
direction -A: 45 degree

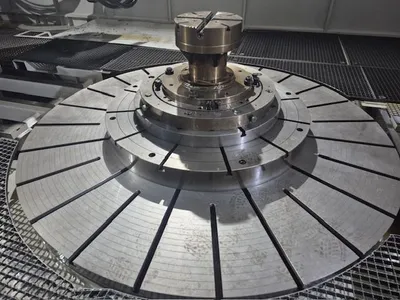

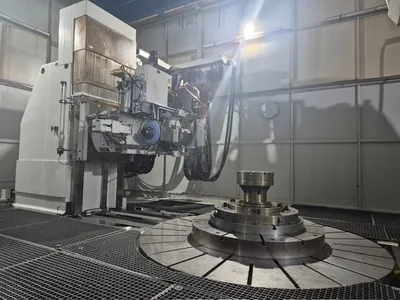

Work table;
external diameter: 2500 mm
bore: 800 mm
max. table load: 400 kN

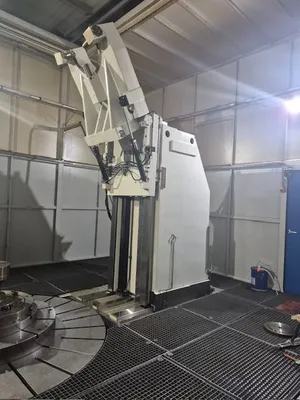

Tailstock;
travel distance: 1410 mm
locating bore: 90 mm

Overall dimensions osf the machine;
length: 14430 mm
width: 9950 mm
height: 6100 mm

weight of the machine: 45500 kg

SPEEDS:

Feeds and rapid traverses;
axis X: 3000 mm/min
axis Y: 5000 mm/min
axis Z: 6000 mm/min

Speeds;
tool (B-axis): 400 to 4000 min-1
work table (C-axis): 0 to 2 min-1

Electrical equipment;
operating voltage: 380 V
supply voltage: 230 V
control voltage: 24 V
Frequency: 60 Hz
cable cross-section area: 185 mm2
protection: 315 A
connected load machine: 225 kVA

Machine is equipped with the following

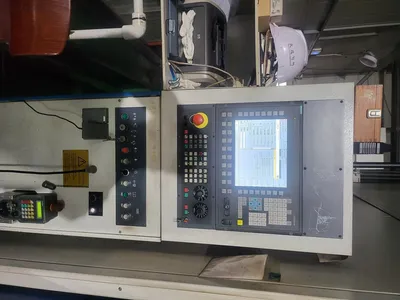

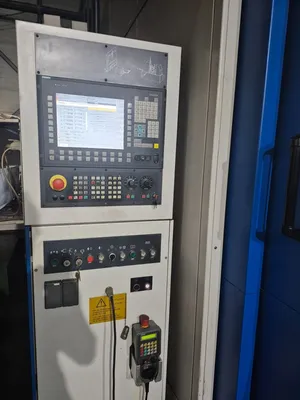

* Siemens 840D CNC controls

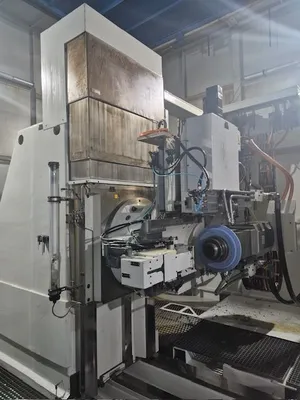

* external gear grinding head
* internal gear grinding head
* tailstock & Pinion support
* on board inspection and probing

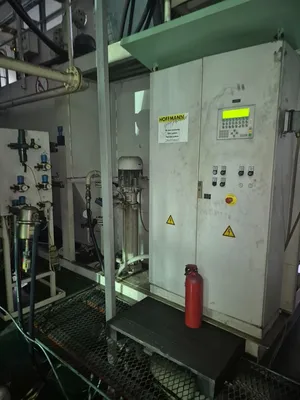

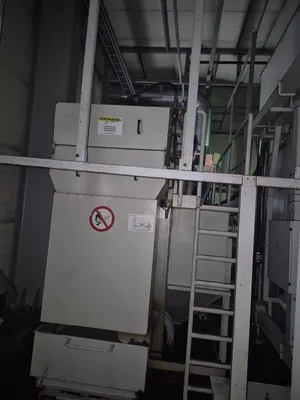

* Full guarding package and mist collection

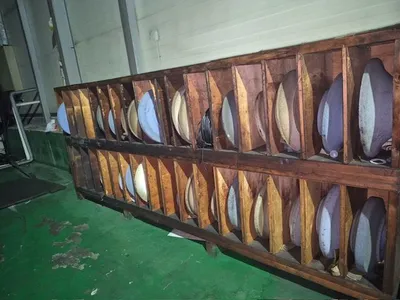

* MIsc tooling
* Full documentaion , Machine software back ups
* quality Charts available

Machine can be inspected in plant under power.

contact us to learn more about inspecting this machine and gettin
packing and shipping quotes to your final destination before
traveling . let us know as we gather more information on all the
additional options and attachments with this machine. contact us
at Rich@Pisellient.com or visit our website to request a formal
quote and pricing on-line

thank you
Richard Piselli
