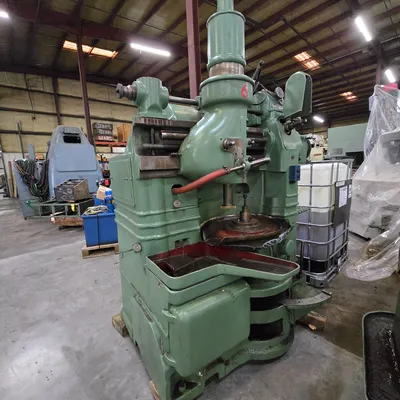

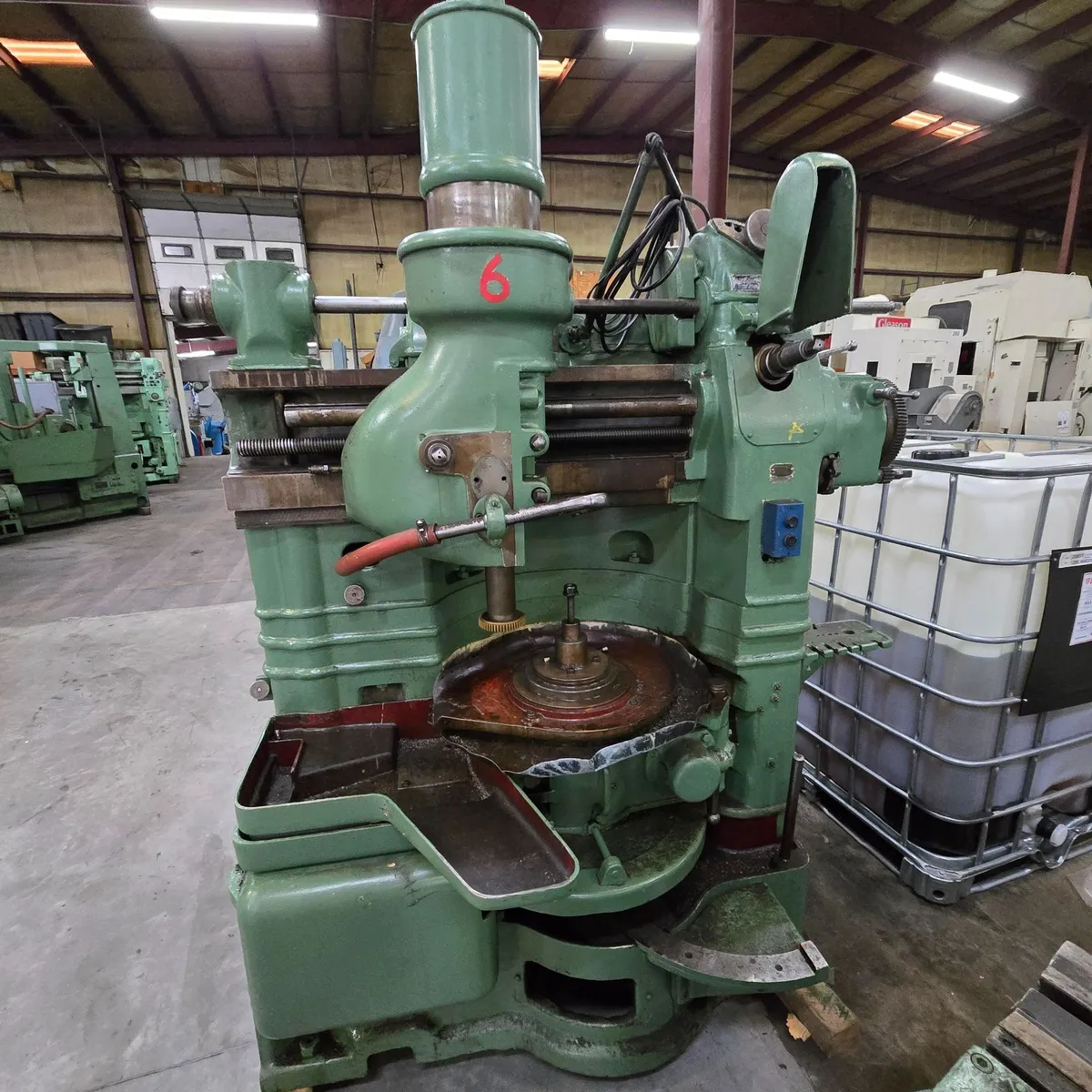

Fellows model 6A vertical gear shaper , 18" diameter gear , 5" stroke , 6" riser height, excellent condition s/n 25834

Fellows Vertical gear shaper
Model 624A
s/n 25834
Excellent condition

Machine will be gone through and properly adjusted for optimum
performance. Machine backlash brought back to original OEM specs
while all items repaired as needed

Machine specifications are as follows:

* Max pitch diameter (External) 18"
* Max pitch diameter (Internal) 18"
* Max face width, external & internal 5"
* Max diametrical pitch spur 4 DP
* Max diametrical pitch helical 6 DP
* Bore through work spindle 5-7/8"
* Max Clearance height (12")
* Cutter spindle diameter 2.875"
* Max helix angle with proper guide 30 deg
* Stroking speeds 50-300 SPM
* Dimensions (L x H x W) 63" x 48" x 80"tall
* Machine net weight, approx 6,500 lbs

Machine Equipped With:
* 5" Stroke
* 5-7/8"" Bore in table
* 6" Riser
* Hollow spindle
* Standard Straight Spur Guide
* Misc change gears

Machine can be inspected under power with proper notice in our
statesville NC Plant. contact us to set up an inspection today
or visit our website to view other machines in stock at
WWW.PiselliEnt.com So much to choose from !!

thank you
Rich Piselli
704 609-0766
