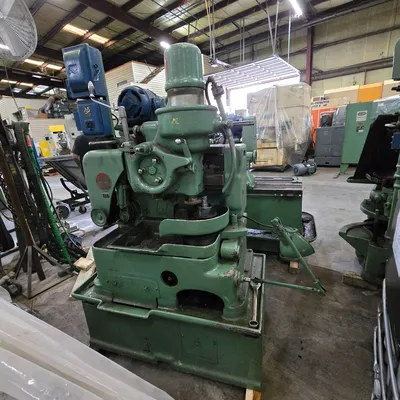

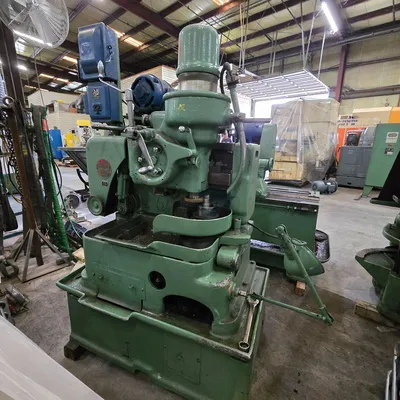

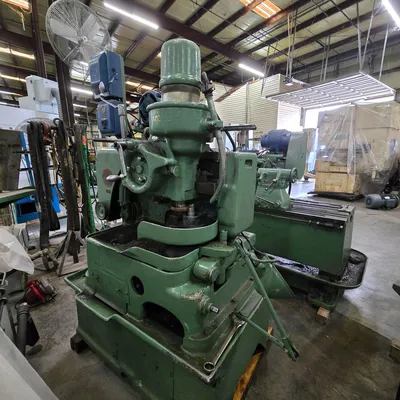

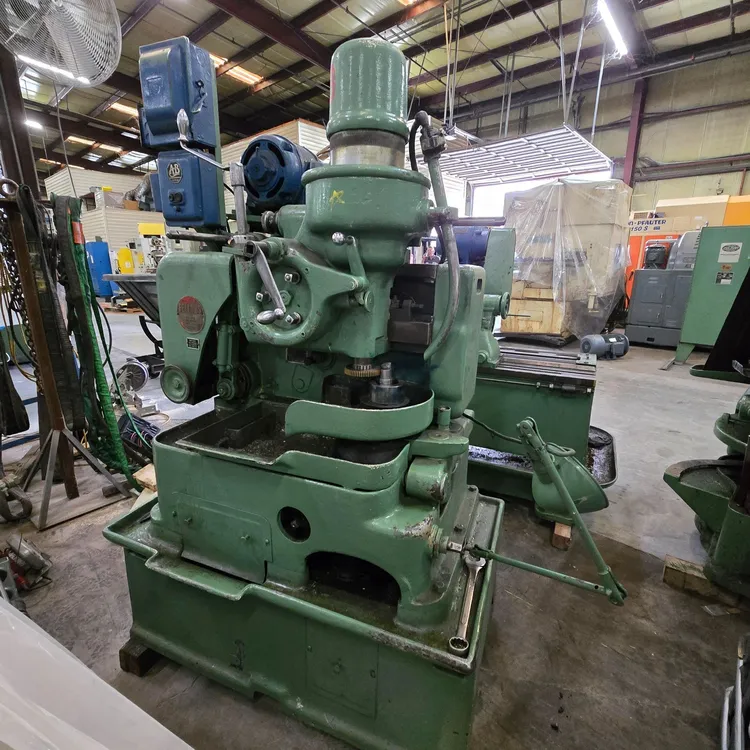

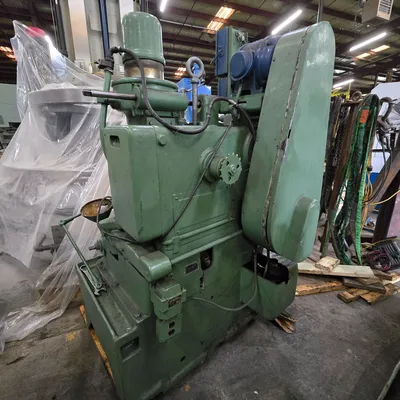

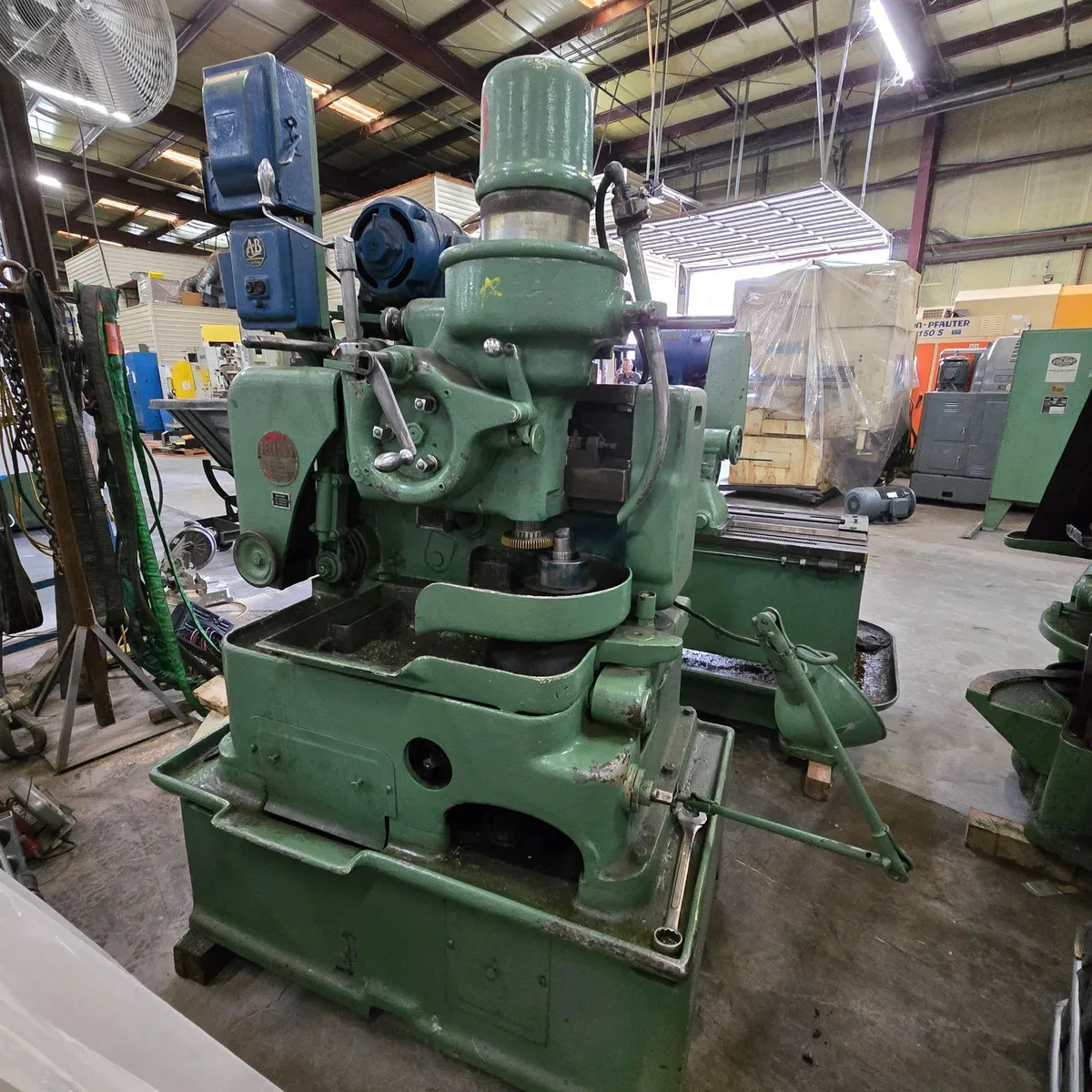

fellows model 7 Gear shaping machine , 7" diameter 1.5" face width 1" Riser, good mechanical condition , s/n 18235

Fellows 7 type gear shaper
Model 715
s/n 18235
condition good

machine can be inspected in our facility gone through and under power
Machine can be inspected under power with proper notice, video avail

machine specs are as follows:

* Max. Pitch Diameter Spur External 7"
* Max. Pitch Diameter Helical External 7"
* Diametral Pitch, Spur Gears 5/7 DP
* Diametral Pitch, Helical Gears 6 DP
* Face Width Max 1.5"
* Helix Angle Degree, Max 45 Degrees
* Cutter Strokes Per Minute, Range 200-450 SPM
* Machine Dimensions 3'9" x 3'5" x 6'6" H
* Machine Weight 3,300 lbs.

MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Hollow Spindle
* 1" riser assembly
* 1.5" stroke capacity
* Assortment of Change Gears
* Operators Manuals

Machine can be inspected under power with proper notice
we can set up machine for your requirements . contact us
today at www.pisellient.com for more info & photos and
request a formal quote on line!!!

thank you
rich piselli
rich@Pisellient.com
