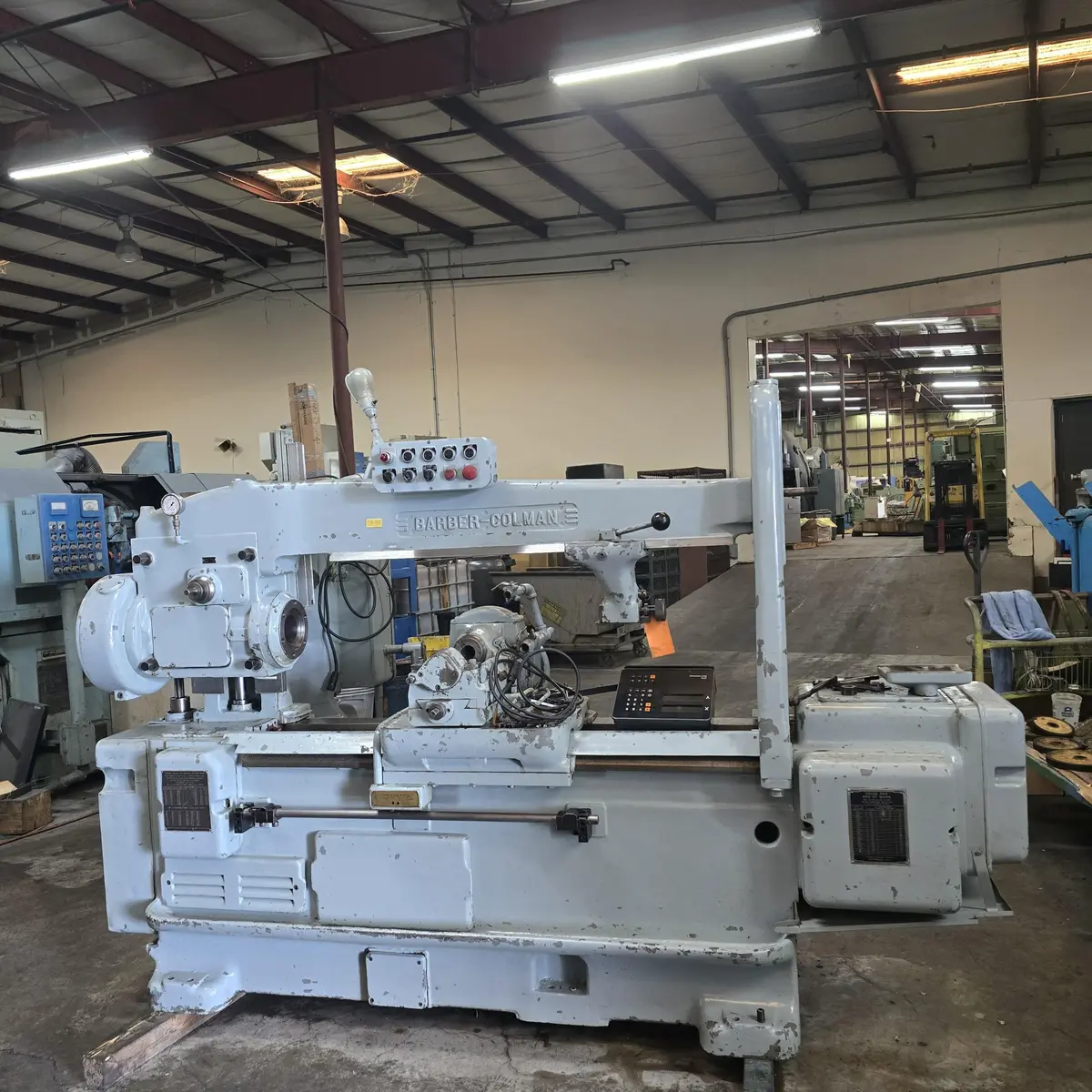

Barber Colman model 16-36 with Differential , 16" diam ., 36" cut length , 49" between CC excellent s/n 3123

Barber Colman horizontal hobber
Model 16-36
s/n 3123
Machine is equipped with Differential

this machine can be inspected in our Statesville NC plant under
power with proper notice. machine runs very well !!!

Machine specs are as follows
Machine specifications
*Max DP in Steel 6 DP-10 DP
*Max Work OD 16"
*Max Length of cut 36"
*Diameter Hole Thru Work Spindle 3-1/8"
*Max distance between centers 49"
*Max Hob Diameter 5"
*Max Vertical Adjustment of Work Spindle 8"
*Max Hob Slide Swivel Angle Setting-Degree 45 degrees
*9 Hob Speeds 59-246 RPM
*Hob Feeds .0075-.1125"
*Machine weight 8,000 lbs

MACHINE IS EQUIPPED WITH:
A-frame style machine

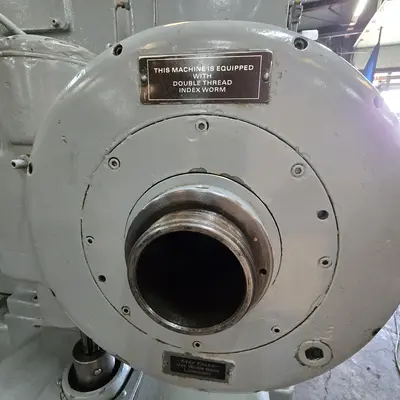

Dual thread index worm
Rapid traverse
Manual hob shift
tailstock with screw type center
Digital readout on Z-axis
Misc change gear assortment
Misc. Change Gears

Note: Machine has been gone through and tested, machine was
torn down, horizontal ways flaked, bearings replaced and parts
cleaned and re-fit for proper adjustment and backlashes!!

Machine can be inspected under power with proper notice in our
Statesville, NC facility! visit WWW.Pisellient.com to request
a quote or see more photos on line. or contact Rich Piselli at
rich@pisellient.com to receive a formal quote and pricing !!

thank you
Richard Piselli
704 609-0766
