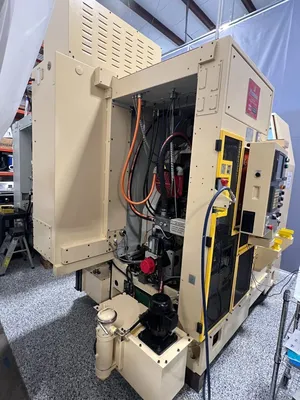

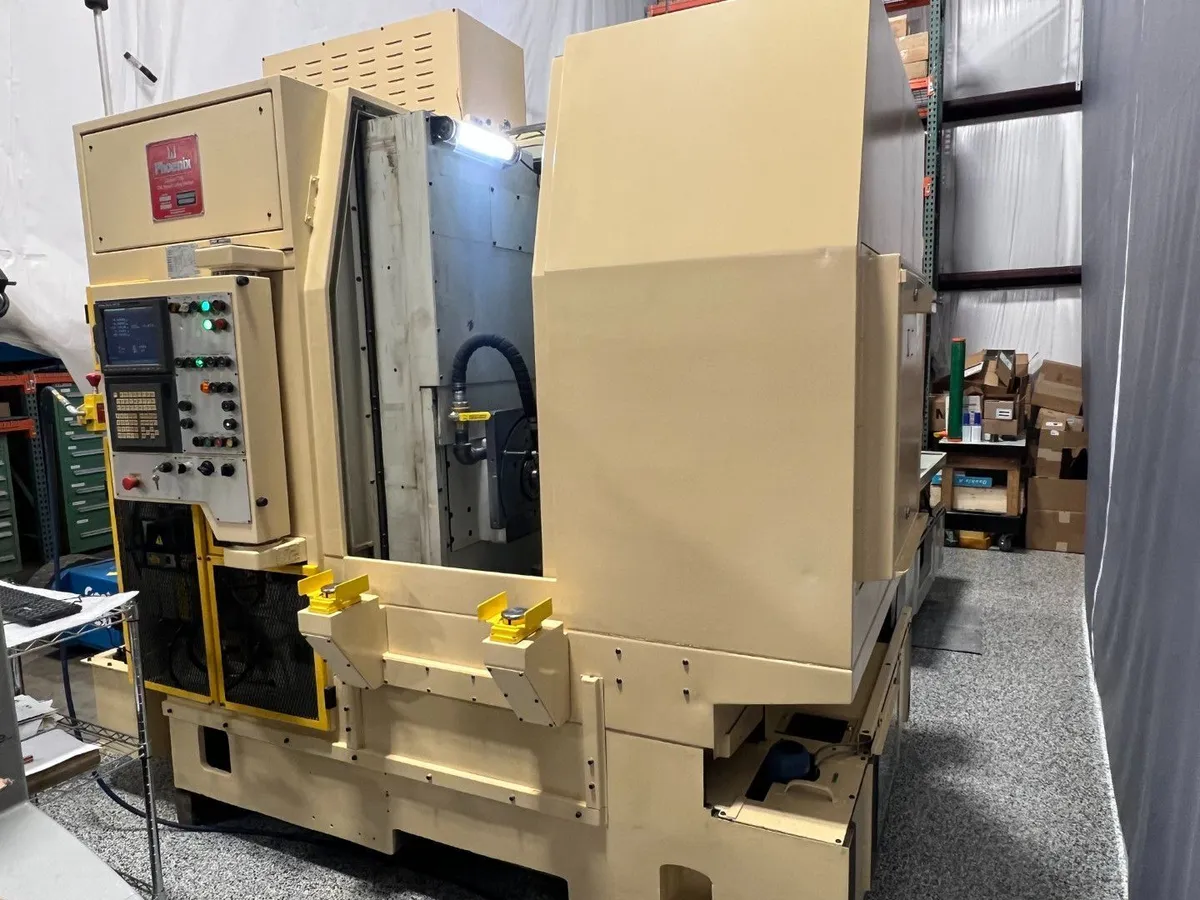

Gleason Model 175HC cnc bevel gear cutter , 175mm max diameter , gone through excellent condition machine new 2000

Gleason CNC Bevel Gear Cutter
Model 175HC Bevel Gear Generator
Serial Number: 944902
Control Type: Fanuc 160i Windows-Based

Gleason Phoenix CNC Spiral Bevel Hi-Speed Dry cutting machine Model 175HC year 2000
converted to WET Use it as WET or DRY (CYCLOVAC high volume vacuum chip removal system
NOT INCLUDED).

Machine specifications are as follows:
Capacity English Metric Extreme Ratio 10:1
Root Angle Range -5 deg to 90 deg
Gear Pitch Diameter 7.5"
MAXIMUM CUTTER SPINDLE SPEED 800 RPM
MAXIMUM Work Spindle Speed 750 RPM
WORK SPINDLE Diameter of taper at large bore (#39 taper) 3-29/32"
Taper per foot 39/64 Depth of Taper 3" Misc
Floor Space 95".75" x 63"
Machine Weight 23,000 lbs approx.
CYCLOVAC high volume vacuum chip removal system NOT INCLUDED.

equipped with the following :
* High-Speed Cutter Spindle
* High-Speed Work Spindle
* Work-Head Gear Ratio: 75 teeth / 105 teeth

machine maint done as follows:
Way covers and seals replaced
entire machine professionally Cleaned
New paint as photographed
All plastic air hoses replaced
New Internal light
New AC

The machine is currently under power and can be tested as such . contact
us today to set up an under power inspection and bring your tooling to
run and test cut your parts with Purchase order and down payment in place.

contact us today for a formal quote and pricing. Let us know if you
want to set up an under power inpection . we can not set up and cut
the gears but if you have the right people then we can allow a test cut
Let us know when you want to have a look

thank you
