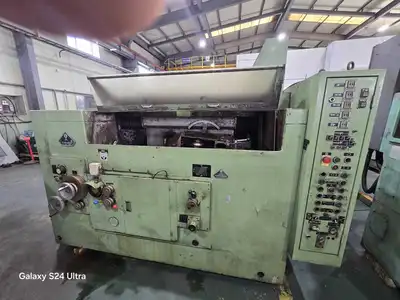

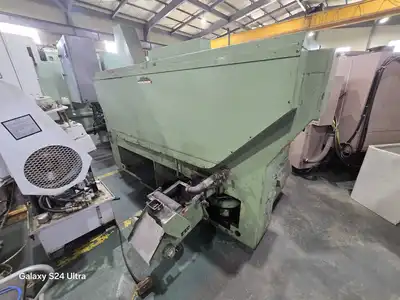

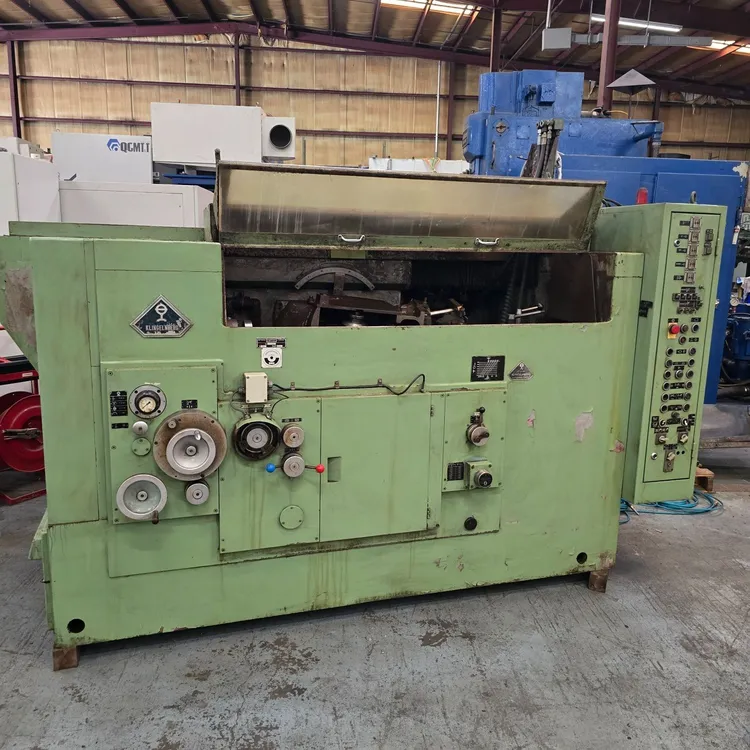

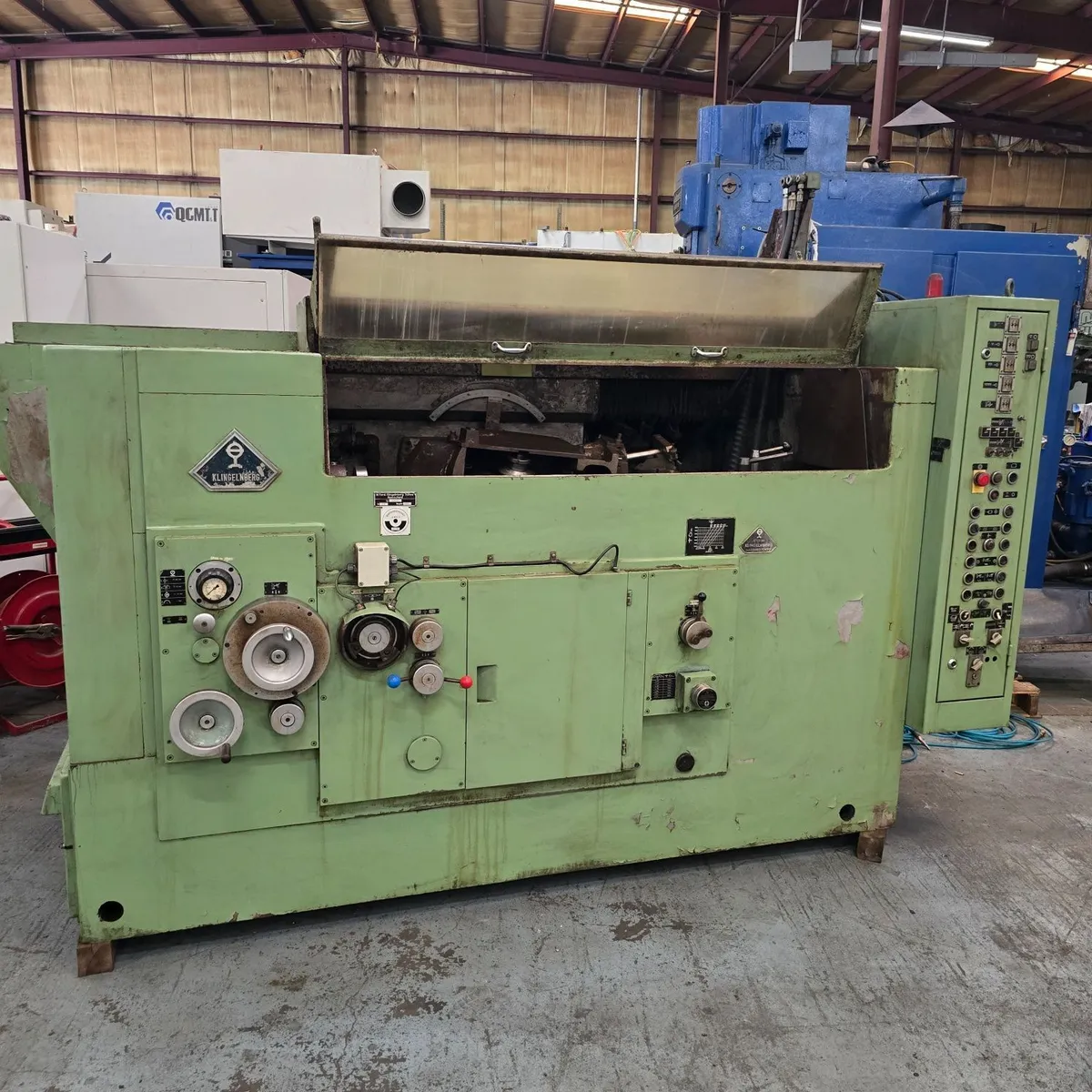

Klingelnberg Model AGW 421 Hob sharpening machine , 16.5" diameter , 29.5" stroke length , good condition video available

Klingelnberg Heavy Duty Hob sharpening machine
Model AGW 421
s/n 3488
Video Available under power prior to disconnection

this Rare machine is available for immediate sale Video is available
of the machine prior to removal from customers plant . machine has been
delivered to our statesville NC warehouse for future inspection

PRINCIPLE SPECIFICATIONS:

Max./min. workpiece diameter 16.540"/ 0" [420 / 0 mm]
Min. root diameter of hob 0 [0 mm]
Max. flute helix angle 45 degrees
Min. flute lead, normal 5" (127 mm]
Max. flute lead Infinite
Max. flute grinding depth 4.33" [110 mm]
Min./max. grinding wheel diameter 9.43"/13.75" [240/350 mm]
Max/ Min Wheel spindle speeds infinitley 1300/1900 R.P.M.
Peripheral wheel speeds, up to 114 Fps [35 Mps]
Number of flutes 3 TO 39
Max. wheelhead slide stroke approx 29.5" [750 mm]
Max. grinding stroke approx 26" [660 mm]
Wheelhead slide feed rate infinitely var 0/52 Fpm [0/16 Mps]
Net weight approx 9900 Lbs. [4500 Kg]
Length 112.2" [2850 mm]
Width approx 70.8" [1800 mm]
Height 82.6" [2100 mm]

EQUIPMENT / FEATURES:

- Suited to grind with Vitrified, CBN, and Diamond grinding wheels

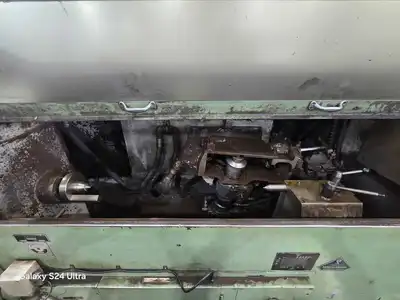

- 2 work arbors as photographed

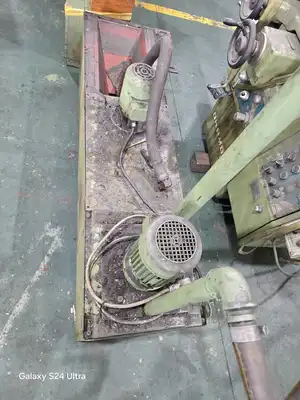

- Wet grinding equipment w/ pump & coolant tank
- Automatic wheel dressing
- Guard for wet grinding

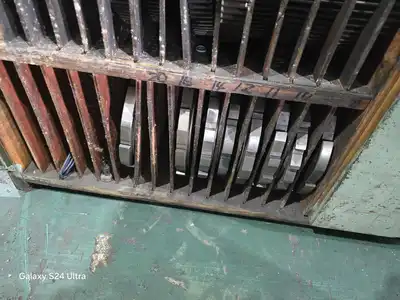

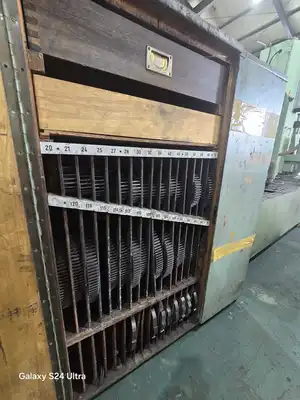

- change gears
- Index plates

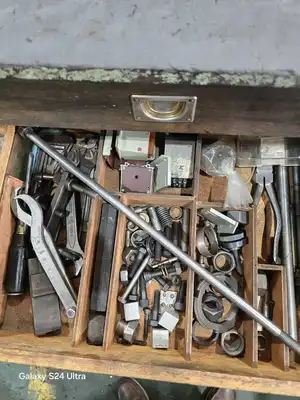

- Misc tooling as photographed

this machine has now been delivered to our plant for inspection.
a video is available prior to removal from customers plant.
please contact us as we can send via whats app or or plan a visit
to our shop in NC to see it under power.

let us know or visit www.pisellient.com to request a formal quote
on line or email rich@Pisellient.com for more information if required
