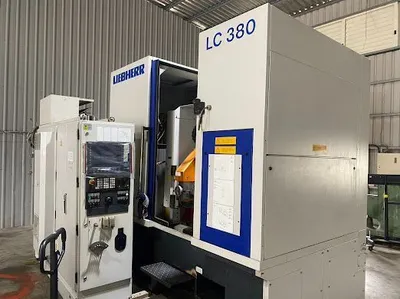

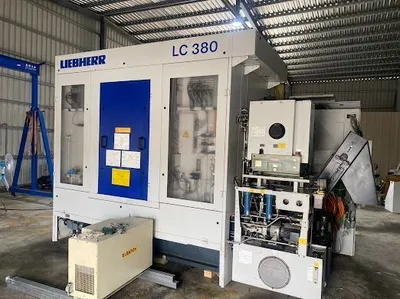

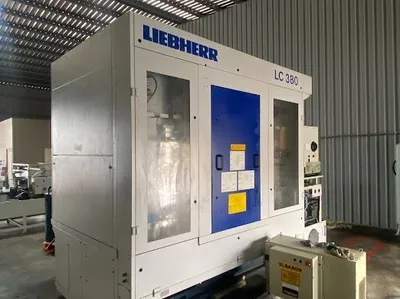

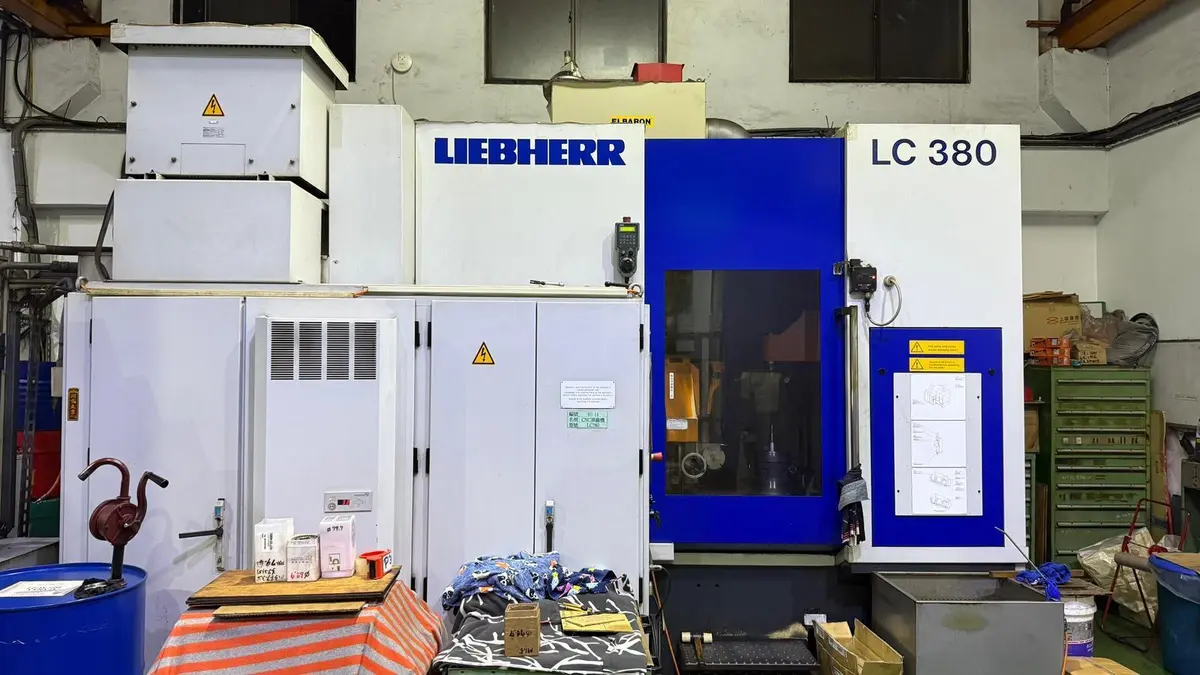

Liebherr Model LC-380 6 Axis CNC hobber, 380 mm diam., 7 Mod Max, 600 mm face, special high accuracy late model 2011

Liebherr 7 axis cnc "Special High Accuracy" Gear Hobber
Model LC-380
s/n FN 9014
New 2011
with special filtration for Ferrous & non ferrous materials

this machine can cut either wet or dry , the machine is equipped
with a chilling system and well as special paper band filtration
the machine is well equipped with hob arbors and misc tooling.
Machine was delivered by factory as a high accuracy machine!

Machine corresponds to the following
Max diameter gear 380 mm
Min Center dist 15 mm
Max Center dist 400 mm
Max Axial travel 600 mm
Max pitch modul hobbing 7 modul
Max Pitch modul profile Gear milling 9 modul
Table diameter 320 mm
Max table load 18 kn
Max swivel of head FK2.2 +/- 35 Deg
Main drive power 14 kW
Max hob speed 1200 1/min
Max Tang travel 300 mm
Max tool diameter x tool length 160 x 330 mm
tailstock column axial travel 540 mm
machine power 220 Volt/ 60 Hz
HSK -A50 interface
machine weight 15000 kg

Machine is equipped with the following

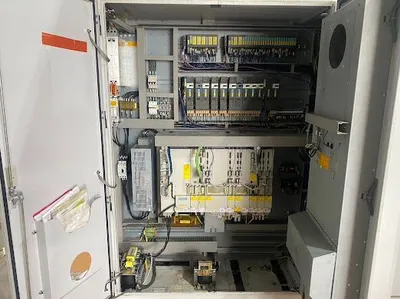

Siemens 840 D SL cnc controller w/ Hand held device
full guarding
Table Clamping
special Tangential hobbing for high accuracy
special measuring device for A-axis swiveling acurracy
Special meshing positioning and probing device
programmable tailstock

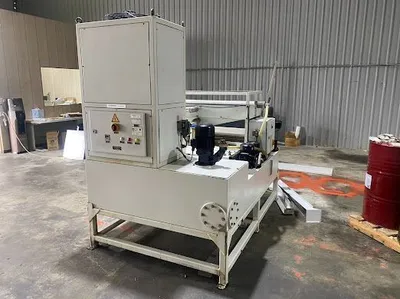

paperband filtration unit for Ferrous & non ferrous materials
scraper type conveyor
English language option
hob arbors (several sizes)
oil chiller
books and manuals

Note: Machine is presently packed and crated for shipment !!

contact us for further information and specifications. this machine is
an excellent opportunity and rarely hits the market this new condition
visit our website and request a formal quote and pricing on line . we
look forward to quoting you at www.pisellient.com or contact rich to
make an offer prior to removal and shipping ,

sincerely
rich Piselli
rich@Pisellient.com
704 609-0766
