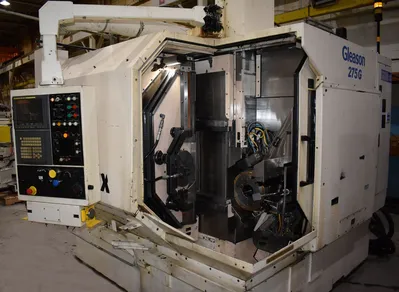

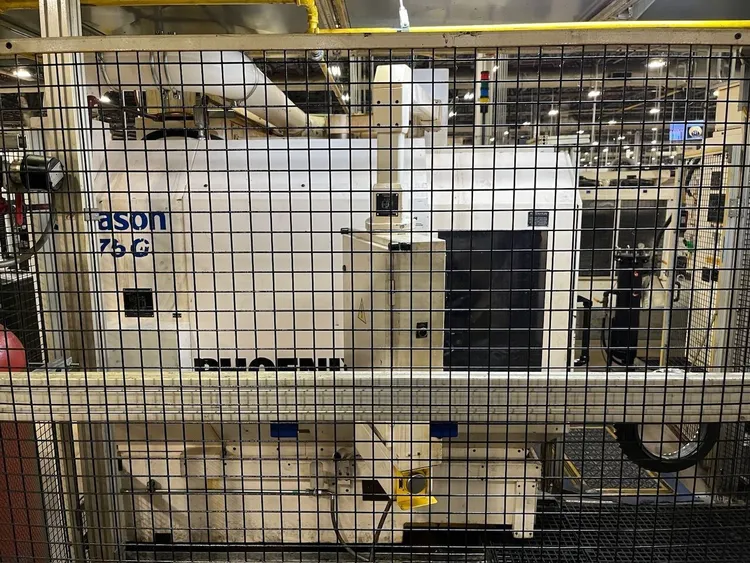

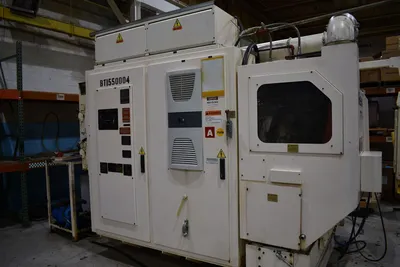

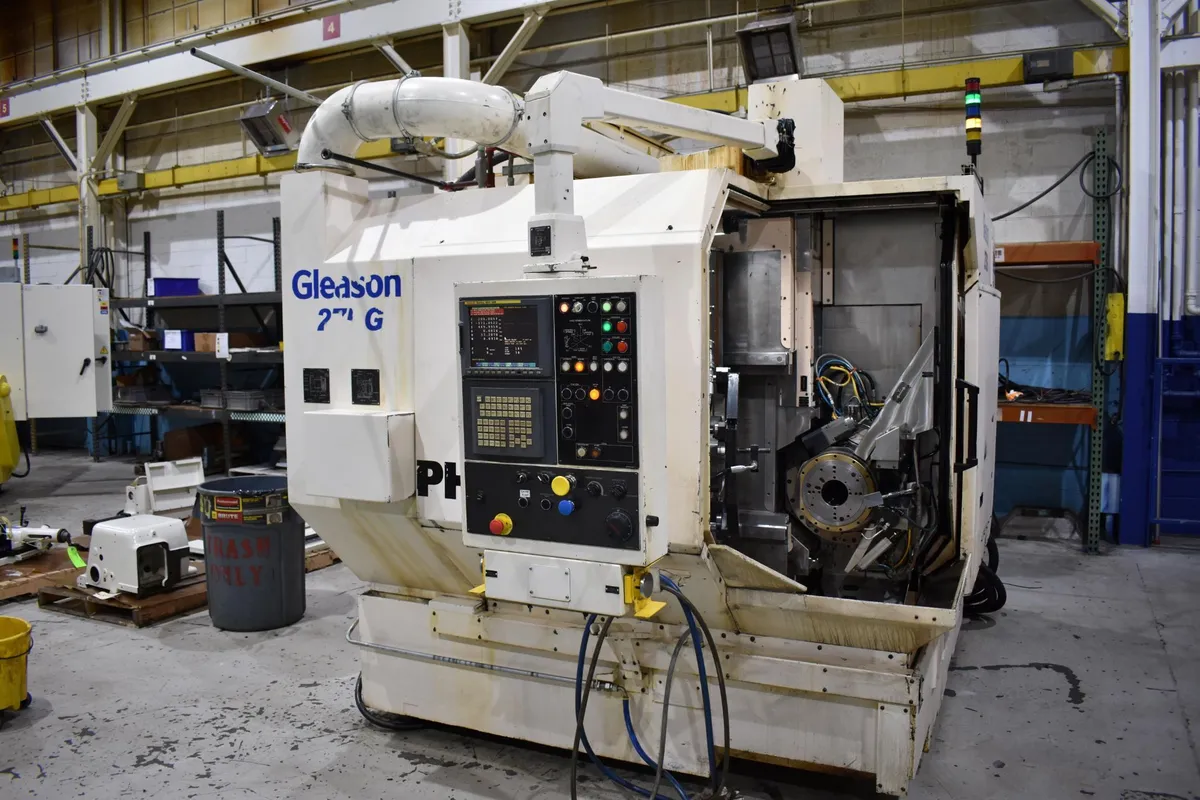

Gleason Phoenix model 275G CNC spiral bevel Gear grinder , 10" diameter capacity , Fanuc 160i-MB controlsexcellent condition under power new 2011

Gleason Phoenix II CNC spiral Bevel (HYPOID) Gear grinder
Model 275-G
s/n 1006506 & 991709
New 2011 & 2009

Machines are presently running under power in plant. Machines
can be inspected in Excellent runing condition . we highly
recommend a prompt inspection as machines share a filtration unit!

Machine specifications :
Ratio transmission : 10:1
Minimum number of teeth : 3
Maximum number of teeth : 200
Range of tooth size : 20 mm
Tooth width maximum : 58 mm
Spindle speed : 6000U/min
Work piece spindle speed : 1200U/min
Diameter of tools maximum : 230 mm
Diameter of tools minimum : 69,85 mm
X-axis : 325 mm
Y-axis : 350 mm
Z-axis : 470 mm
B-axis : + 90,1 / - 1 °
Work piece table - Ø : 212,71 mm
Total power requirement : 75 kW
weight of the machine ca. : : 10t
dimensions of the machine ca. : 8' x 12'

Machine is equipped with the following:
Fanuc model 160i-MB cnc controls
Hoffman HSF 200-SE coolant filtration unit
Books and manuals
all necessary items to run machine

please contact us to set up an under power viewing prior to
removal . the machines are in very good running condition .
contact us at www.pisellient.com to receive formal quote on
Line or contact rich Piselli at Rich@Pisellient.com to view
videos available upon request !!

thank you
Richard Piselli
