Gould & Eberhardt model 16H vertical gear hobber , 16" diameter , diff , infeed , tailstock w/ change gears , s/n 3355A1

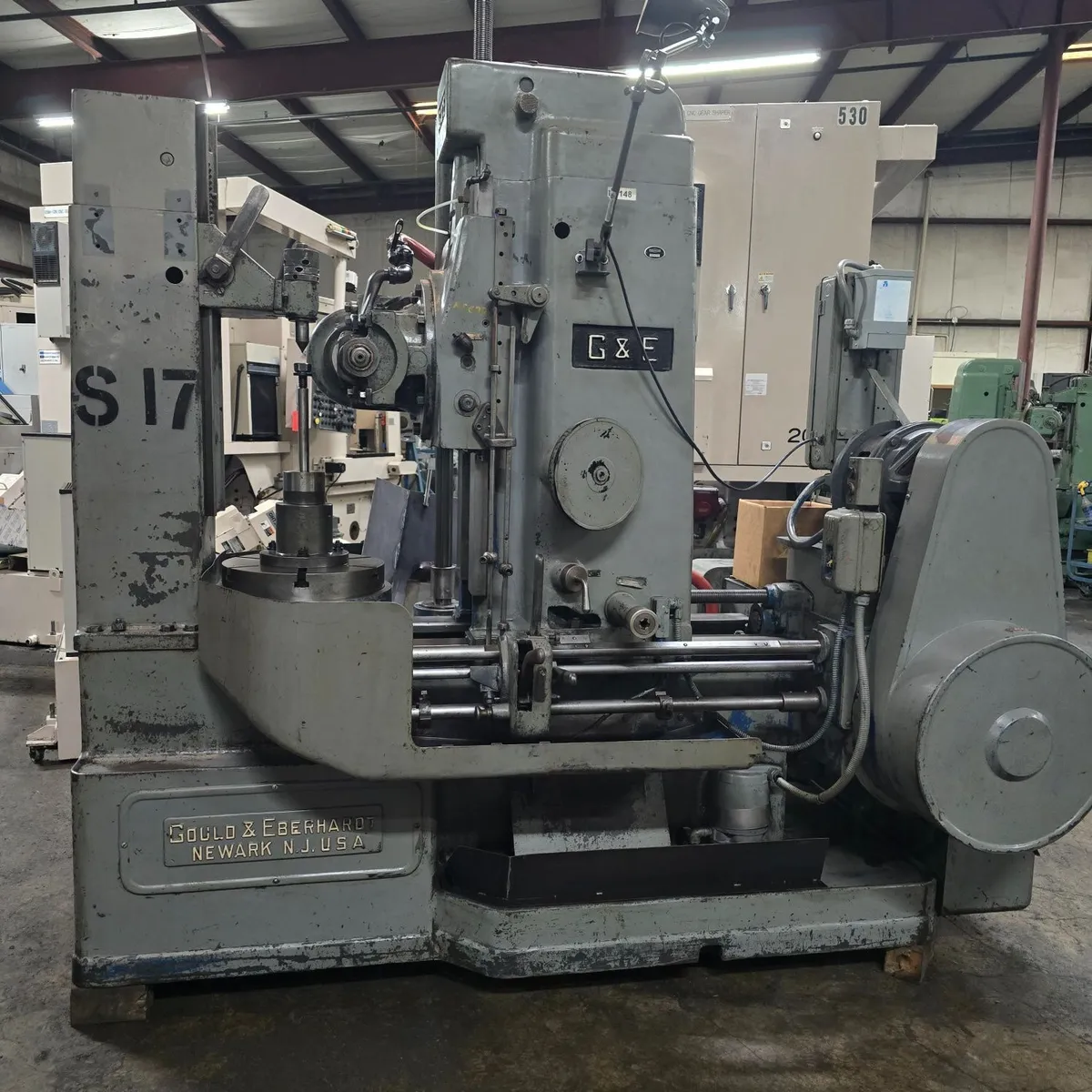

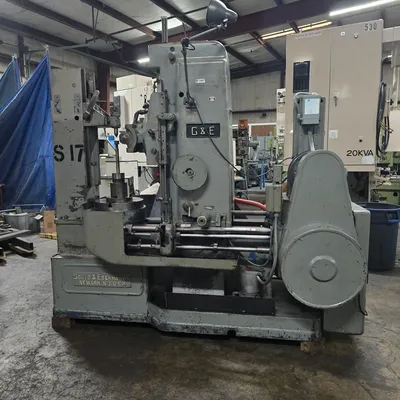

Gould & Eberhardt Vertical Gear Hobber
model 16H
s/n 3355A1

Good little job shop vertical Gear Hobbing Machine
perfect for spur Helical and worm gears

general machine specs to follow:
Max diameter w/ support 16"
Max face width 10"
Max pitch 3.5 DP
Max hob diameter 5"
Diameter work table 14"
Min center hob/ work 0"
hob speed range 50-300
main drive motor 5 HP
floor space 79" x 100"
machine height 80" tall
machine weight 8,500 lbs

Machine equipped with the following
1 hob arbor
Differential
Infeed
Lever type controls controls
tailstock support for pinions
Misc change gears
manual

Machine can be inspected under power in our Statesville NC plant
machine can be put under power for inspection with proper notice
Please se this machine on line at WWW.PiselliEnt.com or or to
request formal quote on line . many machines in our stock

thank you
