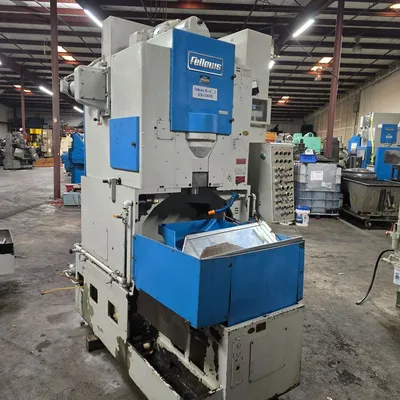

Fellows model 10-4 vertical gear shaper 13" diameter 4" stroke, , 3" riser,, hyd table clamping, good condition gone through s/n 34475

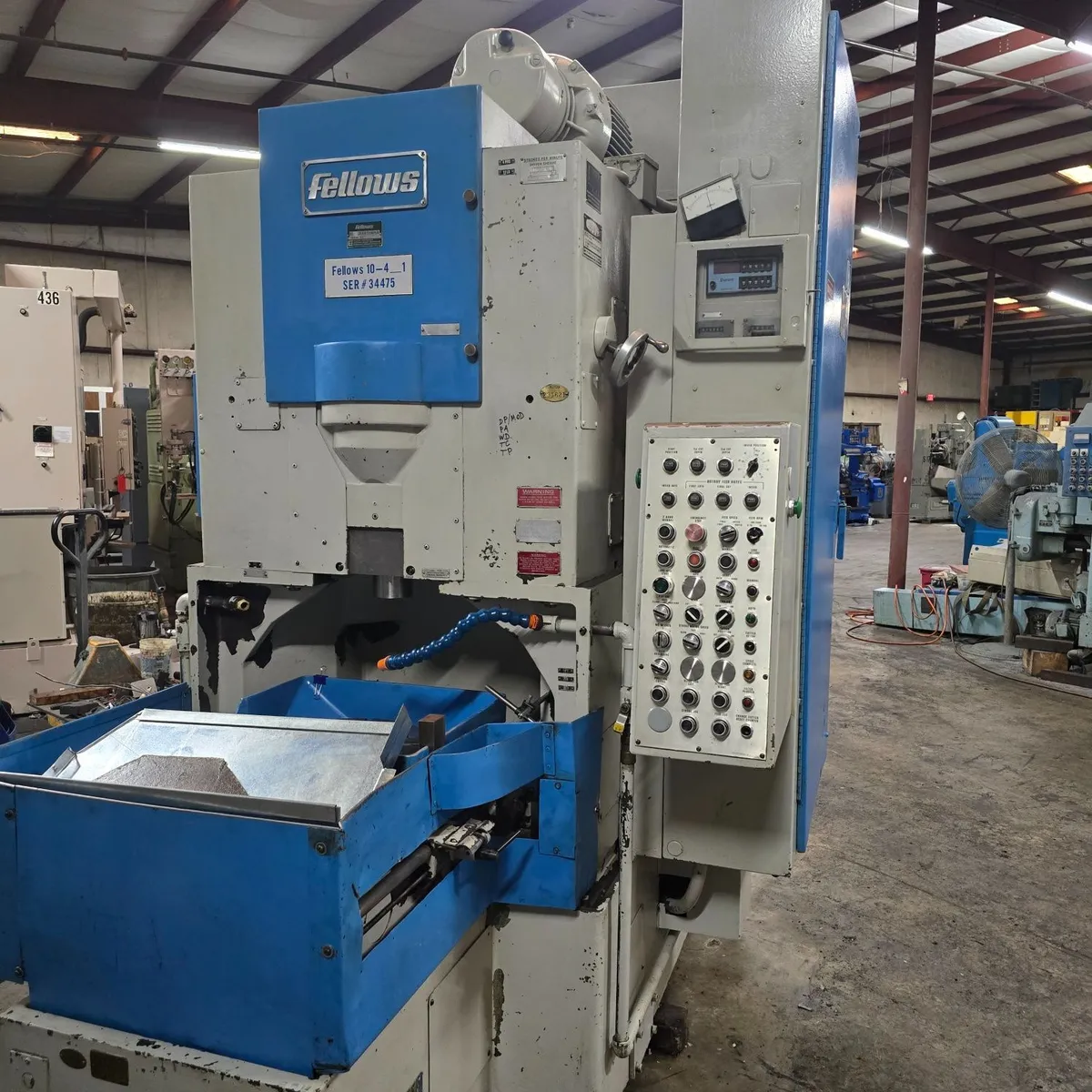

FELLOWS Vertical Gear shaping machine
Model 10-4,  S/N 34475

Machines are to be gone through by Piselli Enterprises and delivered in
excellent working condition. Machine will be put under power and gone
through , tested , and repaired as required . We know our fellows product

Machine specifications are as follows:
Max. External & Internal Pitch Dia 10-13"
Max. Face Width, External 4"
Max. Diametral Pitch, Spur 4 DP
Max. Diametral Pitch, Helical 5 DP
Bore through work spindle 5.875"
Spindle Diameter 3.543"
Distance between work table and cutter spindle 13"
Max. Helix Angle with Standard Guides 45 degrees
Max. OD of Fixture 19"
Dimensions 119"L x 97"H x 53"D
Approx. weight 11,000 lbs.

MACHINE IS EQUIPPED WITH:

3" Riser
4" Stroke Capacity
hyd table clamping
Cutter at Top
Hydraulic Tank
1 Cutter Adapter
Misc guarding
Misc. Change Gears

Machine can be inspected in very good condition with proper notice.
Give us a call today for more info and to learn about our refurbishing
program. visit our website at WWW.Pisellient.com to see more photos or
request a formal quote on line . contact Rich piselli to set up an
under power inspection at Rich@PiselliEnt.com

Thank you
richard piselli
704 609-0766
