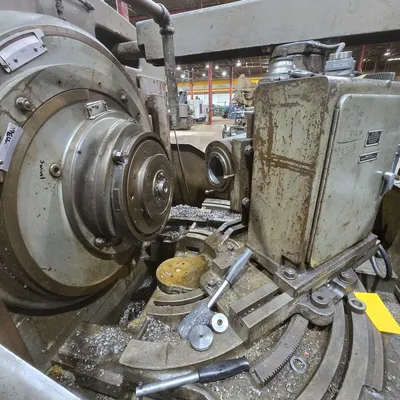

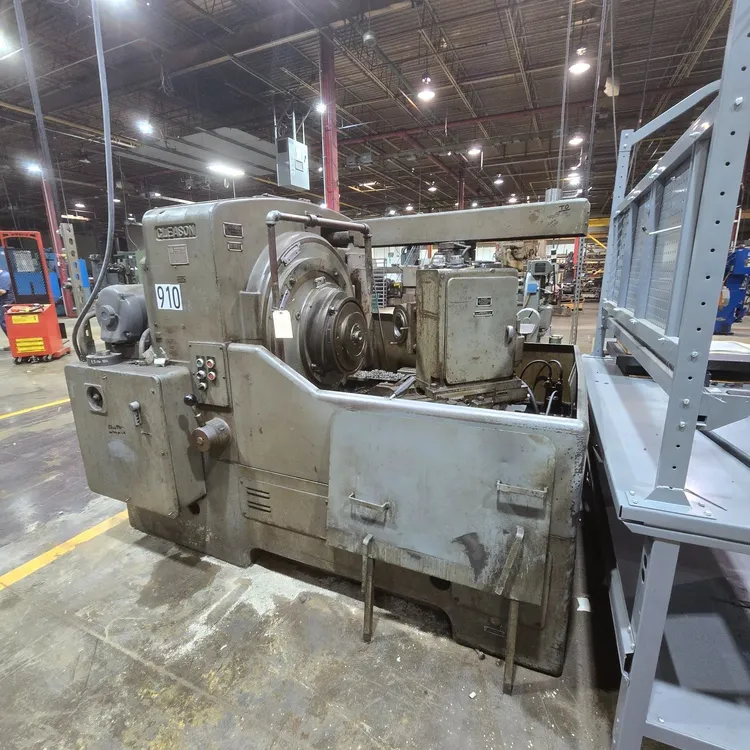

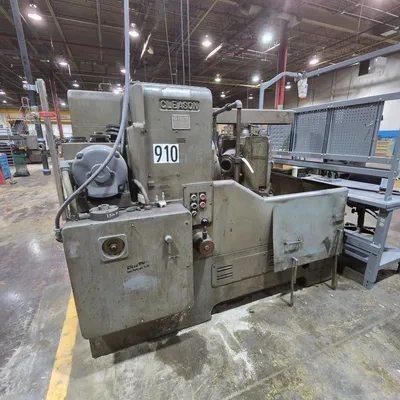

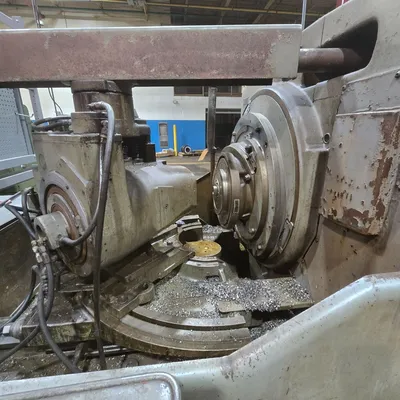

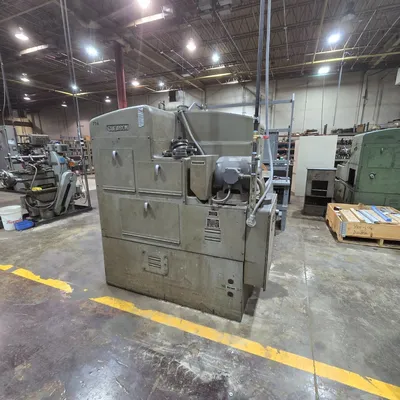

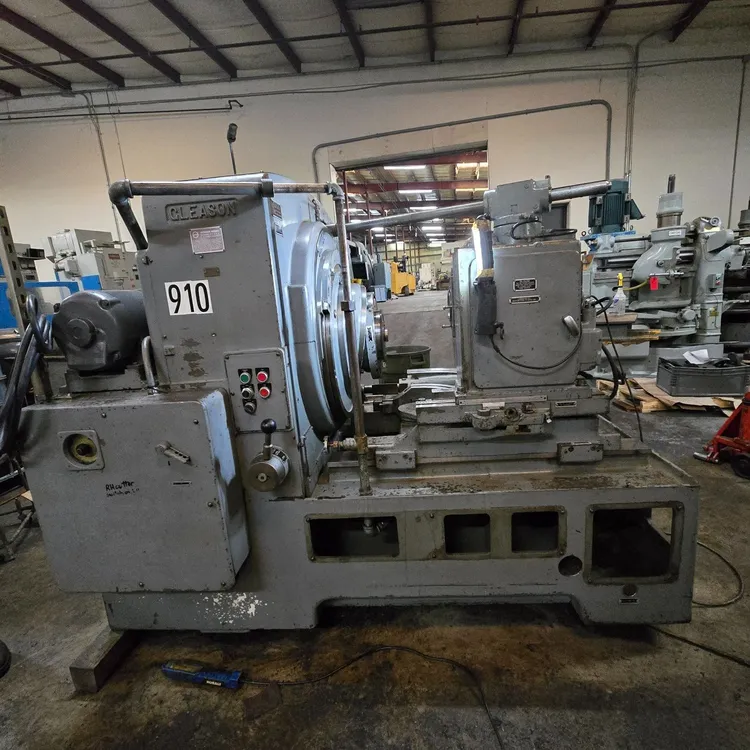

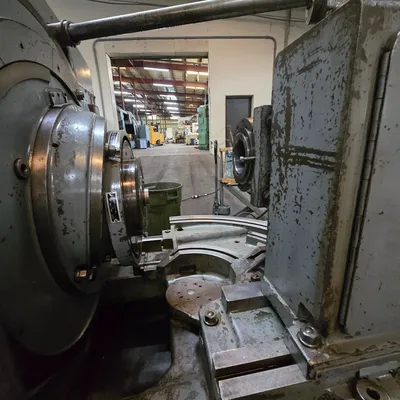

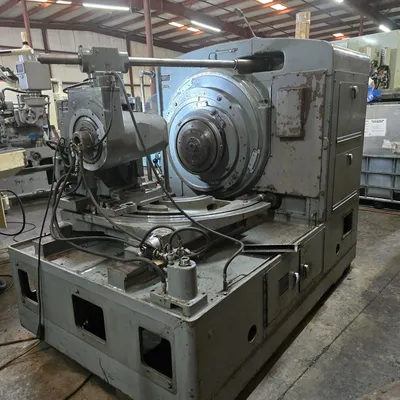

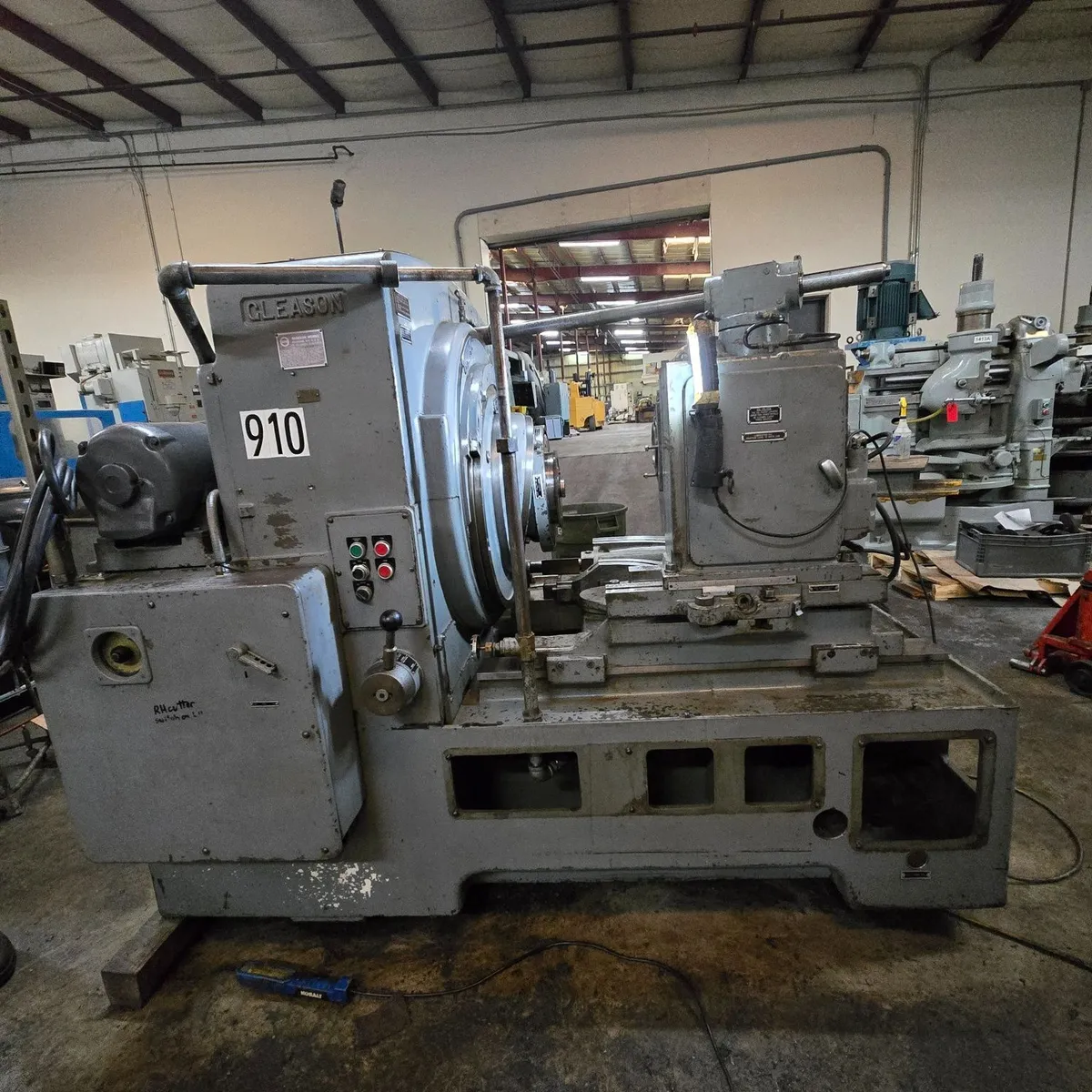

gleason Model 106 Hypoid gear Generator , very good mechanical condition , W/ Helical motion s/n 603513
Gleason Spiral Bevel gear Generating Machine

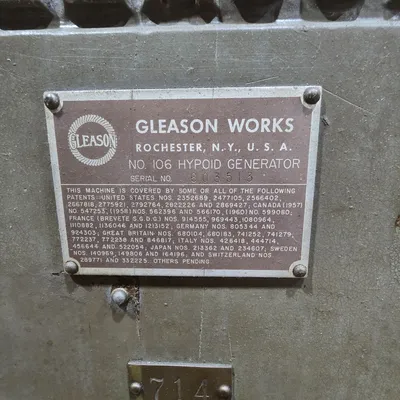

Model 106

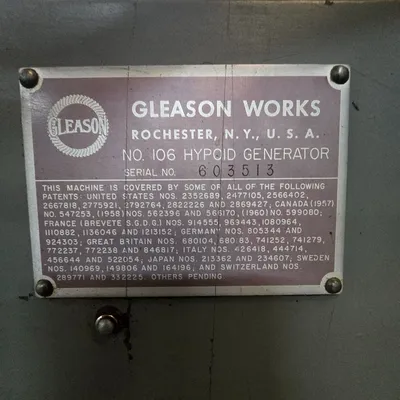

s/n 603513
gone through by piselli ent inc
Machine is in very good working condition for the manufacturing
of spiral bevel Gears .
SPECIFICATIONS:
Max. Cone Distance.....................................................4.25"
Extreme Ratio..........................................................10:1
Gear Pitch Diameter:
30 degree Spiral Angle...............................................10:1.5"
30 degree Spiral Angle...............................................2:17.5"
30 degree Spiral Angle.................................................1:16"
Coarsest Diametral Pitch..................................................4
Max. Full Depth....................................................... .625"
Max. Full Width........................................................1.25"
Number of Teeth.......................................................5-150
Work Spindle Taper...................................................No. 39
Diameter of Taper Hole at Large End.................................3-29/32"
Taper per Foot........................................................39/64"
Depth of Taper............................................................6"
Diameter of Hole thru Spindle........................................2-7/16"
Work Head Settings, Offset Below & Above Center...........................3"
Max. Distance Machine Center to Spindle Nose..............................9"
Min. Distance Machine Center to Spindle Nose...........................1.25"
Range of Cutter Speeds...........................................54-413 RPM
Range of Feeds (Seconds per tooth).................................5-73 sec.
Approx. Floor Space................................................84" x 61"
Floor Height.............................................................66"
Approx. Weight...................................................15,500 lbs
THIS MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Finishing Machine

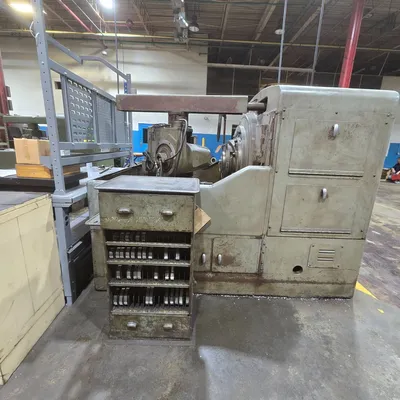

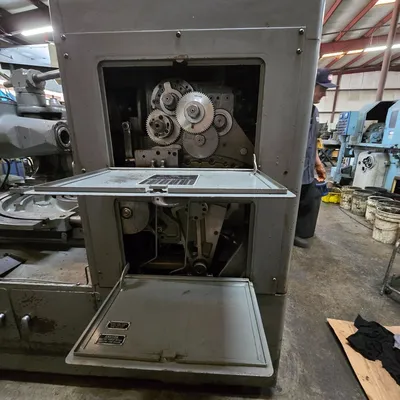

* Misc. Change Gears
* assortment of change gears
* manuals supplied with machine
Machine can be inspected in our North carolina plant under power
visit www.pisellient.com for more information on other gear machines
contact Rich Piselli today rich@pisellient.com
