Mitsubishi model SE25A CNC Gear shaper 10" diameter , chip conveyor , fanuc 32Imb control , new 2014

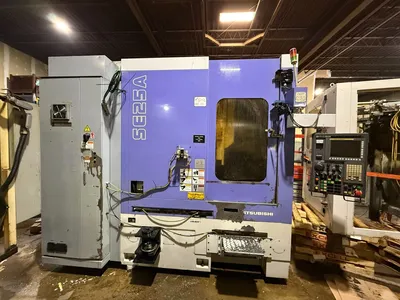

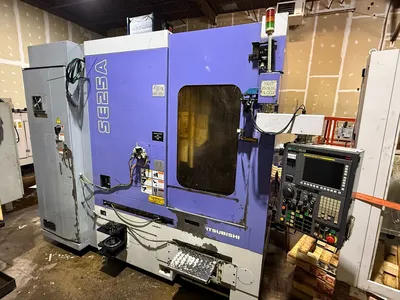

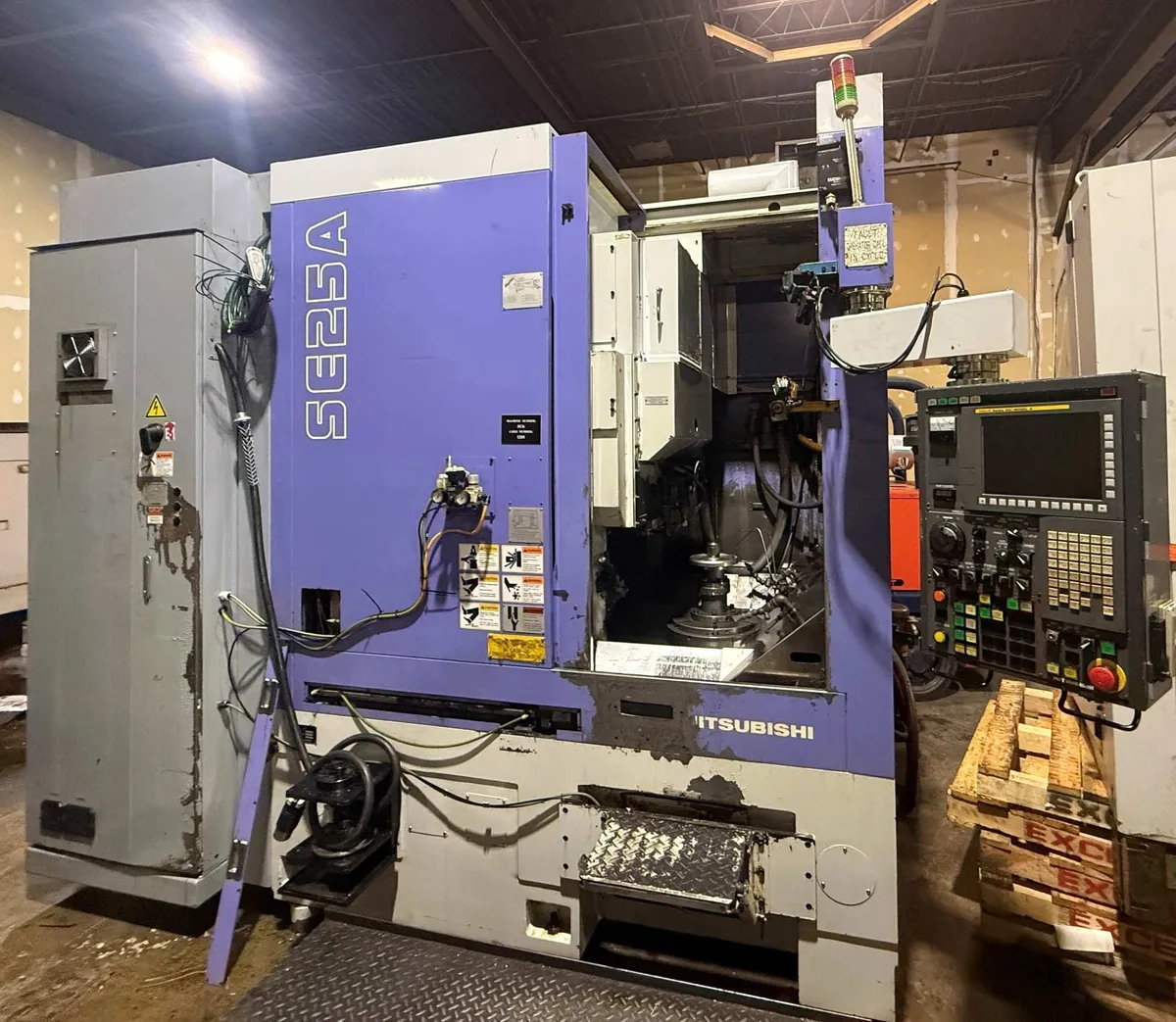

Mitsubishi CNC Gear Shaping machine
Model SE25A
s/n SE25271C4
New 2014
w/ Fanuc 32I Model A controller

this machine has been removed from running service . it can be
inspected in customers warehouse prior to shipping to our NC shop.
These Mitsubishi 4-axis CNC Gear Shaping machines rarely hit the used
market. they are excellent cnc gear shapers that can be run in the manual
load or fully automatic loading cycles . Contact us to learn more about
this machine .

Machine specifications are as follows:
Maximum cutting diameter 250 mm / 10"
Maximum Face width 60 mm / 2.36"
maximum Modul 6 modul
cutter stroking speeds 300 - 1800 spm
cutter spindle diameter 90 mm / 3.54"
Rapid traverse 393.70 IPM

Machines are equipped with the following
Fanuc 32I Model A 4 axis cnc controls
Number of cuts 1-4
manual or Auto loading
hydraulic table clamping
Auto door
mag chip conveyor and tank
cutter adaptor
spur guide
machine manuals and documentation

Come inspect this machine in Toronto prior to shipping to our USA Plant.
contact Rich Piselli today to set up and under power inspection at 704 609-0766
or Visit WWW.PiselliEnt.com to view this machine or other cnc shapers
in our inventory!!!

thank you
Rich Piselli
704 609-0766
