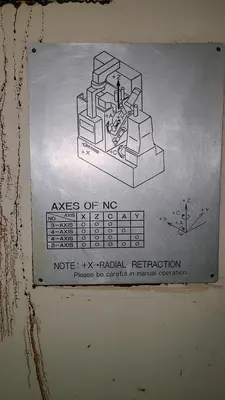

mitsubishi Model GC-20 cnc gear hobber , 6 axis 200 mm diameter capacity , Fanuc 16-M controls new 1994

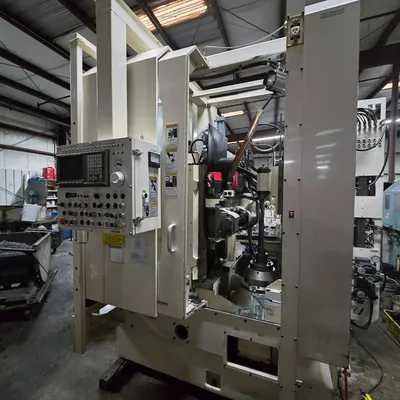

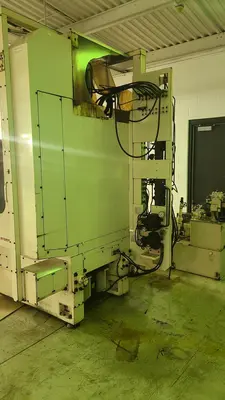

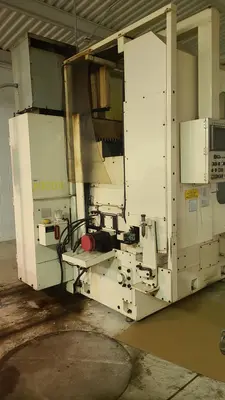

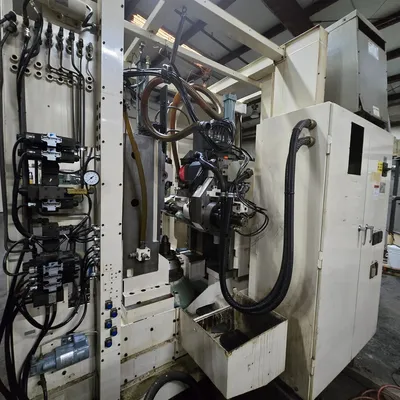

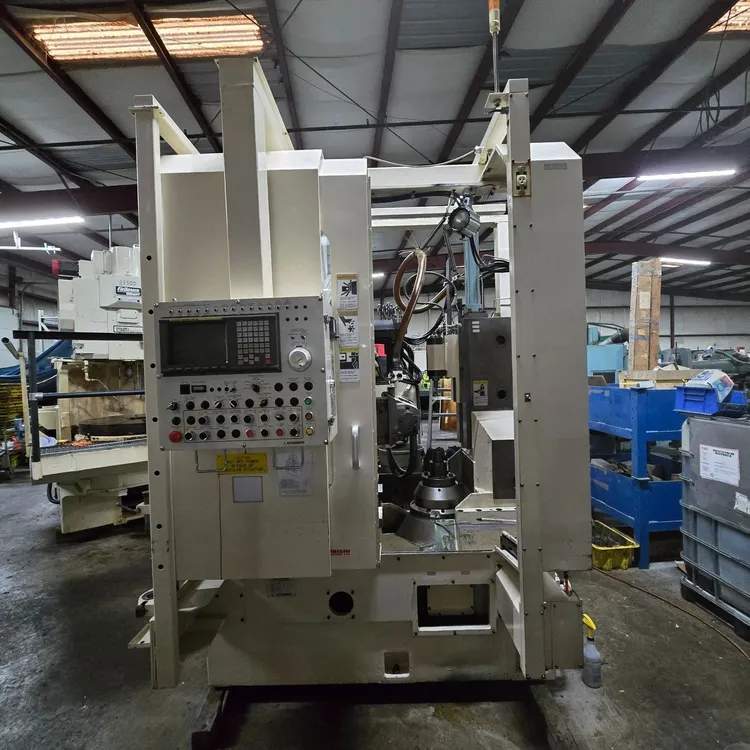

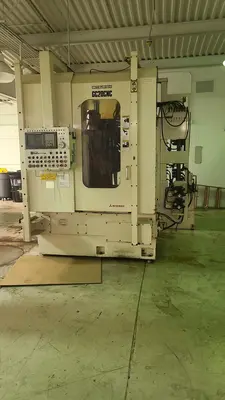

Mitsubishi CNC Gear Hobbing machine

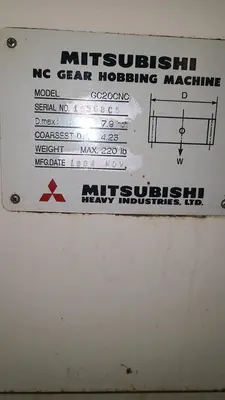

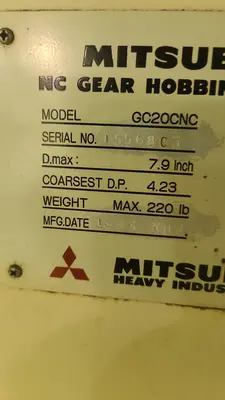

Model GC-20
s/n will advise
Delivered New in 1995

This Mitsubishi Gear hobber was purchased from a school which is not
planning on using it. the Machine is in good running condition and can
be inspected prior to its removal.

Machine specifications are as follows:
Max Diam capacity..................................8"
Max Pitch..........................................4 DP
Max face width.....................................10"
Dist range between hob spindle & table center......5.9"-15.9"
Max hob diameter...................................6"
Max hob length.....................................9"
Max hob spindle speed..............................150-1000 RPM
Max hob swivel.....................................45 deg +/-
Max table speed....................................150 RPM
Max part weight....................................220 lbs
Main motor.........................................10 HP
Machine weight.....................................14,000 lbs
Machine dimensions.................................9' x 10' deep

Machine is equipped with the following:

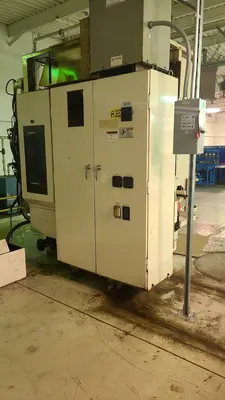

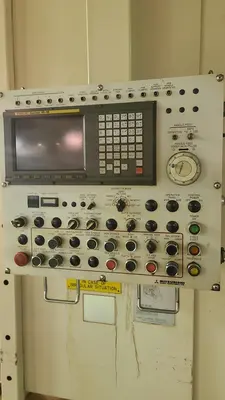

Fanuc 16-M  CNC Controls motors and drives
Auto door

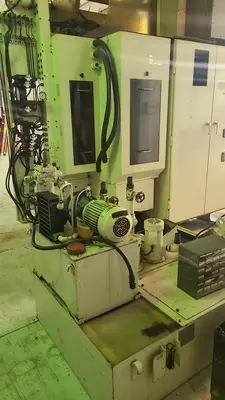

chip conveyor & coolant tank (TBD)

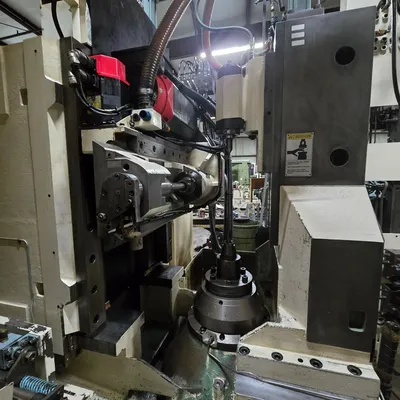

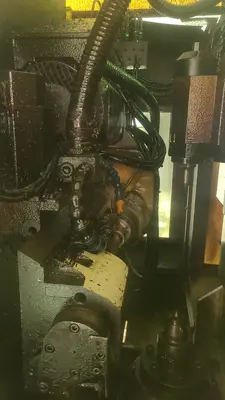

hob arbor
tailstock
full programing cycles
books and manuals

Note: Machine can be inspected under power for a short time only in plant.
Machine is connected to power but not fully cycling as oils have not been put
in machine as they never fully put in service for training

Please contact us today to set up a quick inspection as the machine is priced
to move!

sincerely

Richard Piselli
704 609-0766
