Pfauter Model P-1000 4 -axis CNC Gear hobber , 39" diameter cap, tailstock , fanuc controls , Retrofitted in 1996

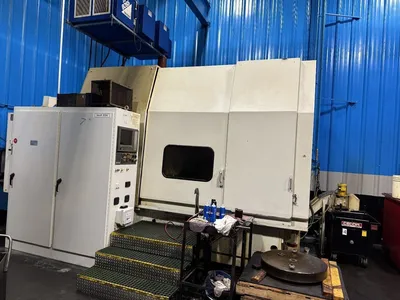

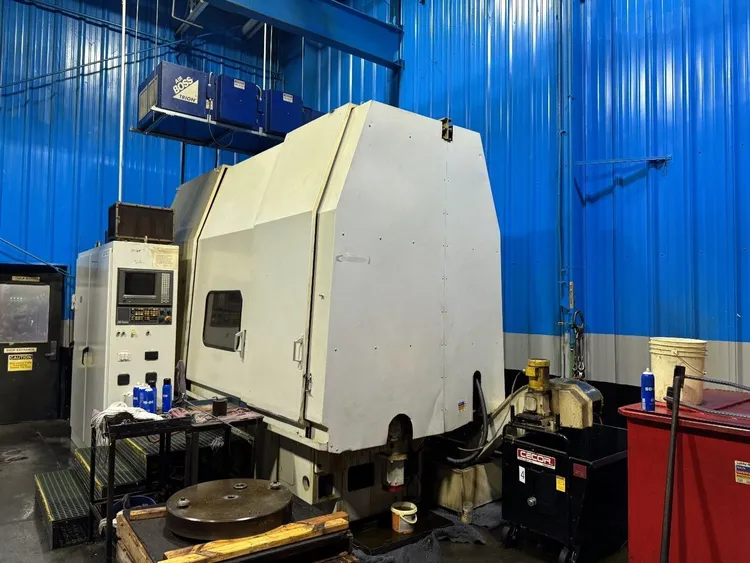

Pfauter CNC Vertical Gear Hobber
Model P-1000
s/n will advise
retrofitted w/ 4 axis CNC controls in 1996

Machine has just been removed from Running service at customers location
the machine was running good parts andwe have a video of the machine
prior to disconection and securing for transport.

INCH METRIC

MECHANICAL SPECIFICATIONS:
Pitch rating 1.8 DP 14 Mod
Maximum workpiece diameter 39.37 in 1000 mm
Worktable diameter 30.708 in 780 mm
Work head spindle bore 7.087 in 180 mm

X Axis (Radial)
Minus Travel 2 in 50 mm
Plus Travel 24.6 in 625 mm
Travel Distance 22.637 in 575 mm
Maximum Travel Rate 100 in/min 2500 mm/min

Y Axis (Tangential)
Minus Travel -3.07 in 78 mm
Plus Travel -10.94 in 278 mm
Travel Distance 7.874 in 200 mm
Maximum Travel Rate 60 in/min 2500 mm/min

Z Axis (Axial)
Minus Travel 8.66 in 220 mm
Plus Travel 28.346 in 720 mm
Travel Distance 19.3127 in 500 mm
Maximum Travel Rate 50 in/min 2000 mm/min

C Axis (Table)
Minus and Plus Travel Continuous
Travel Distance Continuous
Maximum Travel Rate 22 RPM

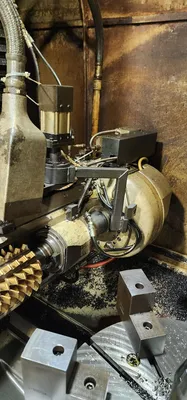

B Axis (Cutter)
RPM Minimum 30 RPM
RPM Maximum 180 RPM

Maximum hob diameter 8.267 in 210 mm
Maximum hob length 9.449 in 240 mm
Maximum hob shift travel 7.874 in 200 mm
Machine Weight 27,227 lbs 12,500 kg
Plant power 460 VAC 60 Hz
Length 210.2 in 5340 mm
Width 174.4 in 4430 mm
Height 176.5 in 4485 mm

Machine is equipped with the following :

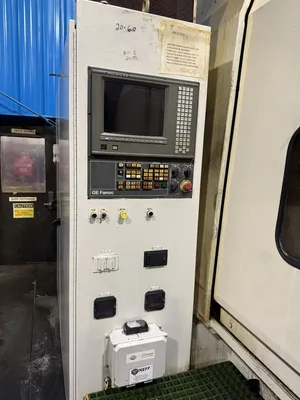

Fanuc model 15 MB controls
Number of CNC;
controlled axes 4 (X,Y,Z,C)
controlled spindles 1 (B)

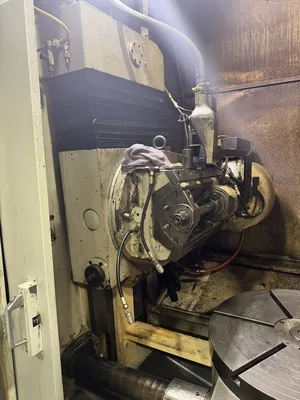

- Manually controlled swivel of hob head (A-axis)
Hob arbors
Tailstock

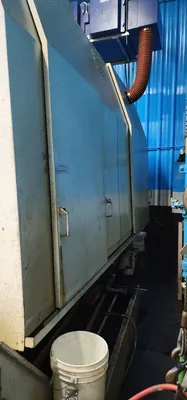

full guarding
chip conveyor
coolant tank
stand alone electrical panel
books and manuals

Machine has been removed from service but a video showing the machine
running is available . we have disconnected the machine and its ready
to load onto your trucks . our price includes freight to your loaction
prior to shipping to our location in North carolina. let us know if you
can move quickly . visit our website for more equipment opportunities
at WWW.Pisellient.com or contact Rich Piselli At Rich@pisellient.com

thank you
Richard piselli
