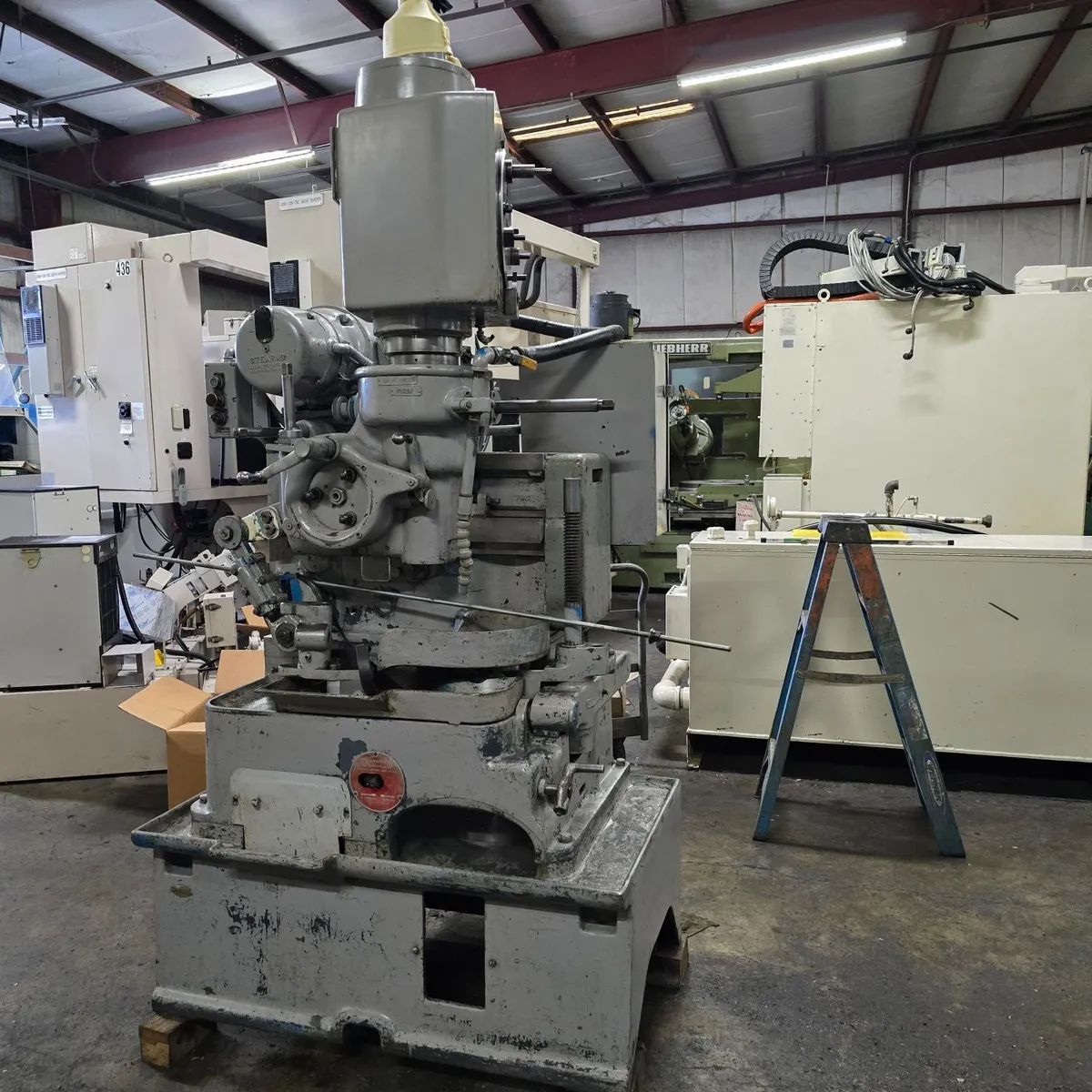

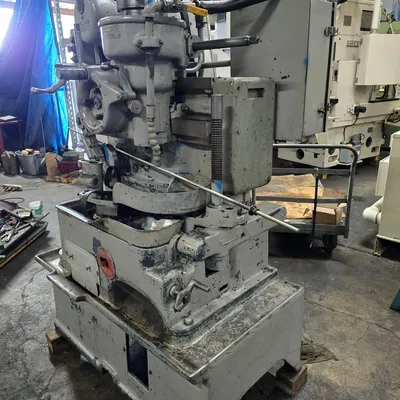

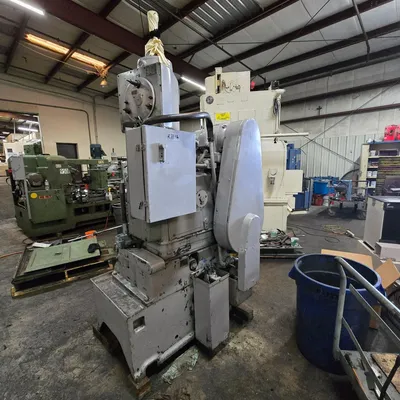

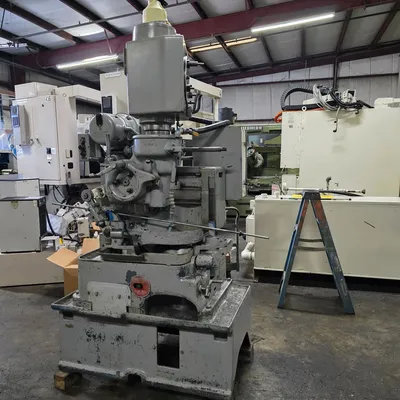

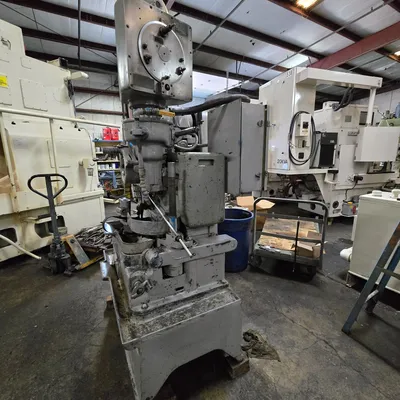

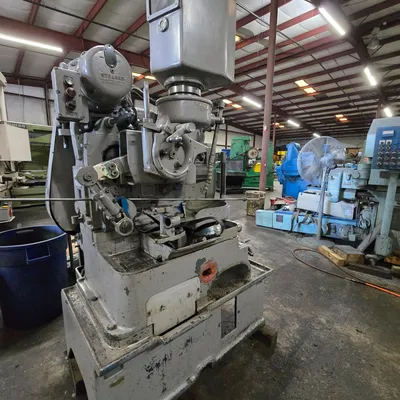

Fellows Guideless model 7125A gear shaper , Adjustable Helical guide , 2" riser , tailstock , special design excellent s/n 26920

Fellows Adjustable Guide Helical shaping machine
Model 7125A s/n 26920 Special
w/ Michigan Tool Adj guideless head option

From Gear Lab prototype shop in Michigan

This special machine was designed to make helical internal and external
gears with a special designed Adjustable sine-bar style head for gears
from 0-60 degrees. A great machine for a design shop or prototype trials
before production . Contact us today for more info !!

Machine specifications are as follows:
*Max Pitch Diameter External..........................................7"
*Max Pitch Diameter Internal......................................5-1/2"
*Face Width External..................................................2"
*Max Face Width Internal..............................................2"
*Max Diametric Pitch -Spur Gears......................................6
*Max Diametric Pitch-Helical........................................6/8
*Max clearance height above table....................................10"
*Max Helix Angle With special Head..........................0-60 degrees
*spindle diameter.................................................2-3/4"
*Table Diameter...................................................5-1/2"
*Table Bore Diameter..............................................2-1/8"

MACHINE IS EQUIPPED WITH THE FOLLOWING:
Special Mechanical Helical guide Mfg by Michigan Tool
2" riser assembly
2-3/4 spindle diameter
Internal attachment extension arm
Hollow spindle
Tailstock assembly
2-cut Cam? (TBD)
Trabon Forced lube system
Safety switches on covers
misc change gears
Misc tooling

Machine can be inspected in our Statesville facility with proper notice.
Machine will be tested under power and gone through by our service techs.
Machine backlashes will be adjusted per factory processes to bring machine
back to original accuracies or best possible condition . Machine will be
final tested prior to shipping.
Contact us today to inspect this machine at your earliest request
contact rich Piselli for more info on this machine at rich@pisellient.com
or visit our website at WWW.PISELLIENT.COM for this and other Gear Machines.

*Inspect all machines under power in our Statesville, NC Plant!!
