fellows model FS400/125 Hydrostroke cnc gear shaper , 16" diameter capacity 5" stroke, fanuc controls s/n 37109

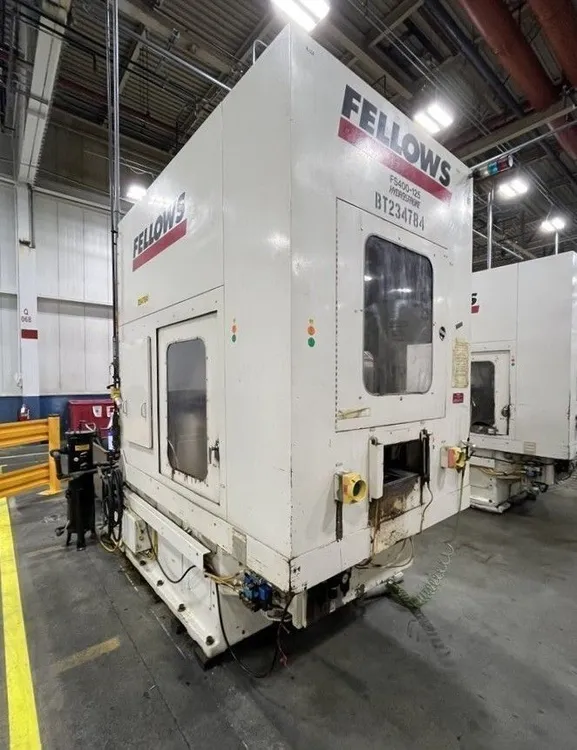

Fellows CNC Hydrostroke Gear shaping machine
Model FS400-125
s.n 37109

machine to be brought into our shop and put under power. The
machine can be inspected under power!
machine corresponds to capacities and specifications
below , we recommend a prompt inspection before removal

MACHINE SPECIFICATIONS:
Max pitch diameter (External) 15.7"
Max pitch diameter (Internal) 15.7"
Max face width 5"
Maximum Diametrical Pitch 3.5 DP
Stroking Speeds 20 to 1000 SPM
Worktable Diameter 20"
Max distance under cutter spindle to table 17''
Spindle Diameter 4.13"
Max spindle travel 6.7"
Machine Net Weight, Approx 20,000 lbs
Dimensions (L x W x H) 12' x 7' x 8'

Electrical System:
* Fanuc motors & drives .
* Fanuc 15M Control
* this machine has a helical guide
* chip conveyor

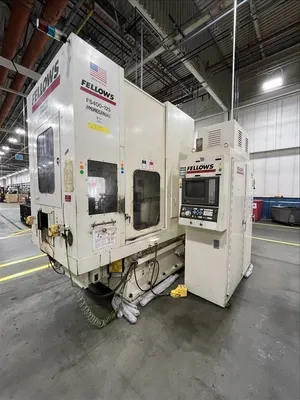

* Electrical panel with operator screen
* 460 Volt, 60 hz, 3 phase (TBD)
* air condition system
* full guarding

Control Features:
* Fanuc controller 15 MB
* Color CRT
* The CNC will control the following axis:
- C Axis work table rotation
- X Axis work table infeed
- B Axis cutter spindle rotation
- Z Axis spindle positioning
- W Axis stroke length
- A Axis cutter spindle speed
* CNC Controller has Macro screens for "operator friendly" question and
answer setups.
* Custom programming available based on customers requirement at additional
cost.

additional tooling and fixtures:

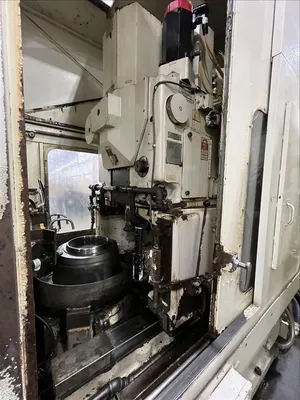

- machine is equipped as photographed

Runoff Criteria:
* To be determined if any

Installation and Training:
* operator training to be quoted at additional cost if needed

Warranty:
* Machine is sold in an as/is condition as inspected under power
* no warranty given
Validity:
* This quotation is valid for 30 days and subject to availability

Payment terms:

100% Upon successful inspection and prior to shipment!
