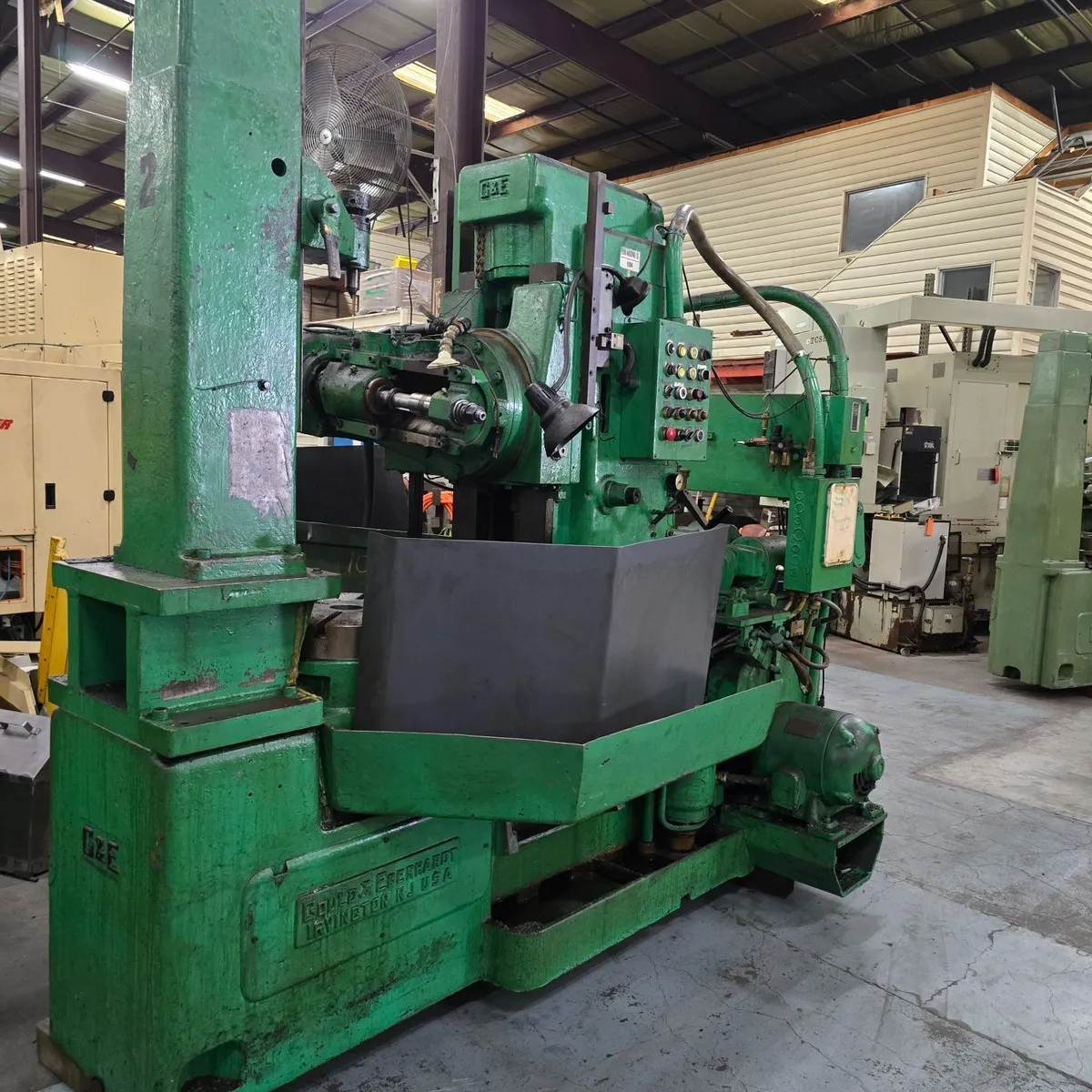

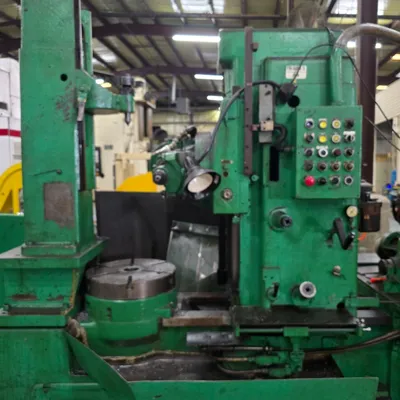

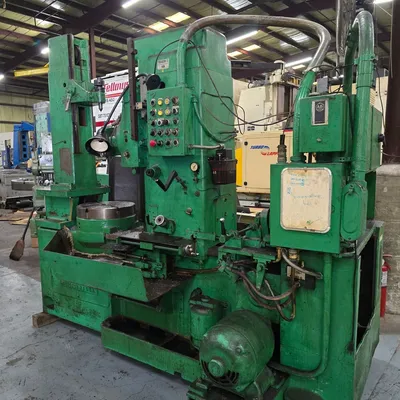

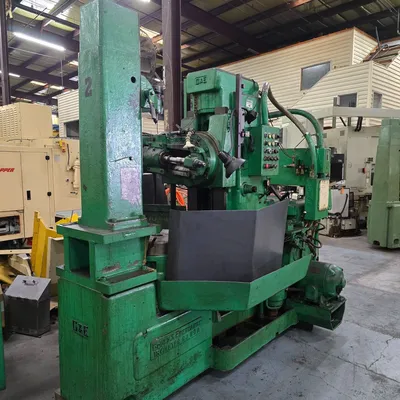

Gould & Eberhardt Model 24H gear hobber , 24" max diameter gear , 18" table high tailstock w/ 44" under center s/n 6535A8

Gould & Eberhardt vertical gear hobber
Model 24H
s/n 6535A8
Standard Hob head, High tailstock

This machine is Equipped standard Head , but has a high tailstock
for very tall parts . it is also equipped with 2-cut cyle feature

Machine corresponds to the following:

MACHINE SPECIFICATIONS:
* Max. DP in Steel 3 DP
* Face Capacity 15"
* Max. Diam. Spur Gear W/Support 18"
* Max. Diam. Spur Gear W/out Support 24" (TBD)
* Min. Centers Work and Hob Arbors 0"
* Max. Diam. Hob 6"
* Diameter Work Table 18"
* Diameter Index Worm Gear 18"
* Hob Speeds 40-240 RPM
* Feed Range .03-.200"
* Main Motor 7 1/2 HP.
* Floor Space Required x Height 67" X 142" X 88"
* Approximate Weight 12,000 LBS

MACHINE IS EQUIPPED WITH THE FOLLOWING:
* standard bevel Drive Hob Head
* Infeed
* crowning mechanical
* 2-cut cycle

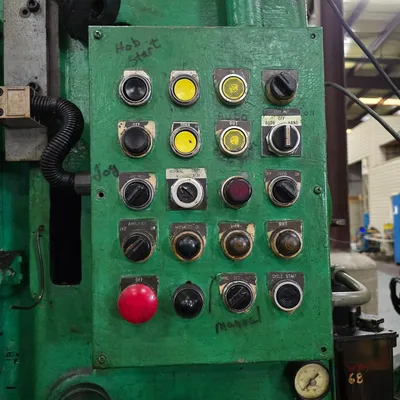

* push button controls
* Tailstock swing away ( w/44" clearance above table)
* Hob arbor 1-1/4" dia
* 10/N
* bijur lube system
* 220 volt
* Misc Change gears and tooling

Machine can be inspected in our Statesville NC warehouse with proper
notice under power . visit our website at wwww.Pisellient.com to so our
vast inventory of gear machines . contact us today for more information
or contact Rich directly at Rich@PiselliEnt.com
