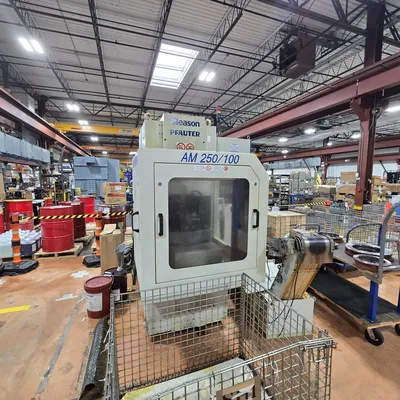

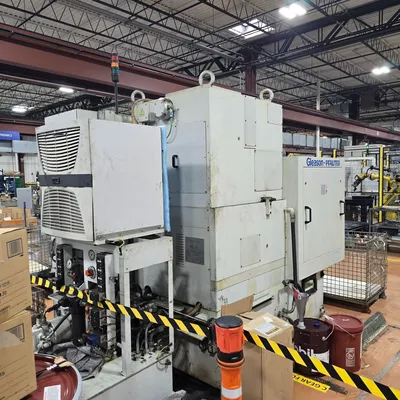

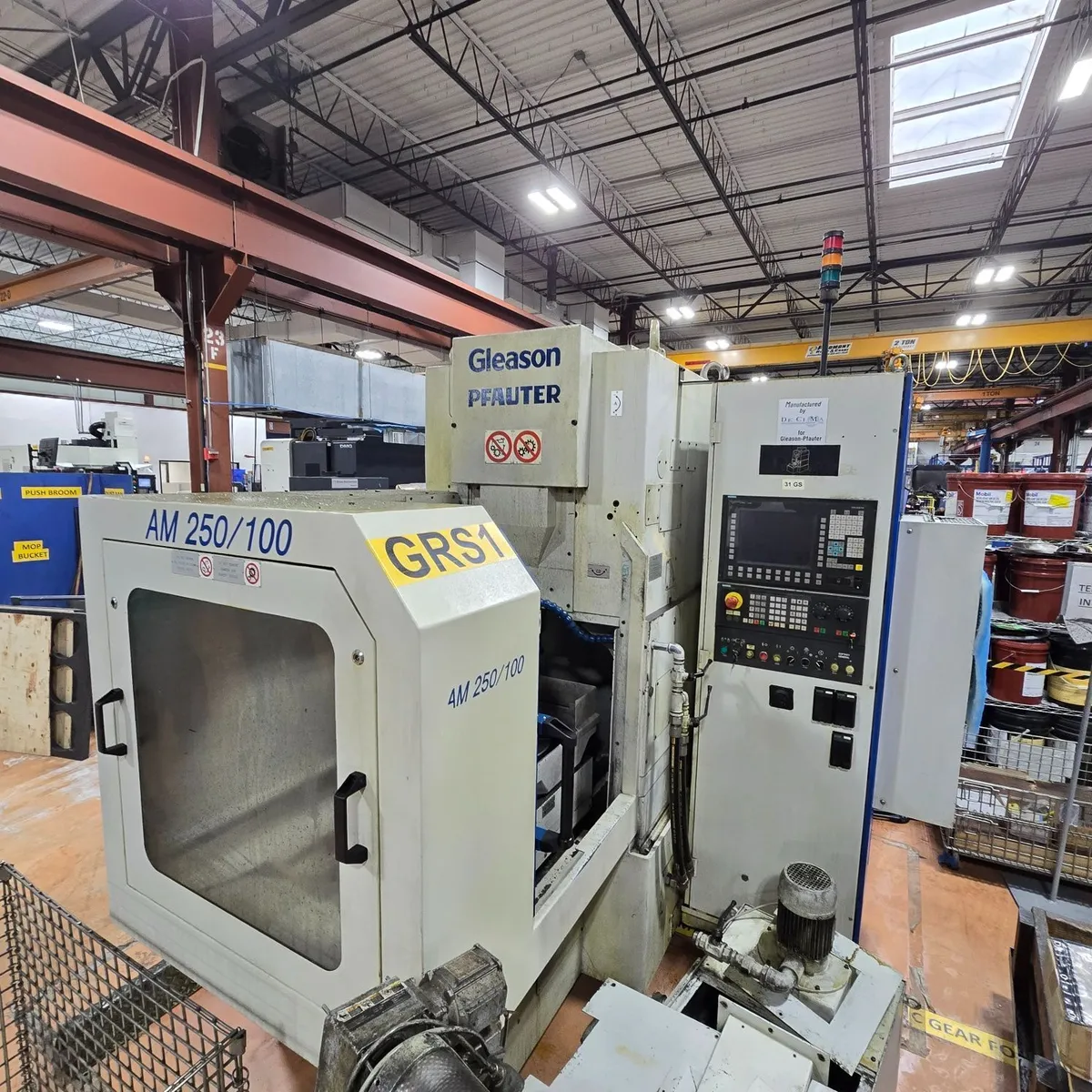

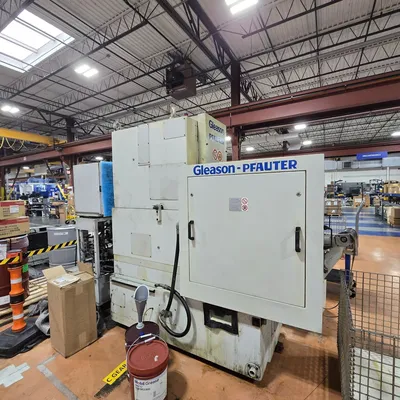

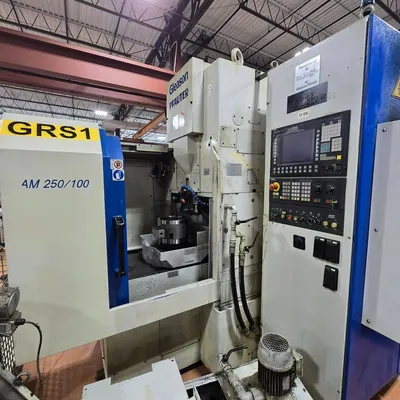

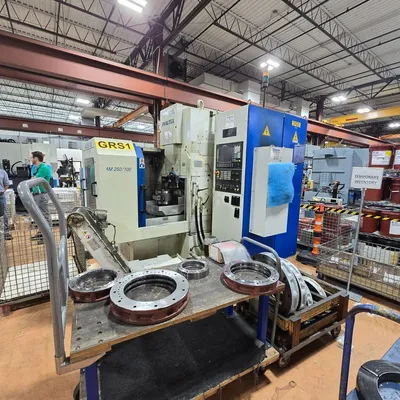

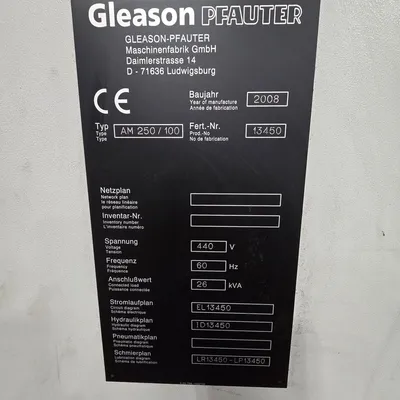

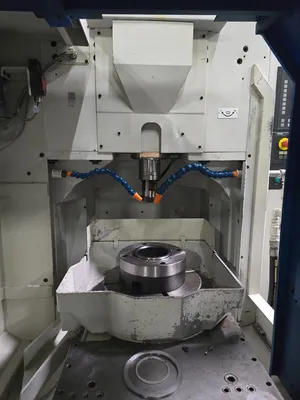

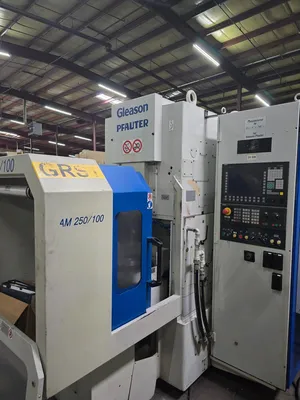

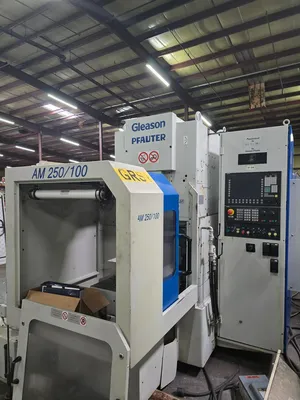

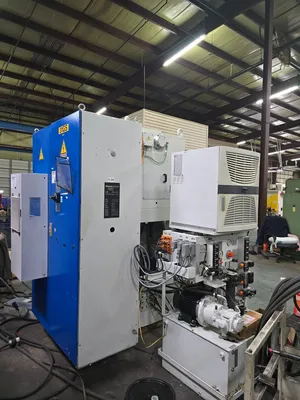

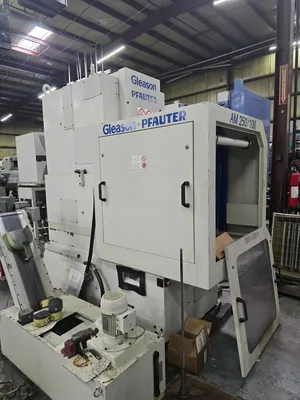

Gleason Pfauter model AM250/100 cnc gear shaper , 300mm Diam., Siemens 840D control , good condition , new 2008

Gleason Pfauter CNC Gear shaper
Model AM250/100
New 2008
very good condition

This machine was built by gleason Pfauter in Italy and is equipped
with Siemens 840 DI control motors and drives, machine can be inspected
for a short time only in plant.

specifications
Max pitch diameter 300 mm (**)
Max workpiece and fixture diameter 450 mm
Max modul 5
Max Face width 100 mm
Infiitely variable stroke rate 85/850 stroke/min
Min /Max center distance -70/+230 mm
Min distance table to spindle upright 223 mm
Max distance table to spindle upright 298 mm
motorized offset of tool spindle +/- 25 mm
Max table load 500 kg./30kg.(w)
Max tool rotation 370 giri/min.
Max workpiece rotation 370 giri/min.
Max tool Diameter 7"
machine weight 7500 kg

(**) diameter may be increased according to the material being
processed and the quality needing to be achieved.

Machine is equipped with the following

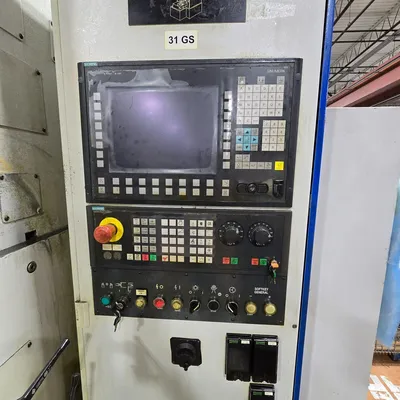

- siemens 840DI cnc controls

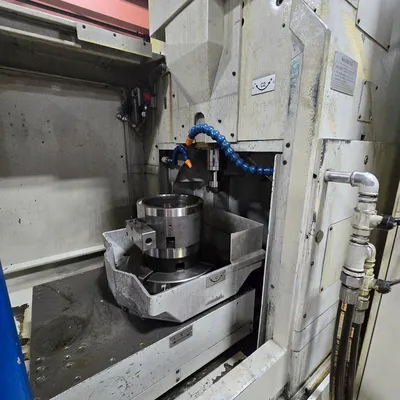

- table clamping
- chip conveyor
- cutter adptor
- full enclosure
- manuals and documentation
- machine software backup

please contact us if you would like to receive a formal quote ,
pricing and delivery . contact rich piselli at Rich@Pisellient.com
for more information or to set up an inspection , or visit our
Website at WWW.PiselliEnt.com for more info and photos on this or
other machines in stock!!
