Luren Model LWT 3080 CNC Thread & Worm Grinding machine, 12" x 32" cap., 6 Axis . W Fanuc controls lots of tooling New 2016

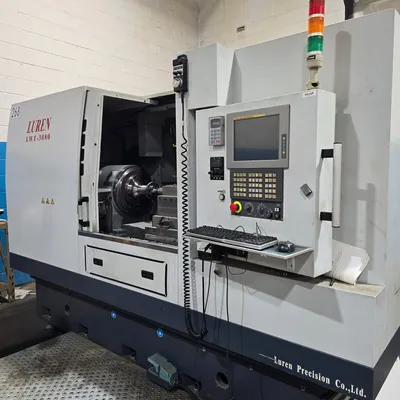

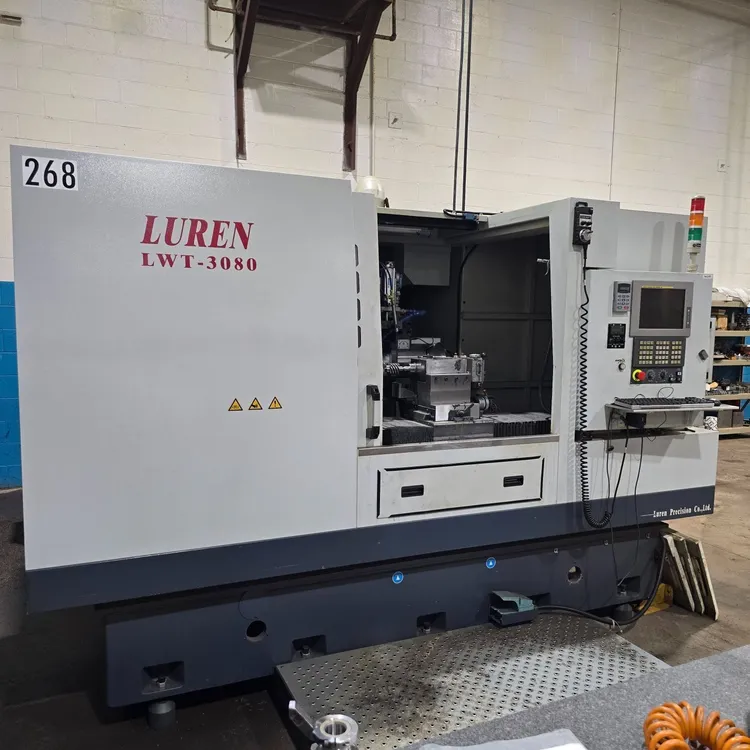

LUREN CNC Thread & Worm Grinding MAchine
Model LWT-3080
s/n will advise
Installed 2016
condition Excellent under power
controls : FANUC 32i model B

This Unique machine can be inspected under power in customers plant
prior to removal. machine is programmed using conversational control
machine is equipped with lots of tooling , grinding, wheels , etc.
Machine looks to be in excellent condition

Machine catalog specifications are as follows:

Min/Max workpiece outside diameter 5mm/300mm
Max Module M12(DP2.1)
Thread range 1-99
Lead Angle range +/- 45 Deg
Pressure angle range 5-30 Deg
Min Distance between centers 80mm (3.1")
Max Distance between centers 800mm (31.4")
Max Distance of part using through bore 1200mm (47.2")
Work spindel through bore 110mm (4.3")
Max Axial slide travel (Z-Axis) 650mm (25.5")
Min/Max dist. between work and grinding spdle 150mm /400 mm
(5.9" / 15.7")
Max Table load w/ workpiece & fixture 80kg (176 Lbs)
Min grinding wheel root diameter 260mm (10.2")
Max grinding wheel diameter 400mm (15.7")
Max grinding wheel width 40mm (1.5")
Max grinding spindle speed 4000 rpm
Drive power of grinding spindle motor 17 kW (22 Hp)
voltage 220V
current requirement 45 Amp
Max Load of machine required 20 kVA
Machine weight 8500 kg (18,700 Lbs)

Machine is equipped with the following:
Fanuc 32i-ModelB cnc controls motors and drives
intelligent software technology w/ user friendly conversation controls
Cnc Dressing of wheels by diamond point or dressing disc.

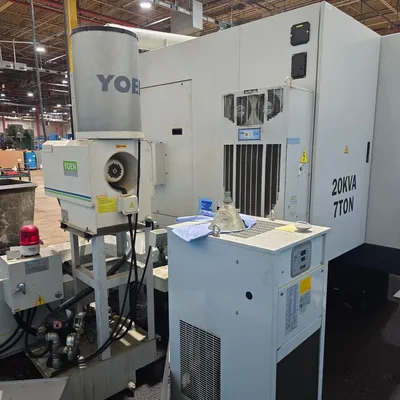

paper band filtration unit
oil chilling system
Full books and manuals
several chucking and work holding fixtures
too many software features to list , see attached Catalog!!!
Lots and lots of tooling , wheels , and misc items for full package

machine can be inspected for a short time only in customers
Plant under power . the machine ctalog goes into more examples of
work which can be performed as well as types of form and different
style parts which can be produced. A $700- $900,000 value today new
at a tremendous cost savings to you !!
