Fellows Model 10-4 2 axis CNC Gear shaper 6"riser Machine was retrotifitted and rebuilt in mid 2000's inquire

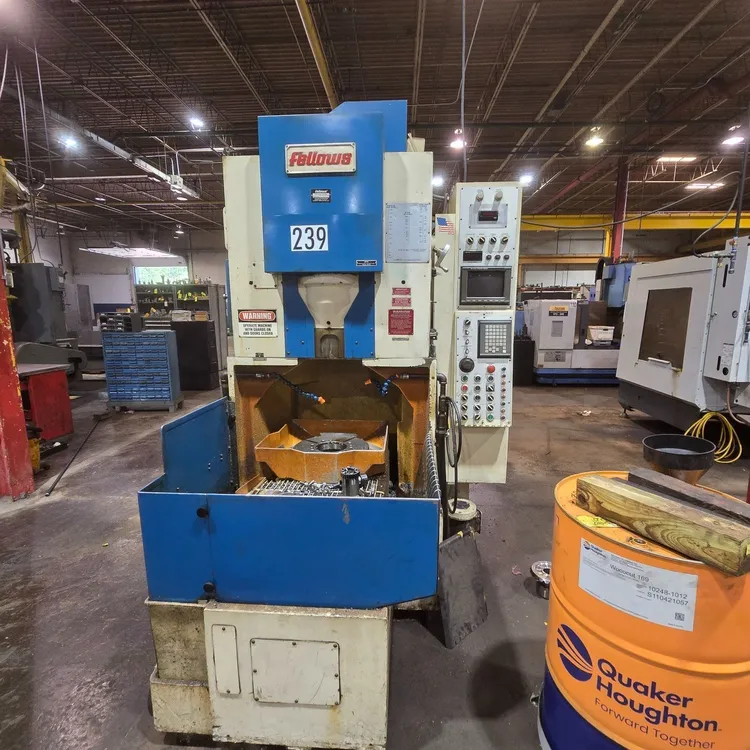

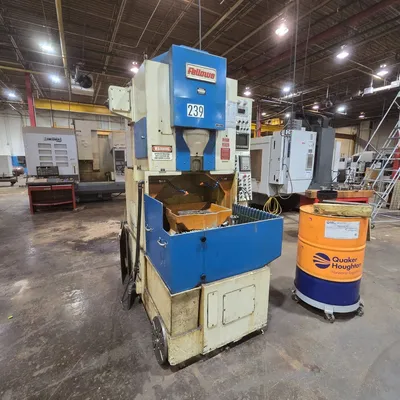

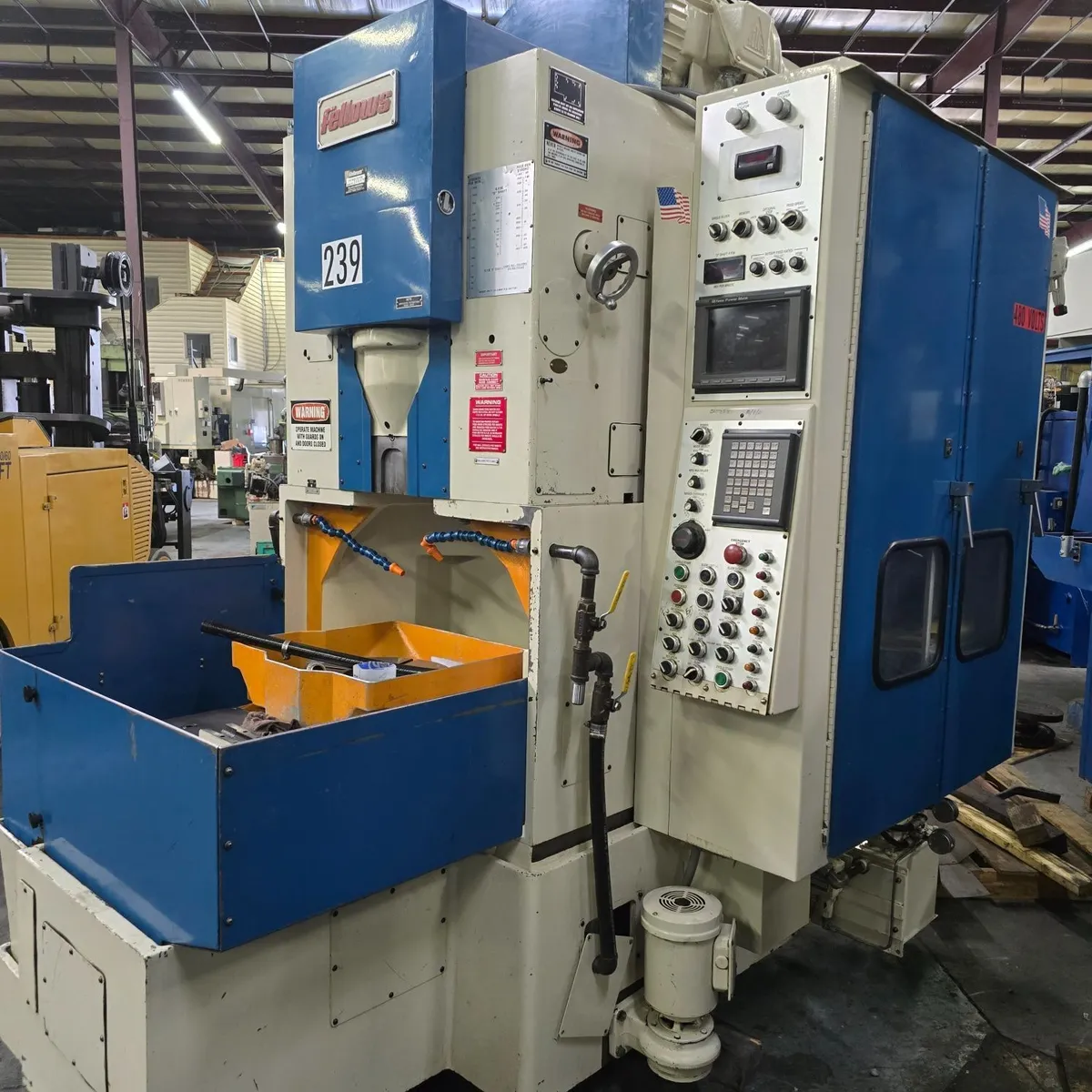

Fellows CNC Gear shaping machine
Model 10-4 remanufactured in 2000
2 Axis cnc controls

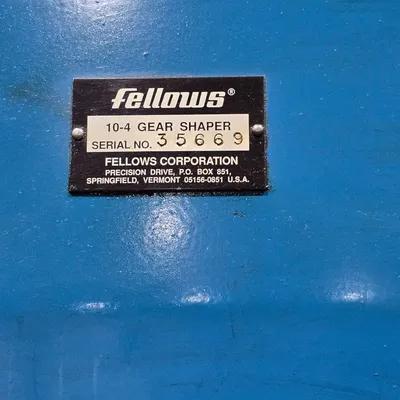

s/n 35669

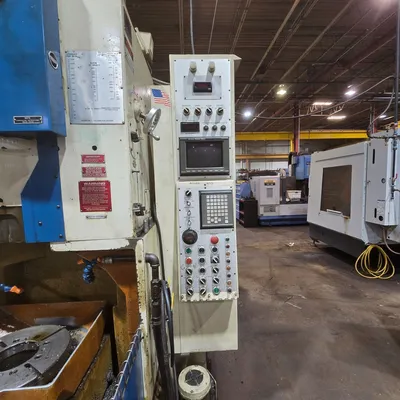

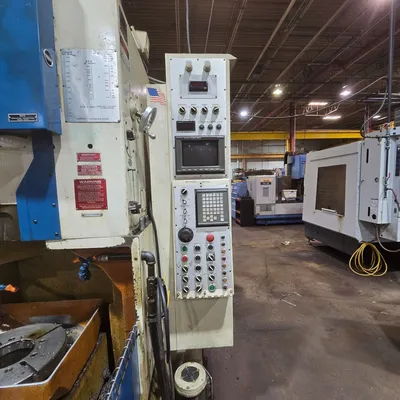

Machines were remanufactured in 2000 with Fanuc Powermate controls.
The 2-axis control allows full control of feed and speeds while only the
operator changes two gears in the back of the machine for index or number of
teeth in the part. This is done by simply changing only (2) two change gears
in the back of the machine for different numbers of teeth. If you are running
production then this should be a non issue!!

Machine specifications are as follows:
Machine Specifications:
Max pitch diameter (External)...........................................10"
Max pitch diameter (Internal)...........................................10"
Max face width, external & internal......................................4"
Spindle Positioning Axis...............................................0-3''
Max diametrical pitch spur............................................4 DP
Max diametrical pitch helical.........................................5 DP
Bore through work spindle............................................5.875"
Cutter spindle diameter..............................................3.543"
Max helix angle with special guides.................................45 deg.
Distance between table & cutter (w/no riser)............................10"
Max. OD of fixture......................................................19"
Dimensions (L x H x W).....................................91" x 105" x 72"
Machine net weight, approx......................................13,000 lbs.

Machines are equipped with :
Fanuc Power mate CNC controls for 2 axis  2 Machines are Available  .   Retrofit With GE Fanuc Powermate D 2-Axis CNC Control   Max Pitch Diameter, External 10"   Min Pitch Diameter, Internal 10"   Max Diametral Pitch, Spur 4 DP   Max Diametral Pitch, Helical 5 DP   Max Face Width 4"   Max Helix Angle w/ 5" Cutter 45 Deg   Max O D of Fixture 19"   Max Stroke Length 5"   Max Strokes Per Minute 800 SPM   Max Distance - Tabletop to Spindle 9"   Feed Per Stroke .001-.040   Cutter spindle diameter 3.543"   Work spindle bore diameter 5.875"   Work spindle bore depth 10"   Table Surface to Cutter Spindle Underside   In Uppermost Position 13.23"   Worktable C L to Cutter Spindle CL 9.06"   Maximum OD of fixture 19"   Rotary Feed Per 1" of Stroke .001"-.012"   Rotary Feed For Multi-Pass .001-.020"   Radial Feed Range Per Stroke .0001"-.020"   Max Radial Feed Per Minute .12"   Machine Dimensions 93" x 103"   Machine Height 101"   Approx Machine Weight 13,000 Lbs   EQUIPPED WITH:   GE Fanuc Powermate D 2-Axis CNC Control, 1999/2000 Retrofit W/ AC Frequency Spindle Drives   Hydraulically Operated Cutter Guard Assembly   Hydraulically Operated Table Fixture Clamping      15 HP Main Drive Motor
special 6" riser assembly

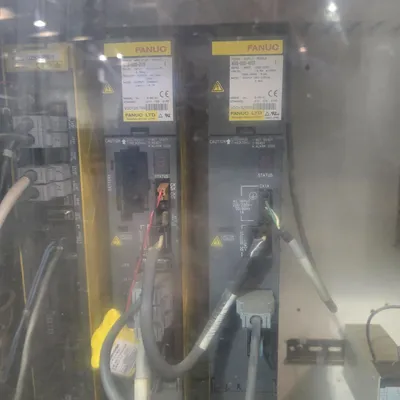

A/C Frequency Spindle drives for stroking motors. (TBD)

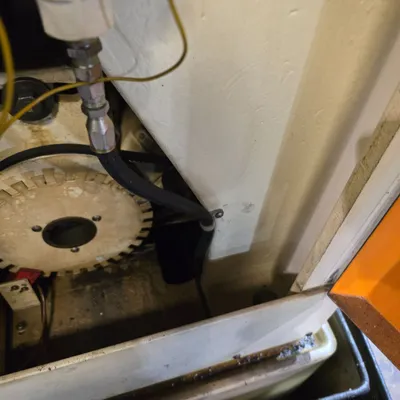

Misc change gears
cutter adaptor

Machine can be inspected under power in our Statesville, NC plant with
proper notice!! visit WWW.PiselliEnt.com . Visit our website to view
the machine as well as our vast inventory of other CNC Gear shapers
and hobbers. Im sure your'll find our inventory worth viewing!!

Thank you
Richard Piselli
