Liebherr Model L-652 CNC gear hobber , 2.5 DP , 26" diameter cap, fanuc 18MI controls , rebuilt in 2008 excellent

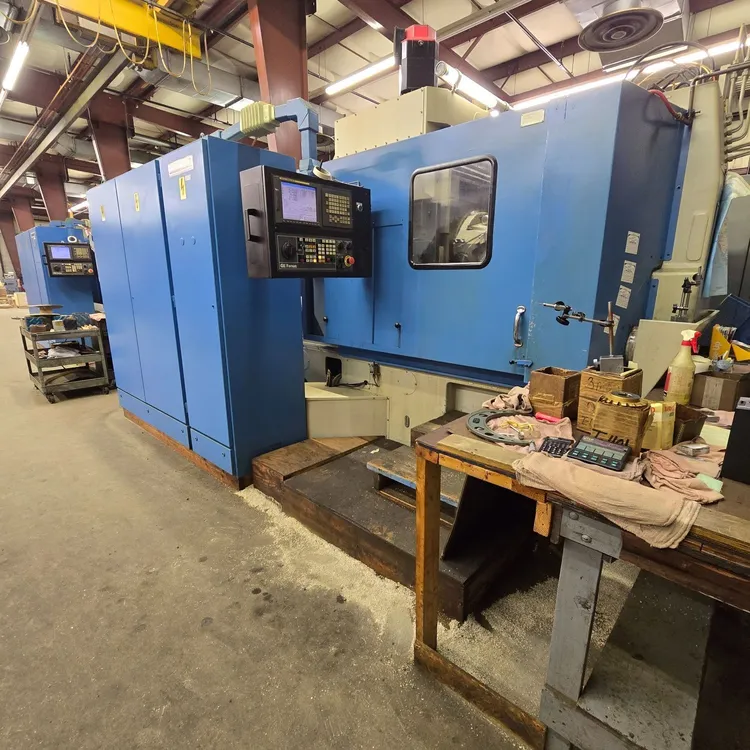

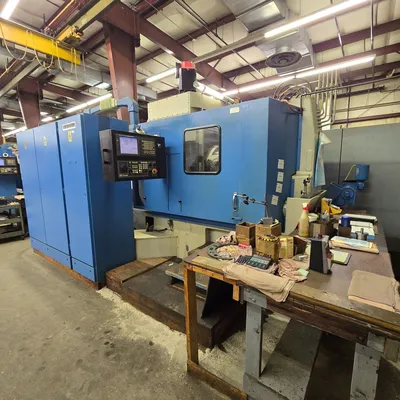

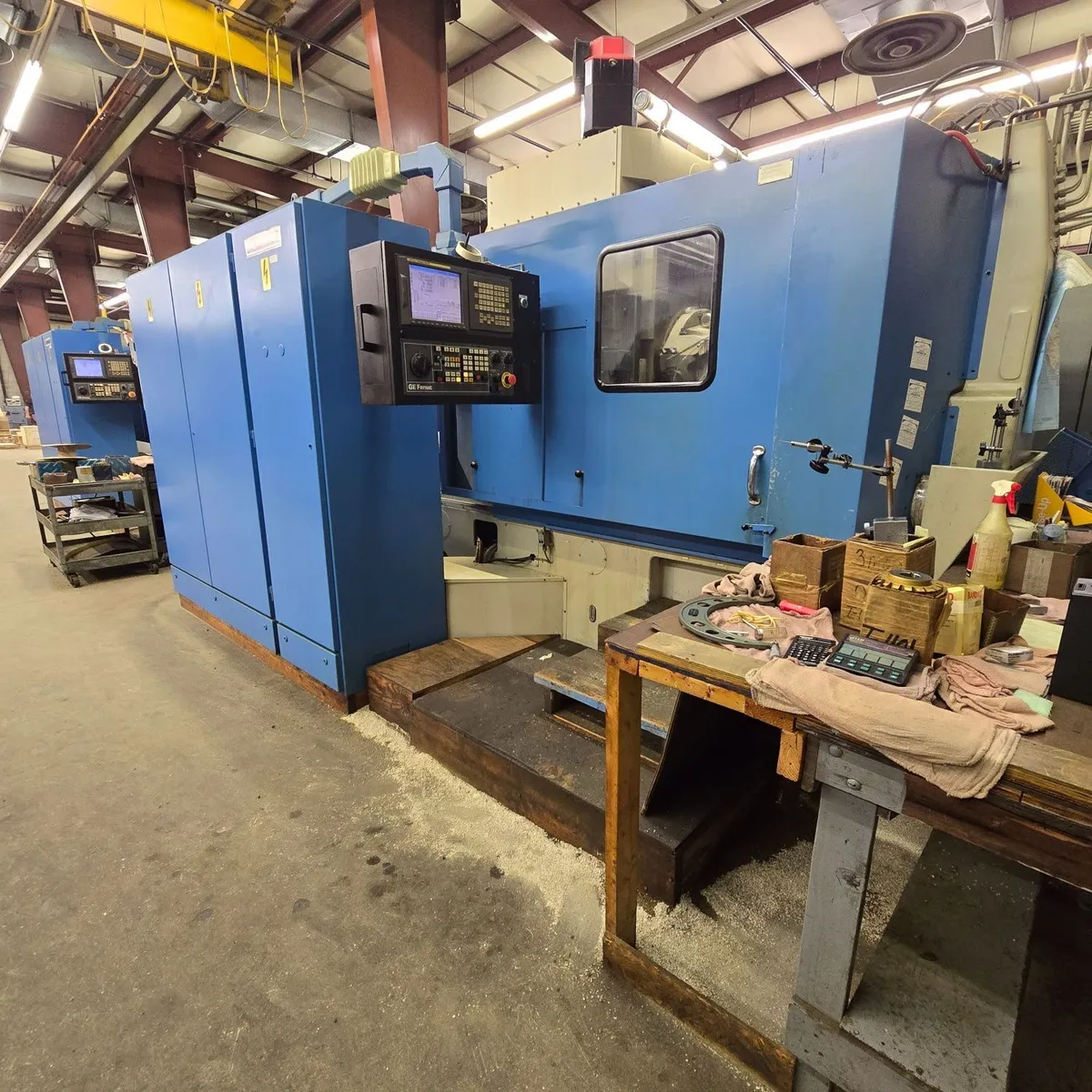

LIEBHERR vertical CNC Gear Hobber
Model L-652 CNC
s/n will advise
Retrofit in 2008

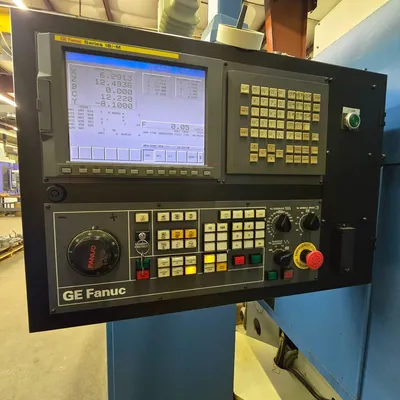

w/ Fanuc 18MI cnc controls

this machine is in excellent mechanical operating condition
in customers plant . it can be inspected prior to removal for
a short time with proper notice . machine has a good tooling
package as well as 2-cut cycle , crowning , and upgraded PLC!!

Machine catalog specifications as follows:

Workpiece diameter 25.60" (650 mm)
Maximum pitch (86000 psi steel) 2.0 DP (mod 12)
Maximum hob slide travel (standard) 19.7" (500 mm)
Work table diameter 23.2" (590 mm)
Master worm wheel, pitch diameter 22.64" (575 mm)
Table bore diameter 5.512" (140 mm)
Max. hob dia. 7.56" (192mm)
Max. hob length 9.84" (250mm)
Description of hob head shifting hob head
Hob spindle speed, steplessly variable min. 32 min-1 max. 256 min-1
Max. hob shift 7.87" (200mm)
Incremental shift min. .03" max. 6.18"
(.762 mm 177mm)
Minimum distance between hob and table center 1.97" (50 mm)
Maximum distance between hob and table center 17.12" (435 mm)
Maximum tangential/shift travel 7.87" (200 mm)
Hob spindle speed ranges (infinitely variable) 48 - 385 rpm
Axial feed, inch/per/rev. (Infinitely variable) 004" - .354"
(.0001 - 9.0 mm/per/rev)
Radial feed, inch/per/rev. (Infinitely variable) .0028" X .55"
(.70 - 14 mm/per/rev)
Rating of main motor 16 HP (12 kVA)
Floor space required 186" X 125"
Shipping dimensions 127" X 63" X 122"
Approx. Net machine weight 24,700 lbs. (11,200 kgs)

EQUIPMENT FEATURES:

Fanuc Model 18MI cnc controls motors & drives
operator friendly programming
Operator pendant control
Tailstock
full guarding
chip conveyor
Hob arbor
Operator's manual, wiring & hydraulic diagrams.

Contact us today for a formal quote and pricing at WWW.Pisellient.com
we look forward to supplying you with some of the best machines on the
market today! Inspect this machine in Mass under power
contact Rich Piselli at Rich@Pisellient.com to set up a visit today!!
