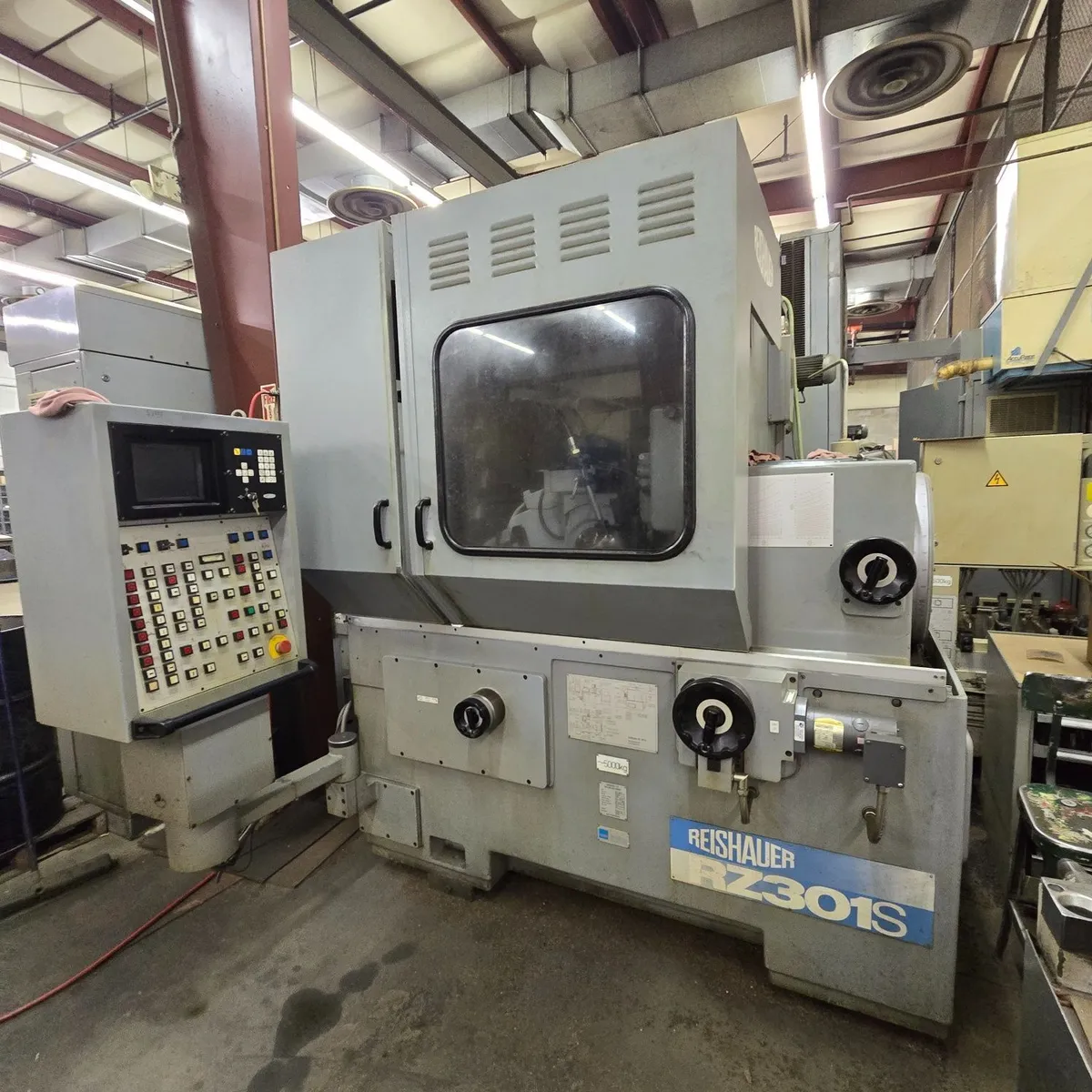

Reishauer Model RZ-301S cnc generating style Gear Grinder , 12" capacity , 12" diameter wheel , fassler dresser , s/n 65409

Reishauer CNC style generating Gear Grinder
Model RZ-301S

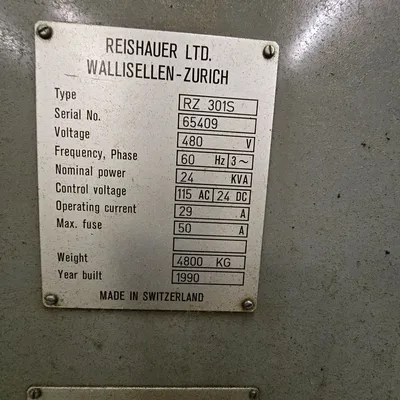

s/n 65409
age New 1990
condition excellent , Inspect under power

This Reishauer Machine is presently up and running in a customers shop in the
North east. This machine comes with all misc parts, and tooling
Its an excellent opportunity for a customer getting into the business of gear
grinding or a great addition to anyone already using these style machines.

MACHINE SPECIFICATIONS ARE AS FOLLOWS:

Machine Specifications:

Max Diameter 12"
Max. module 6
min. module .0,5
number of teeth 10 - 600
pressure angle 10 - 45 °
max. helix angle +/- 45 °
workpiece weight 60 kg
total power requirement 20 kVA
max. wheel diameter 330 mm
gear width 175 mm
root circle diameter 10 mm
slide stroke 180 mm
clamping length 420 (750) mm
dia. of grinding worm 270 - 350 mm
width of grinding worm 84 - 104 mm
feed per revolution 0,4-3,40 mm
adjustment per stroke 0,01 - 1,0 mm
total adjustment 9,99 mm
tangential adjustment 90 mm
turning speed of grinding worm - grinding 110 - 1900 Upm
turning speed of grinding worm - profiling 52 - 90 Upm
electrics - voltage/frequency 460/60 V/Hz
weight of the machine 15,000 lbs

Machine is equipped with the following equipment:

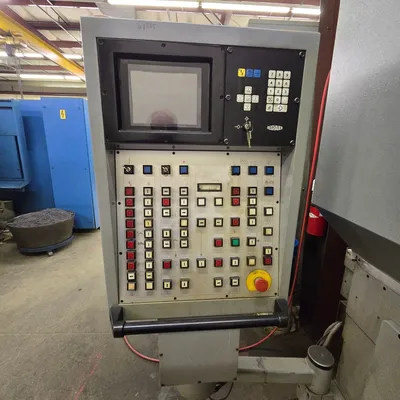

Reishauer CNC Pendant Controls

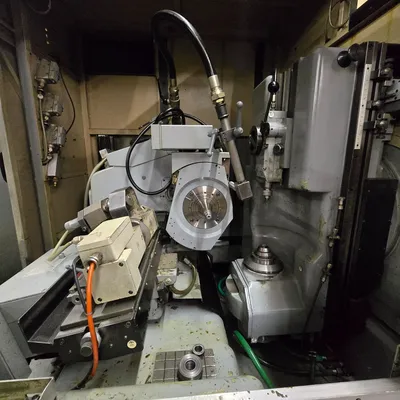

CNC Diamond Disc Dresser Opposed wheel style

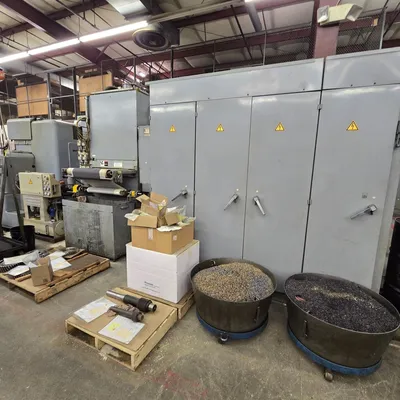

Filtration Separator system
Hydraulic Unit

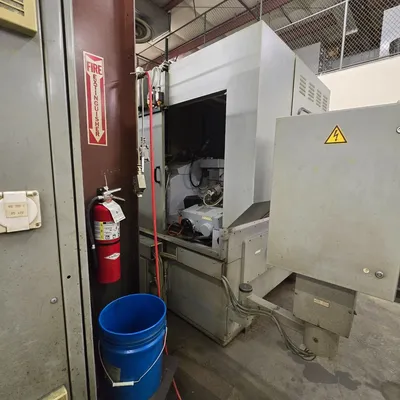

Full Machine Enclosure
Lots of misc Tooling, wheels , Flanges, and support equipment
Books and Manuals

Machine can be inspected in plant under power until mid January 2026.
The machine is presently grinding parts in customer's shop until this
date as they transition in the new CNC form grinder they have purchased.
Machine will be sold with a delayed delivery . Please make your inspections timely
if interested in seeing it running before removal and/or disconnection.
contact us for more pictures and videos of machines or formal quotes on line
at www.pisellient.com or email directly to Rich@Pisellient.com

thank you
Richard Piselli
