Reishauer Model RZ-701 cnc Threaded wheel Generating sytle gear grinder 28" diameter capacity, excellent condition in plant under power !!

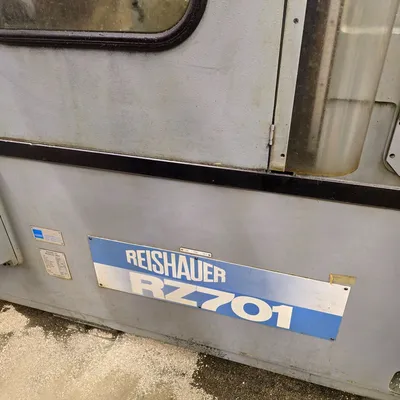

Reishauer CNC Generating style gear grinder
Model RZ 701
s/n will advise
age 1990

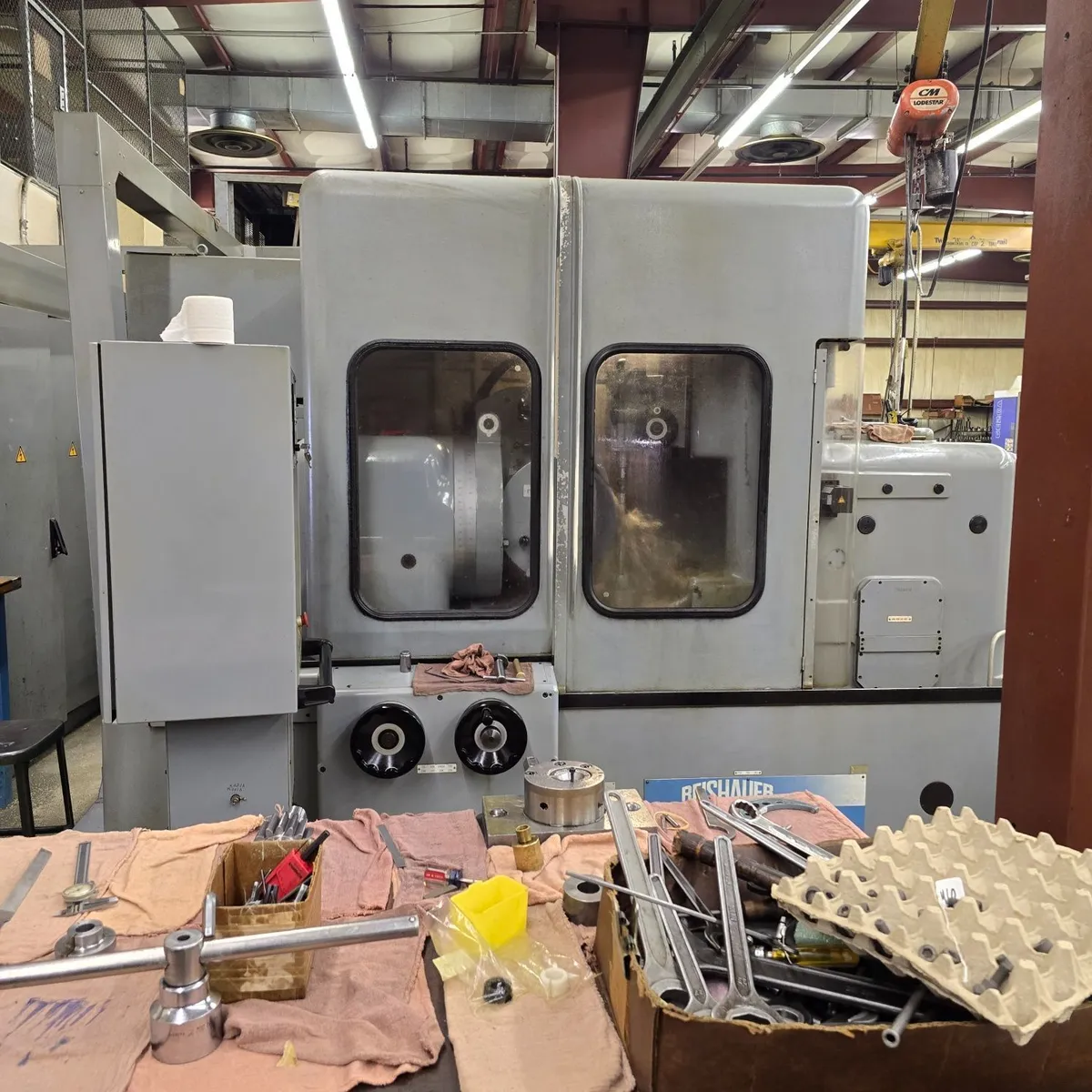

this machine is in customers plant running parts . Machine can be inspected
under power anytime . the machines are well equipped with tooling and charts
are available for your inspection . contact us for video if unable to inspect

Machine specs are as follows

Max. workpiece dia. 700 mm
Max. stroke 300 mm
No. of teeth range 16 – 240
Module range 1,5 – 7
Helix angle +/- 30°.
Pressure angle range 14 – 30 °.
Max. workpiece weight 300 kg
Max. grinding wheel dia. 400 mm
Min. grinding wheel dia. 280 mm
Grinding wheel width 84/104 mm
Grinding wheel speed:
– grinding 1650 rpm
– profiling 90 rpm
Workstück infeed, stepless 10-300 mm/min
Tangential movement of workpiece 70 mm
Electrics 480/60 V/Hz
Machine weight 15,000 lbs

Machine is equipped with the following
wheel flanges
tooling
AF filtration unit ( shared )
complete systems

machine can be inspected under poweer in North east plant with short notice
Machine is running every day as cstomer looks to streamline shop and operation
contact us today to inspect or receive a formal quote and price on line
visit www.pisellient.com and request pricing or plan a visit . video available
via whats app . contact us today rich@Pisellient.com

thank you
Rich Piselli
