Liebherr Model LCS 282 CNC Generating style gear grinders for production utilizing plated wheel technology new 2002 excellent under power

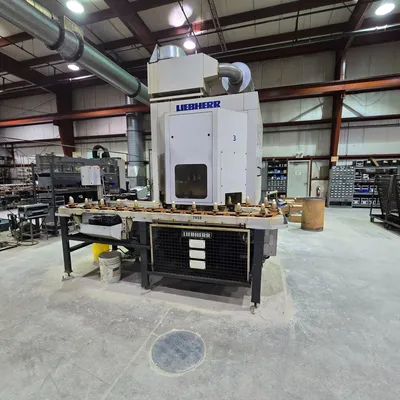

LiEBHERR CNC Generating style Gear grinders
Model LCS-282
new 2002
liebherr LH-90 controls
w/ auton shuttle style loaders
inspect under power in North East plant !!

Control CNC (LIEBHERR LH 90GG)
Equipped With
LIEBHERR - CNC-Control Model LH 90GG is a further developed PC/NC version and
designed specifically for the gear manufacturing. The Operator interface is
extremely operator friendly, and shows also error diagnostics in order to
insure a high production rate. Equipped with various grinding programs.

Features
·Automatic and contactless tooth meshing device to adjust the Grinding tool
into the tooth gap.
-A completely new grinding concept allows the use of CBN grinding worms
and CBN grinding discs on the same Grinding tool, therefore two two grinding
methods can be utilized:

a. Generating grinding method using worm wheels ( for mass production)

b. Profile Grinding for high precision machining of small to medium batch production

c. Combination of both methods = roughing by using the grinding worm and finishing
using the profile disk insures highest accuracy.

· High Speed grinding spindle up to 10.000 rpm/ 70 ms, spindle is cooled
for thermal stability.

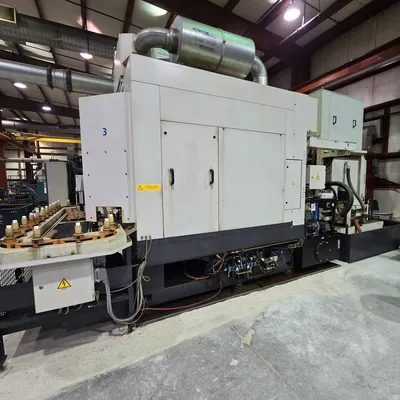

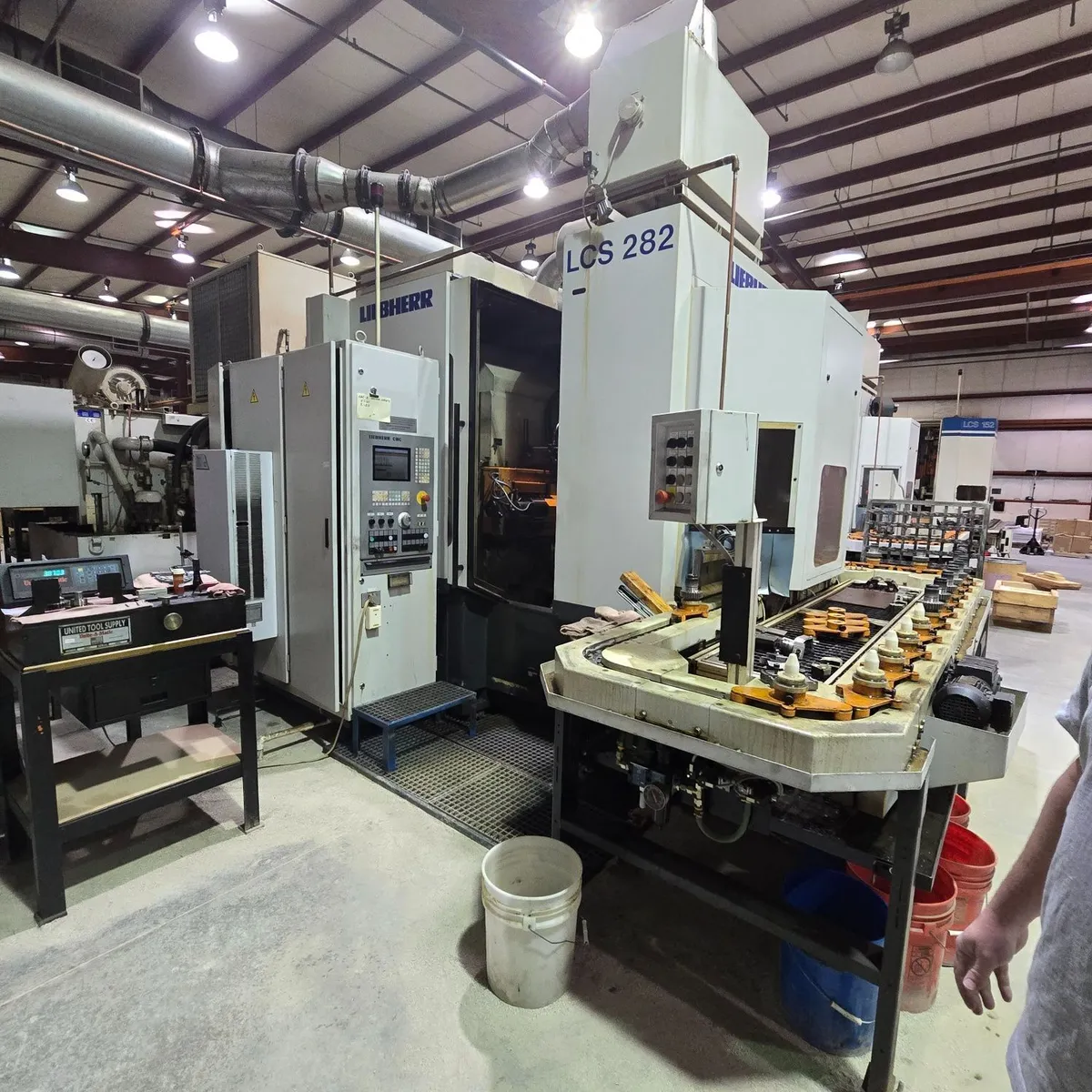

· Automatic Workpiece handling system includes a two station ringloader
which is mounted on the counter bracket combined with a buffer conveyor
make FLEX LINK outside of the machining area.

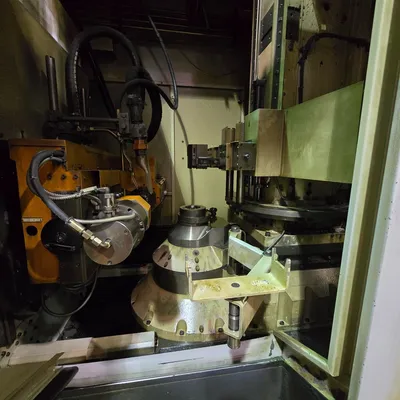

· Hydraulic Workpiece Clamping device but without clamping fixtures.
Tailstockslide is available and hydraulically adjustable

· complete workarea protection with one sliding door. Separate
CO 2 Fire extinguisher

Max Gear daimeter 280 mm

Module Range 1 - 5

Helix Angle +/- 35 °

Distance Table Center to Tool Center 15 – 285 mm

Grinding Slide stroke vertical 330 mm

Tang Travel / Shift of Tool slide 200 mm

Minimum Number of Teeth 7

Grinding Spindle height above table max. 70 - 360 mm

Workpiece Clamping length (table/Tailstock) 420 up to max. 620 mm

Grindingworm-Æxlength/ Profile grinding disk Ø 145 x 210 / 175 mm

Speed of grinding wheel spindle 2.500 – 10.000 rpm

Speed of Table max. 750 rpm

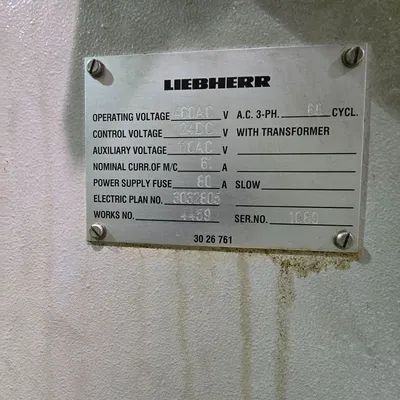

Grinding Spindle Drive 28 kW - Total Load approx. 50 kW - 460 V 60 Hz

Total weight of Machine approx. 12.000 kg

equipped with
liebherr cnc controls
auto loading system
hoffman filtration & chilling system
lots of misc tooling
Books and manuals & software back up

Machine(s) can be inspected in plant under power with proper notice .
customer has several machines and is not running as much production
as before and is able to part with one or two machines . visit our
Website at www.pisellient.com to request a formal quote and pricing
for these machines or contact us directly at Rich@Pisellient.com

thank you
Rich Piselli
