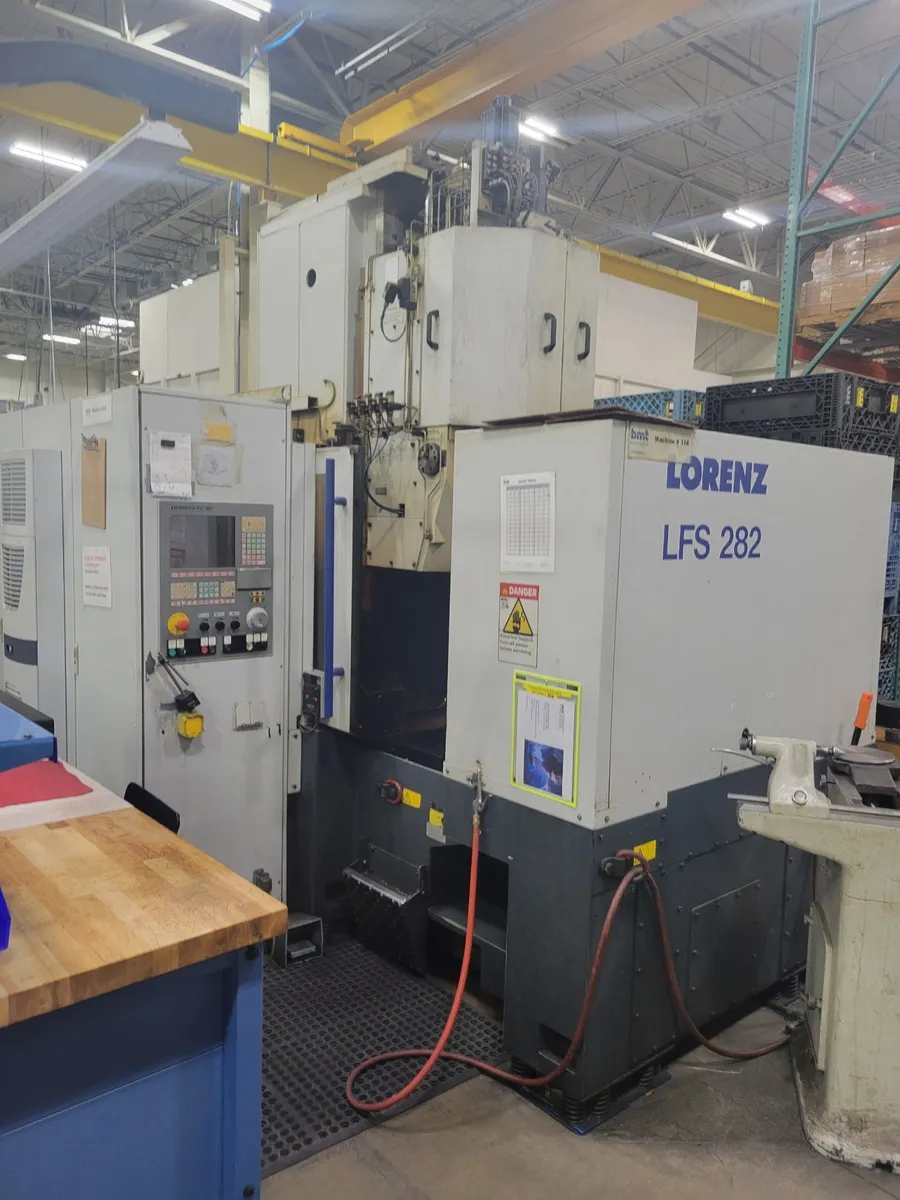

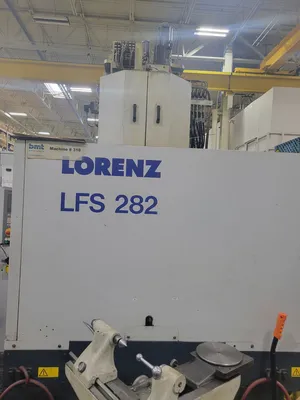

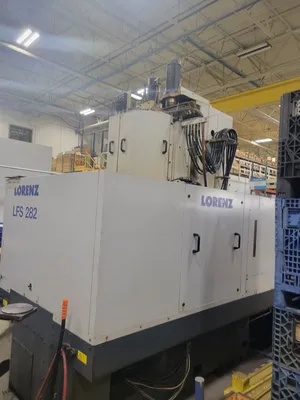

Lorenz cnc gear shaper model LFS 282 w/ tailstock , sliding Head , 87 mm face width , 280 mm diameter New 2000

Liebherr CNC Gear shaping machine

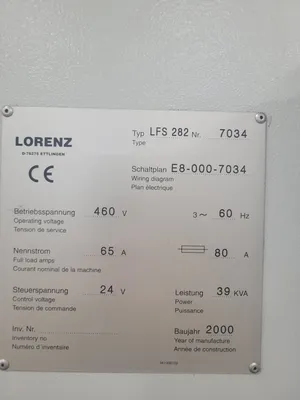

Model LFS 282
s/n 7034
year 2000
w/ tailstock and moving slide

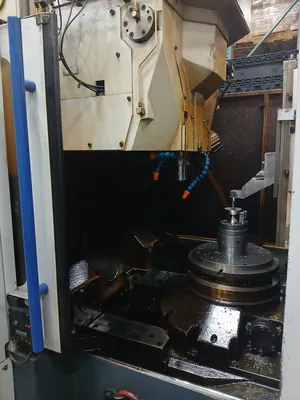

This machine was located at BMT Aerospacwe plant cutting gears . it has
the moving head slide option for stroke positioning and tailstock for holding
shafts and other external parts if needed.

Machine specifications are as follows
Max diameter gear 280 mm
Max face width 87 mm
Max stroke positioning 150 mm
Max part swing diameter 370 mm
largest shapable normal module 5 mm
Max helix angle with proper guides 45 degrees
angle adjustment cutter spindle -0.5*...+0.5*
stroke range 80-1200 DS/Min
voltage 460 volt
weight 32,000 lbs approx

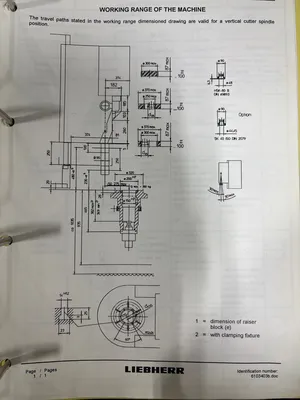

see attached working range drawing!!!!

Machine is equipped with

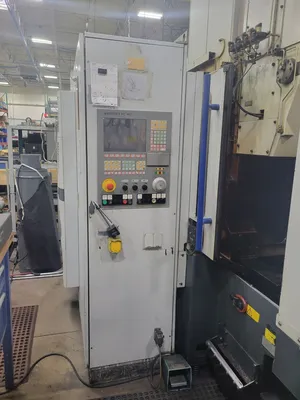

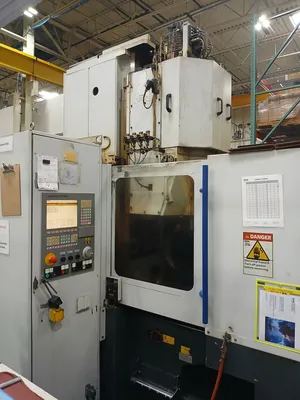

Liebherr CNC LH90 controls

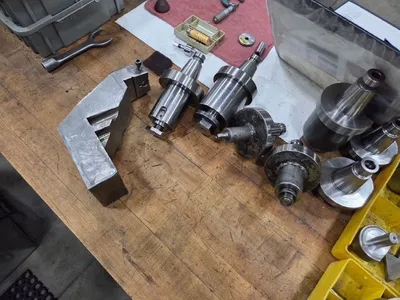

cutter adaptor
chip conveyor
tailstock assembly
chiller
books and manuals

Machine has been removed from service , however videos are availbel
through whats app. . call to see this working video of machine at BMT
Aerospace .Visit our website at www.pisellient.com or contact rich
Piselli for quick conversation or questions at rich@pisellient.com
