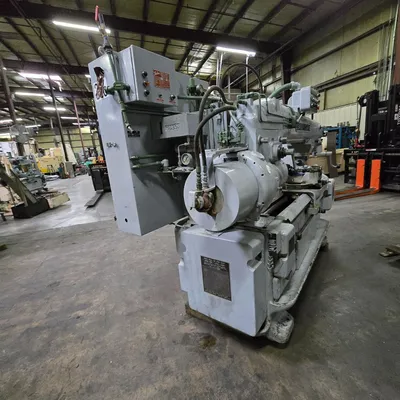

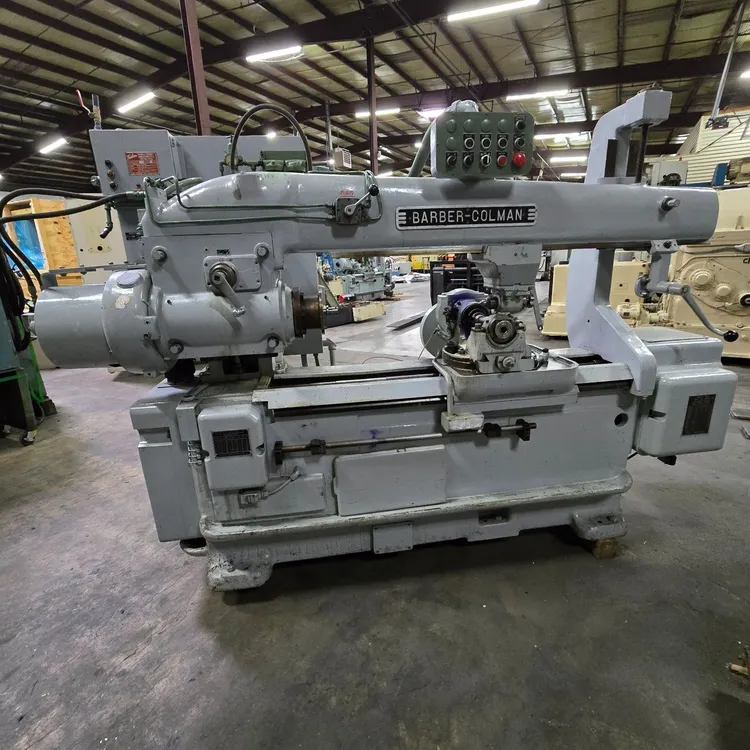

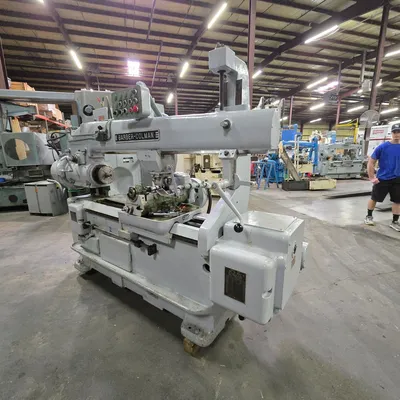

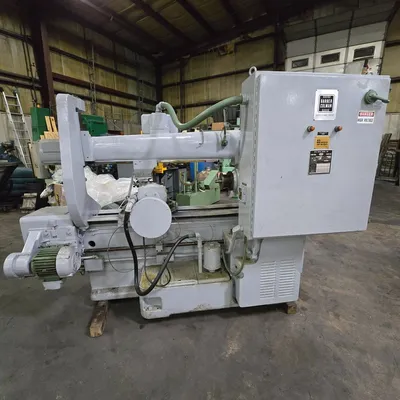

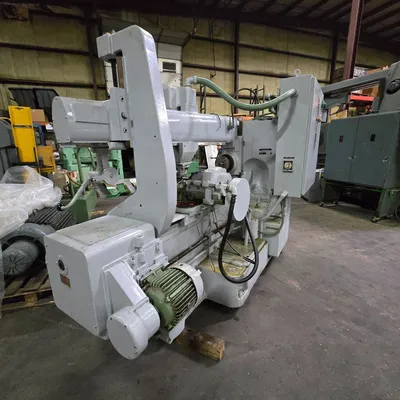

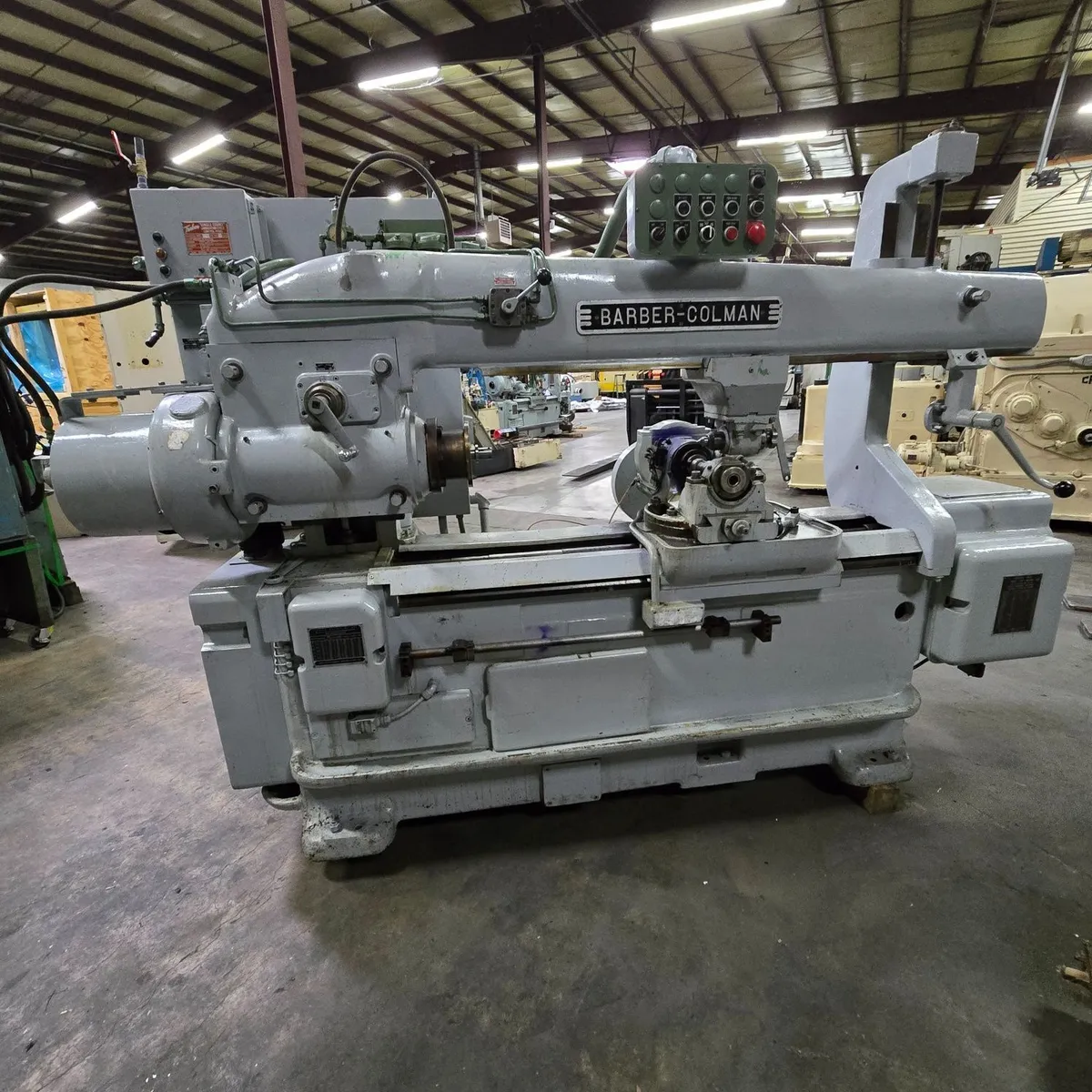

Barber Colman model 16-36 Horizontal hobber , 16" diam cap x 36" cut length, dual thread, C-frame , Dwell , nice rebuilt s/n 4208-R-81

Barber Colman Horizontal Hobber
Model 16-36
s/n 4208 R-81
C-FRAME STYLE MACHINE

This special C-frame style machine allows you to support up to 4-1/8"
diameter parts through the Timkenized work spindle bore. Clamping Dwell
and other nice features for this machine

Machine specs are as follows
Machine specifications
*Max DP in Steel 6 DP-10 DP
*Max Work OD 16"
*Max Hob Slide Travel 36"
*Diameter Hole Thru Work Spindle 4-1/8"
*Max Hob Diameter 5"
*Max Distance Face of Work Spindle to Tailstock TBD"
*Max Vertical Adjustment of Work Spindle 8"
*Max Hob Slide Swivel Angle Setting-Degree 45 degrees
*9 Hob Speeds 59-246 RPM
*Hob Feeds .0075-.1125"
*Machine weight approx 7,000 lbs

MACHINE IS EQUIPPED WITH:
C-frame style machine
Dual thread index worm

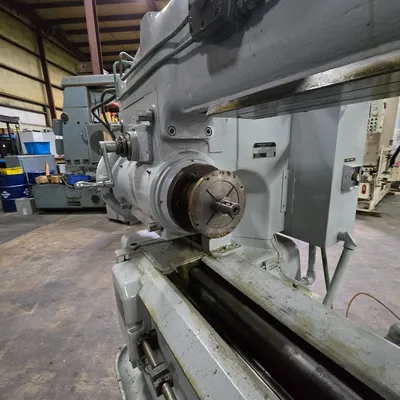

Timkenized main work spindle
4-1/8" large bore through work spindle
Rapid traverse
Manual hob shift
tailstock with adj type center
Dwell timer
clamping

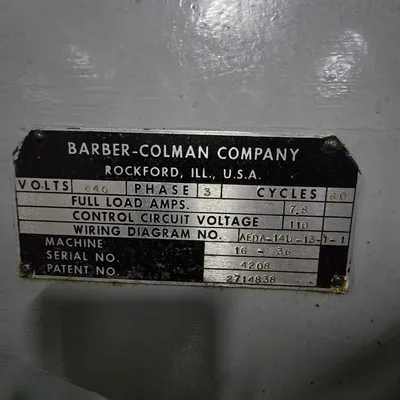

440 volt power (TBD Inquire)
push button controls
Misc. Change Gears

Machine can be inspected under power with proper notice in our
Statesville, NC facility! visit WWW.Pisellient.com to request
a formal quote & pricing on line or see more photos of this
machine or the many others we have in stock .
Contact Rich Piselli at Rich@piselliEnt.com to set up a visit!
