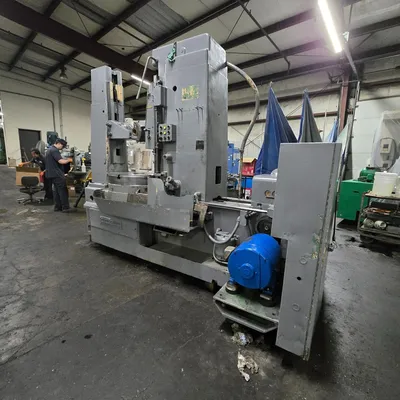

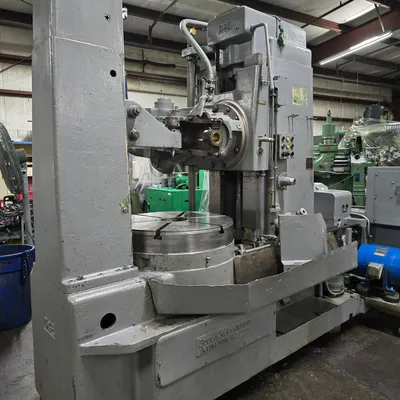

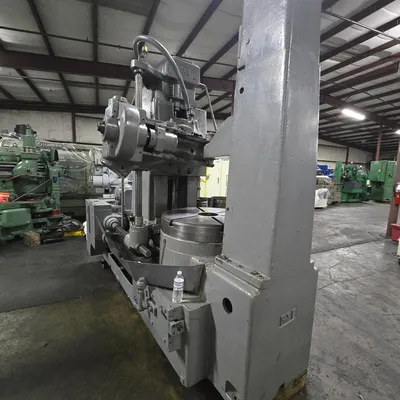

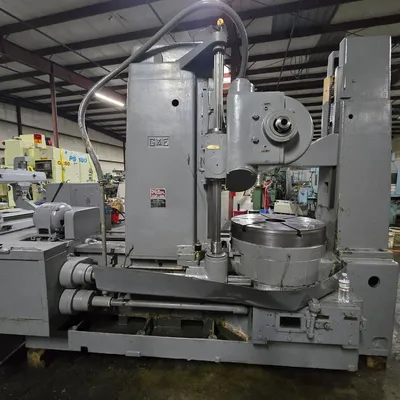

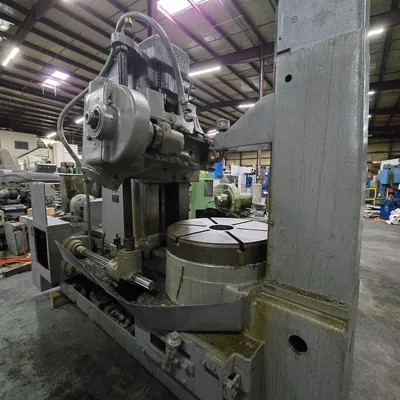

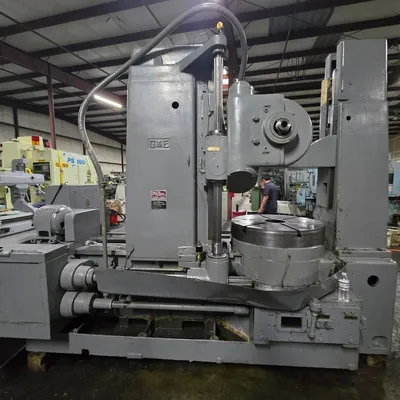

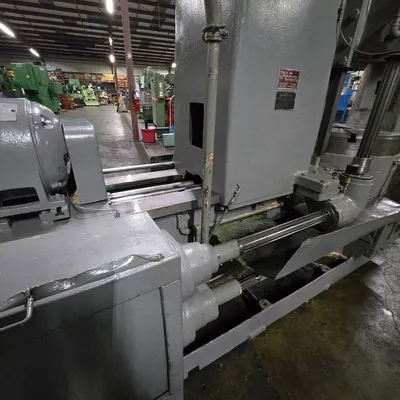

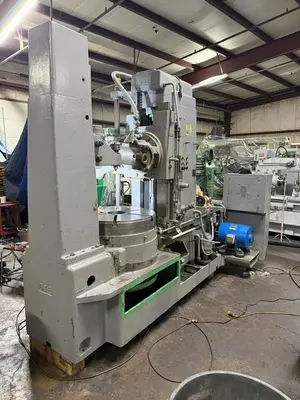

Gould & Eberhardt model 48HWD 48" diam cap., 32" diameter table , Heavy duty worm drive head, Differential , infeed, s/n 5870A10

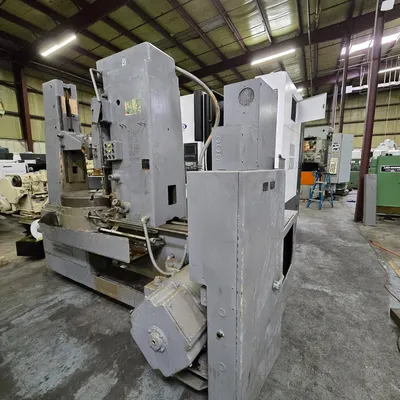

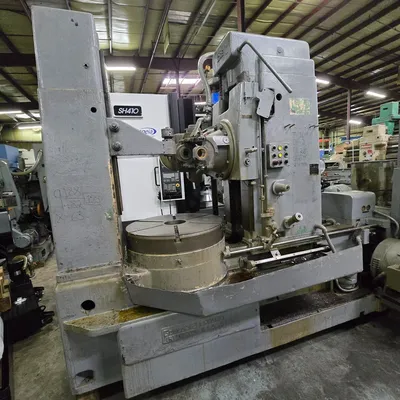

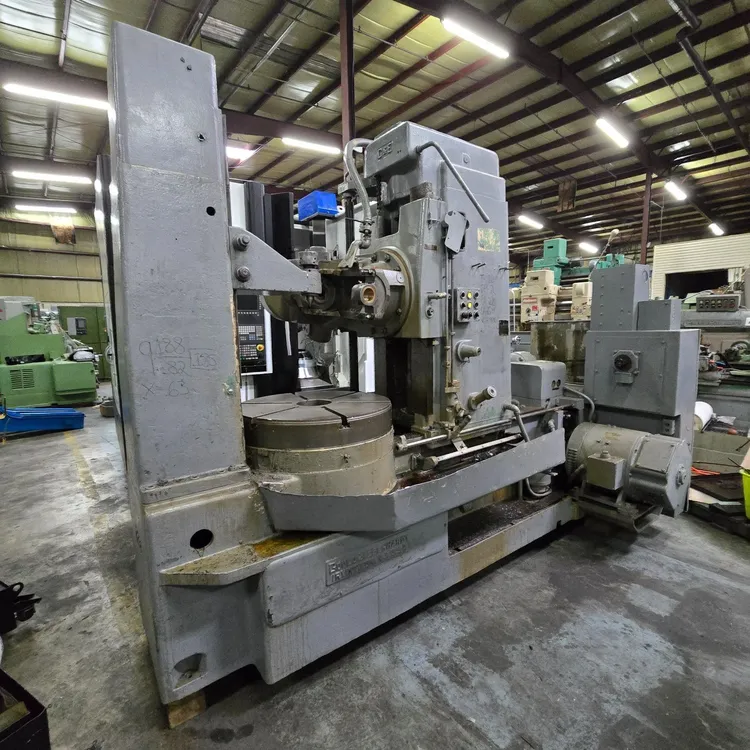

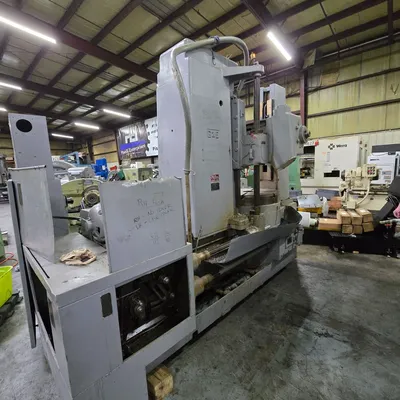

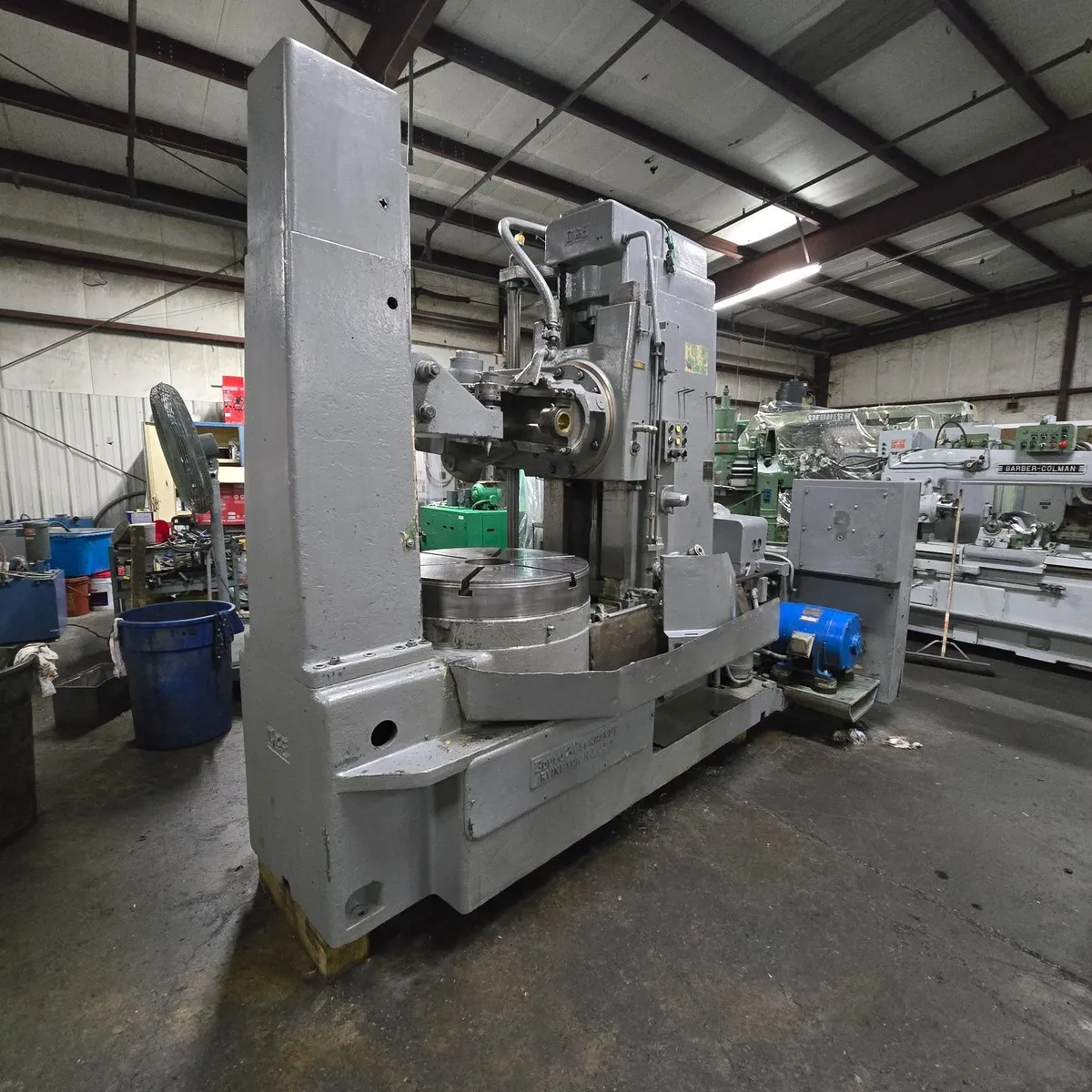

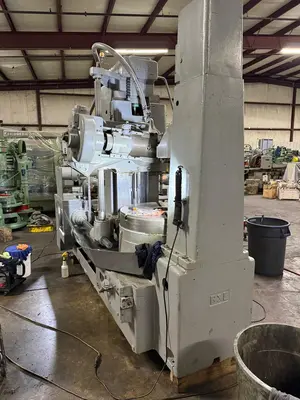

Gould & Eberhardt Heavy duty Vertical gear hobber
Model 48HWD
s/n 5870A10

this heavy duty machine has been delivered to our Statesville NC
facility . the machine will be gone through , tested and repaired
as needed.

Machine catalog specs as follows :
max diameter w/ support 34"
max diameter w/o support 48"
max pitch 1.5 dp
max face capacity 28" (tbd)
Min centers 0"
max diam. hob 8"
Diameter work table 32"
Max Height under tailstock 38"
Main motor 10 HP
floor space 52" x 126"
machine weight 19,000 lbs

Machine is equipped with :
Special heavy duty worm drive head (HWD)
Differential
Infeed
swing away tailstock

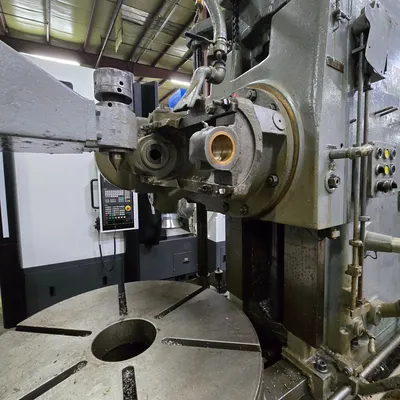

hob arbor
Push button controls

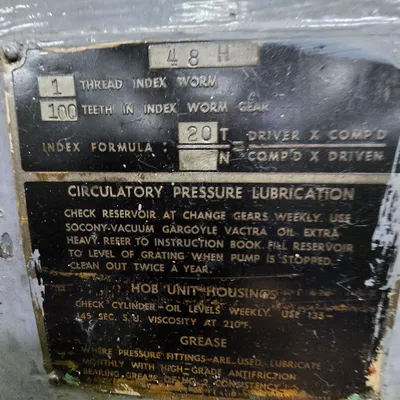

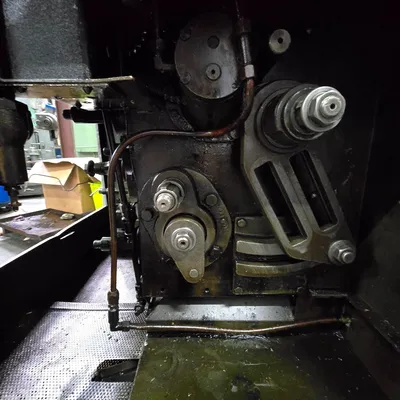

100 teeth in worm wheel - 20/N
Misc. change gears & tooling
updated Electrics
Manuals

This machine is presently in our Statesville NC facility and can be
inspected under power with proper notice. Machine will be gone through.
contact rich at rich@pisellient.com to request a formal quote & Pricing
or visit our website at www.pisellient.com for more photos and other
Machines and equipment

thank you
