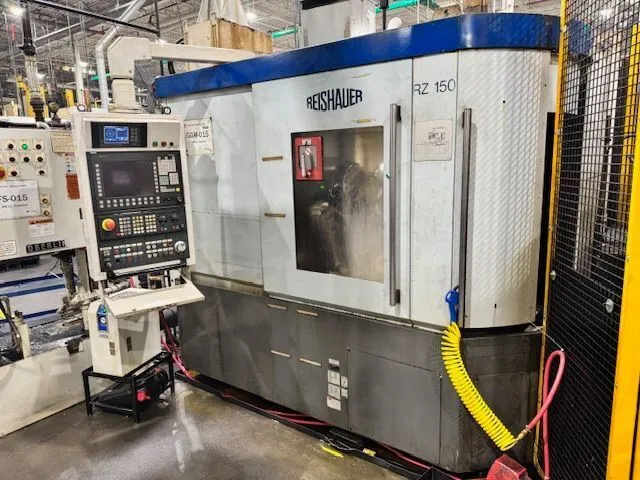

Reishauer model RZ-150 twin spindle CNC gear grinder , New 2006 , good condition in plant under power!!

Reishauer Type RZ-150 CNC Gear Grinder
New 2005/6 Installed 2006
s/n 76077
Generating style twin spindle Gear grinder

Machine specs as follows :
Tip Diameter: 10-145 MM
Root Diameter: Approx. 10-145 MM
Number of Teeth: 5-150
Z1 Grinding Stroke: Max. 100 MM
Max. Center Distance 350 MM
Max. Center Distance Depends on Fixture
Module: 1-3 MM
Pressure Angle: 14 bis 30 Degree
Helix Angle: -40 / +40 Degrees
Max. Weight of Workpiece: 2 kg
Workspindle Nose: Face 120 MM with internal Taper similar
to DIN 69063 with nominal Diameter 75MM

Machine is equipped with the following
Siemens CNC controls
Reishauer dressing system

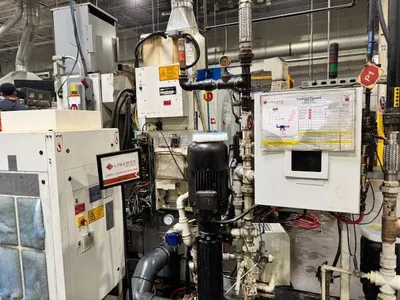

chiller unit
probe system
Balancing system
Mist filtration
Robot interface
full documentation digitally
charts available on request

Machine can be inspected in good condition under power for
a short time only. video is available on whats app upon
request!!Machine price includes loading on your truck.

we can quote CIF Loading and shipping as well if required
at additional cost!
Visit WWW.Pisellient.com for more photos, info and video
under power!!

thank you
rich Piselli
rich@Pisellient.com
