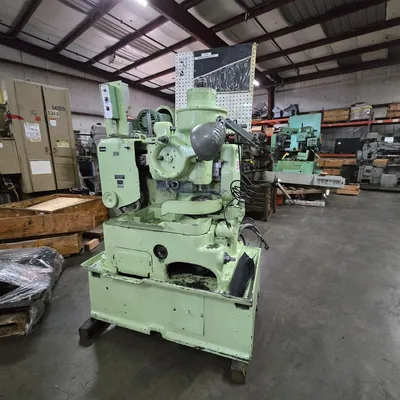

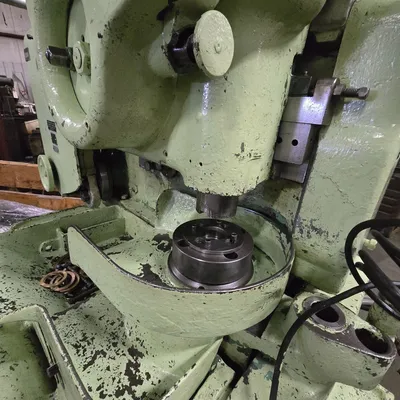

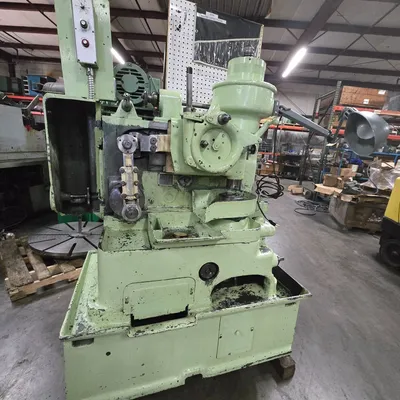

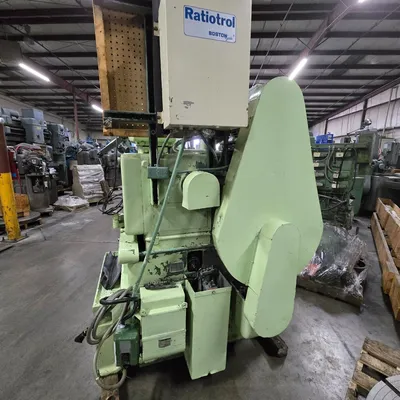

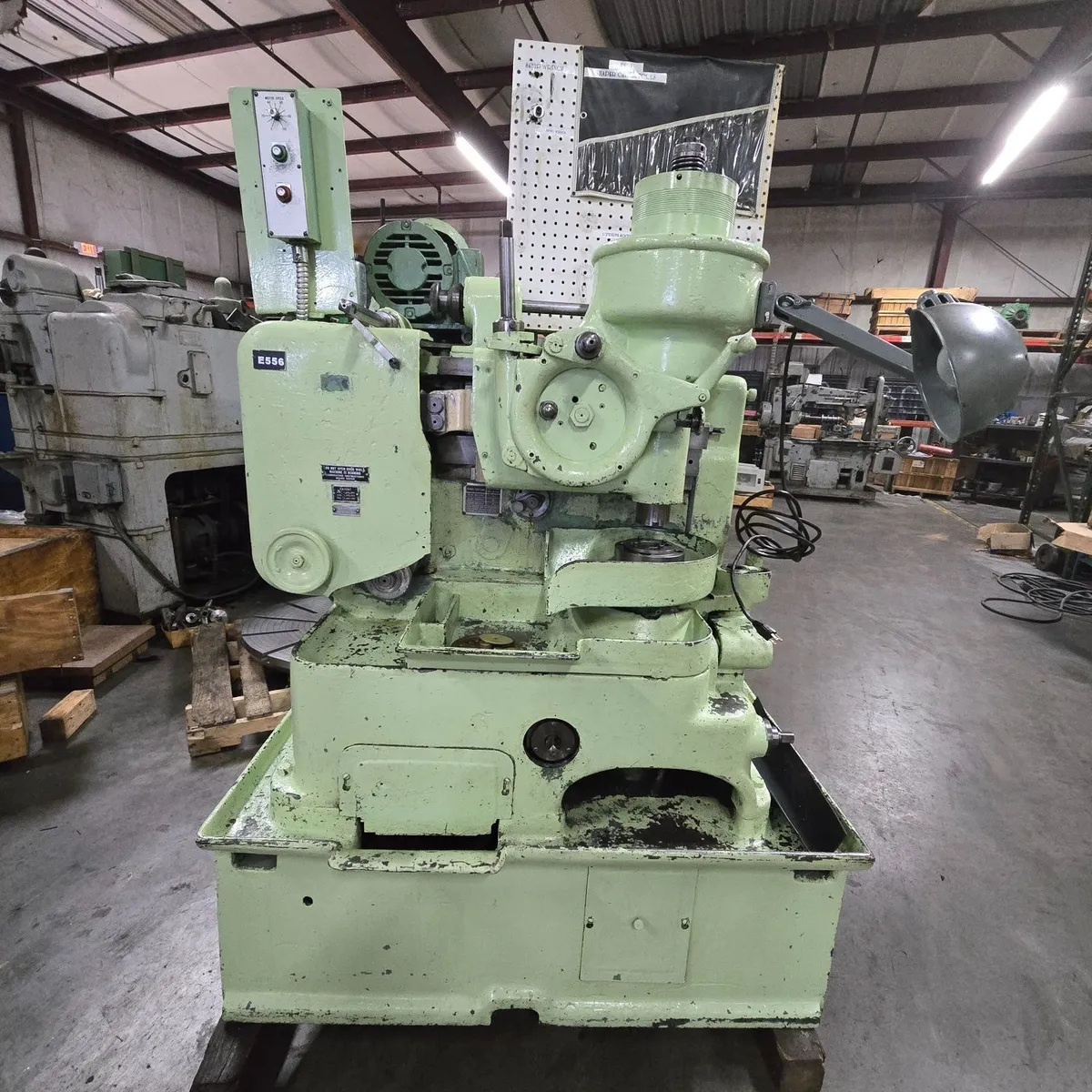

Fellows Model 7A Gear shaper , 2" stroke , 7" diameter , variable speed, Hollow spindle , good condition s/n 17907

Fellows Vertical Gear shaper
Model 725A
s/n 17907
w/ variable speed drive

machine can be inspected in our facility gone through and under power
Machine can be inspected under power with proper notice, video avail

machine specs are as follows:

* Max. Pitch Diameter Spur External 7"
* Max. Pitch Diameter Helical External 7"
* Diametral Pitch, Spur Gears 5/7 DP
* Diametral Pitch, Helical Gears 6 DP
* Face Width Max 2"
* spindle diameter 2-3/4"
* Helix Angle Degree, Max 45 Degrees
* Cutter Strokes Per Minute, Range 200-450 SPM
* Machine Dimensions 3'9" x 3'5" x 6'6" H
* Machine Weight 3,300 lbs.

MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Hollow Spindle
* 0" riser assembly
* variable speed drive
* 2" stroke capacity
* Assortment of Change Gears
* Operators Manuals

Machine can be inspected under power with proper notice
we can set up machine for your requirements . contact us
today at www.pisellient.com for more info & photos and
request a formal quote on line!!!
