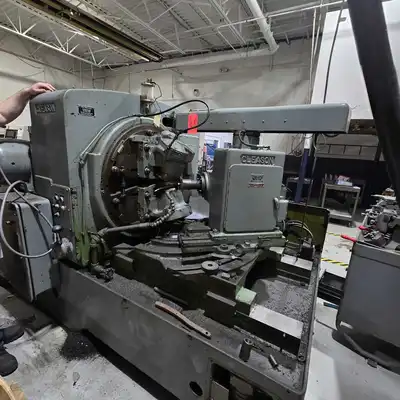

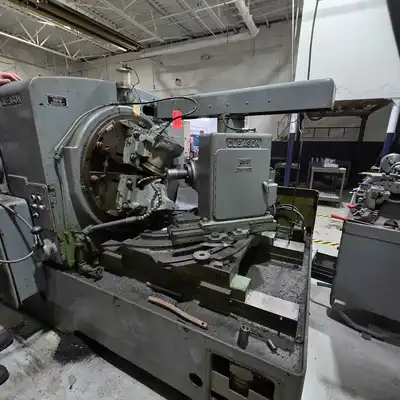

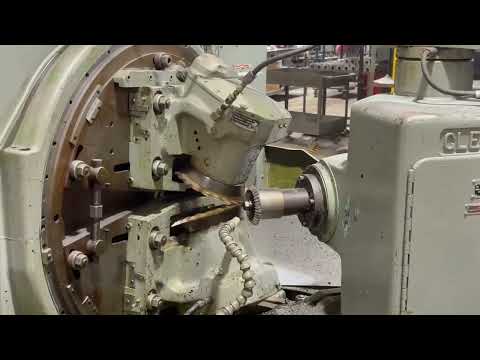

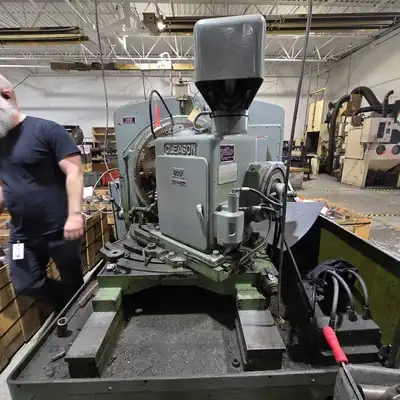

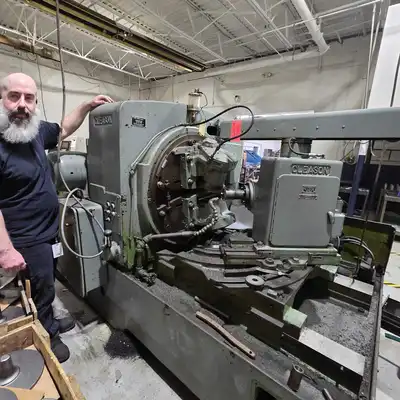

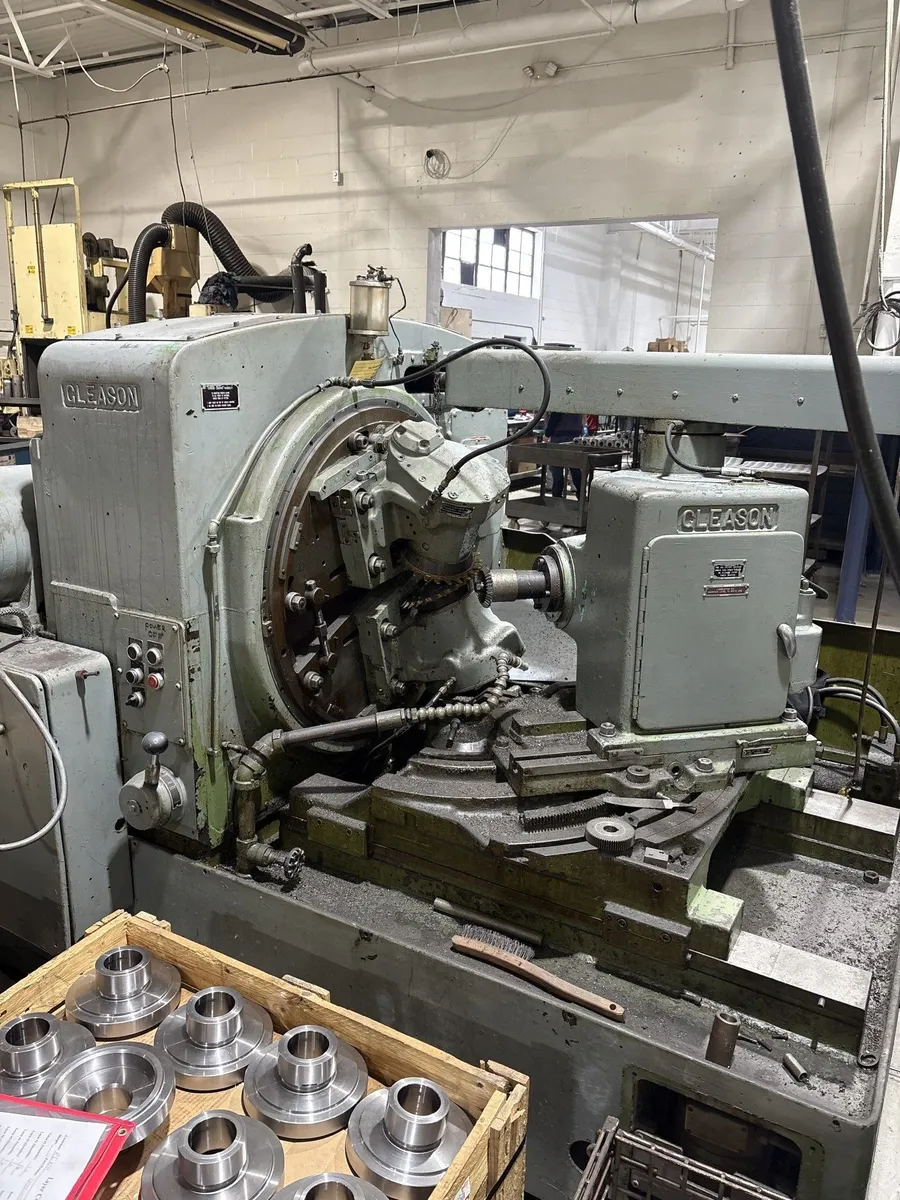

Gleason Model 104 Coniflex Straight Bevel Gear generator, good condition in plant under power

Gleason Straight Bevel Coniflex Gear Generator
Model 104
s/n will advise

This machine is presently being shipped to our warehouse location
it will be tested and gone through in our shop and repaired as needed
It should be in excellent working condition and can be viewed as such
general machine specifications are below

CATALOG SPECIFICATIONS:
CONE DISTANCE(MAXIMUM)................. 4.25" (108MM)
CONE DISTANCE(MINIMUM)................. 0"(0MM)
PITCH ANGLE(MAXIMUM) 90 DEGREES........ 84DEGREES 18 MIN
PITCH ANGLE(MINIMUM)................... 5 DEGREES 42 MIN
EXTREME ANGLE (MINIMUM)................ 10:1
PITCH DIAMETER (MAXIMUM) RATIO 10:1.... 8.5" (216MM)
PITCH DIAMETER RATIO 1:1............... 6"
DIAMETRAL PITCH(COARSEST).............. 3DP (8.5 MODULE)
DIAMETRAL PITCH(FINEST)................ 20 DP (1.3 MODULE)
PITCH DIAMETER (MINIMUM) RATIO 1:1..... 6" (152MM)
DIAMETRAL PITCH (COARSEST)............. 3DP (8.5 MODULE)
DIAMETRAL PITCH (FINEST)............... 20 DP (1.3 MODULE)
FACE WIDTH (MINIMUM)................... 1-3/8" (35MM)
INDEX RANGE....................... 9-93 INCLUSIVE & MOST NO. S TO M175
PRESSURE ANGLES (DEGREES).............. 22,22.5,25 DEGREES
WORK SPINDLE TAPER HOLE (LARGE END).... 3-39/22" (100MM)
WORK SPINDLE TAPER PER FT.............. 39/64" (15MM)
DEPTH OF TAPER......................... 6"
SPINDLE HOLE DIAMETER THRU-BORE........ 2-7/16" (62MM)
SPINDLE NOSE TO MACHINE
CENTER................................. 1-1/2" TO 9" (3831-228.6MM)
CUTTER SPEEDS (FEET PER MIN)........... 98 TO 286
FEEDS (SECONDS PER TOOTH).............. 4.2 TO 69.2
MAIN MOTOR............................. 5HP 1800 RPM
HYDRAULIC PUMP MOTOR................... .75HP 1800RPM
COOLANT PUMP MOTOR..................... .5HP 3600RPM
FLOOR SPACE............................ 61.25"X84.25" (1556X2140MM)
MACHINE NET WEIGHT..................... 14,500 LBS (6.591 KGS)

Machine is equipped with the following
large assortment of change gears
misc tooling which goes with machine per inspection
manual for operating machine and electrical drawings (TBD)

contact us today as this machine will not last !!

This machine is equipped as photographed and as inspected. it comes with a
large assortment of change gears and tooling and looks to be Excellent
Mechanically. Machine will be gone through by our technicians , tested and
repaired as needed. Call us to discuss an inspection or visit our website
at WWW.PiselliEnt.comfor more photos and/ or information on other machine
options
