Gould & Eberhardt model 48HS heavy duty spur gear hobbing machine, 48" diameter capacity, 32" diameter table, 8" diam hob, 2.5 DP. no tailstock s/n 6145A10

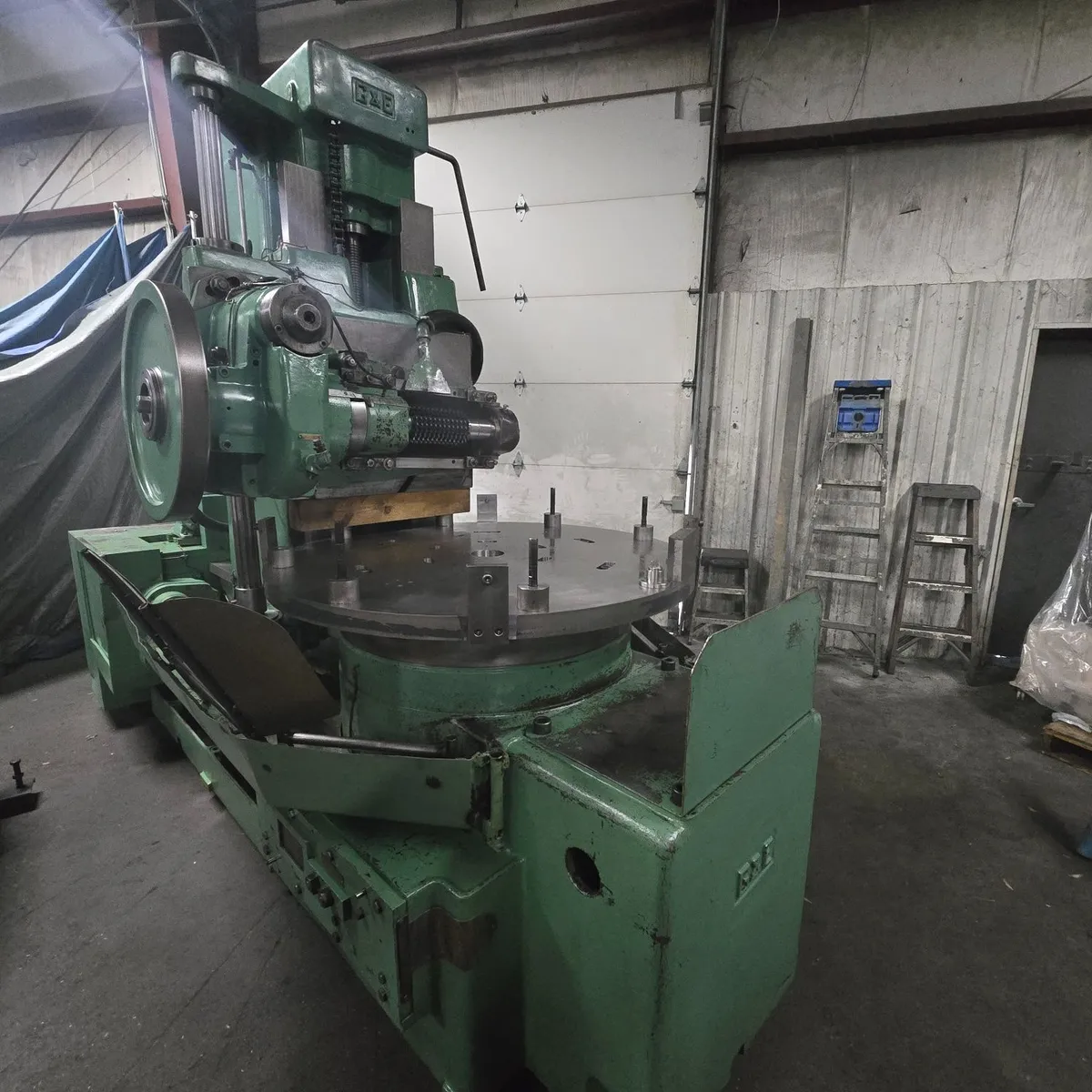

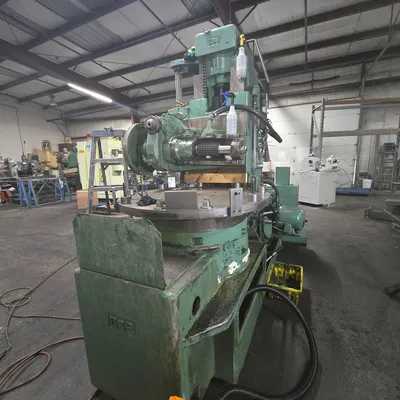

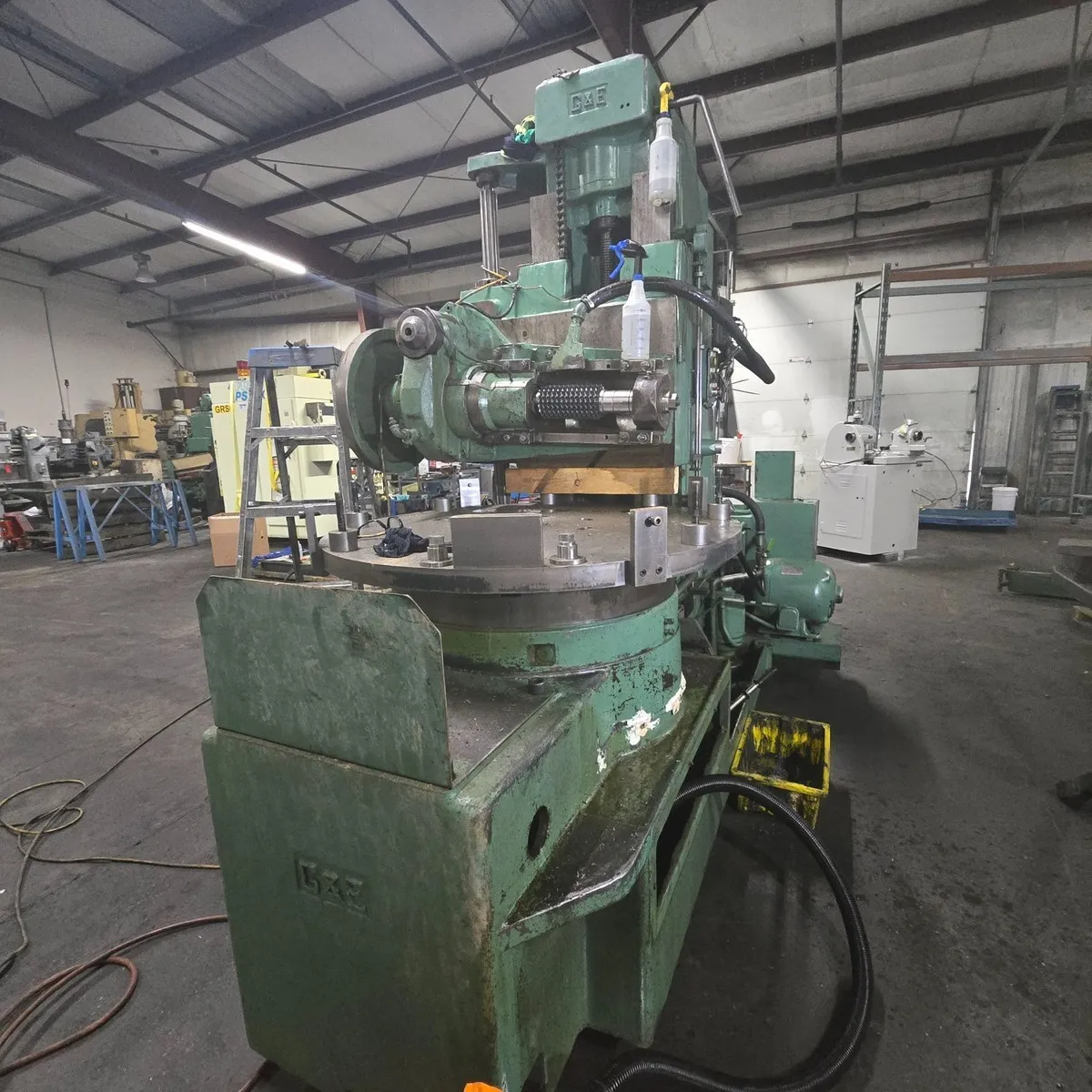

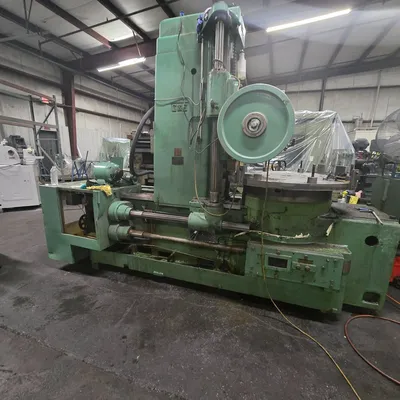

Gould & Eberhardt vertical Gear Hobber
Model 48HS
s/n 6145A10
good running condition in plant
machine specicifactions:
max diameter 48"
max face width 20"
Max travel of hob slide 25"
max pitch 2.5 DP
Max center distance 25"
Max Diameter Hob 8"
Table Diameter 32"
Table bore diameter 7"
machine weight 18,000 lbs
Machine is equipped with the following
Heavy duty spur cutting head w/ flywheel
extended face travel
large overlay table
pushbutton controls
20/N w/ 100 teeth in worm wheel
assortment of change gears
hob arbor 1-1/4" (TBD)
Machine can be inspected in our NC shop in good running condition
Inspect it in 0ur North Carolina plant. contact us to set up
an inspection at earliest convenience. or visit our website at
WWW.Pisellient.com or contact rich piselli at 704 609-0766
